System Sensor EA-CB User Manual
Ea-cb wiring barrier
D500-69-00 I56-2339-00
EA-CB Wiring Barrier
INSTALLATION INSTRUCTIONS
3825 Ohio Avenue, St. Charles, Illinois 60174
1-800-SENSOR2, FAX: 630-377-6495
www.systemsensor.com

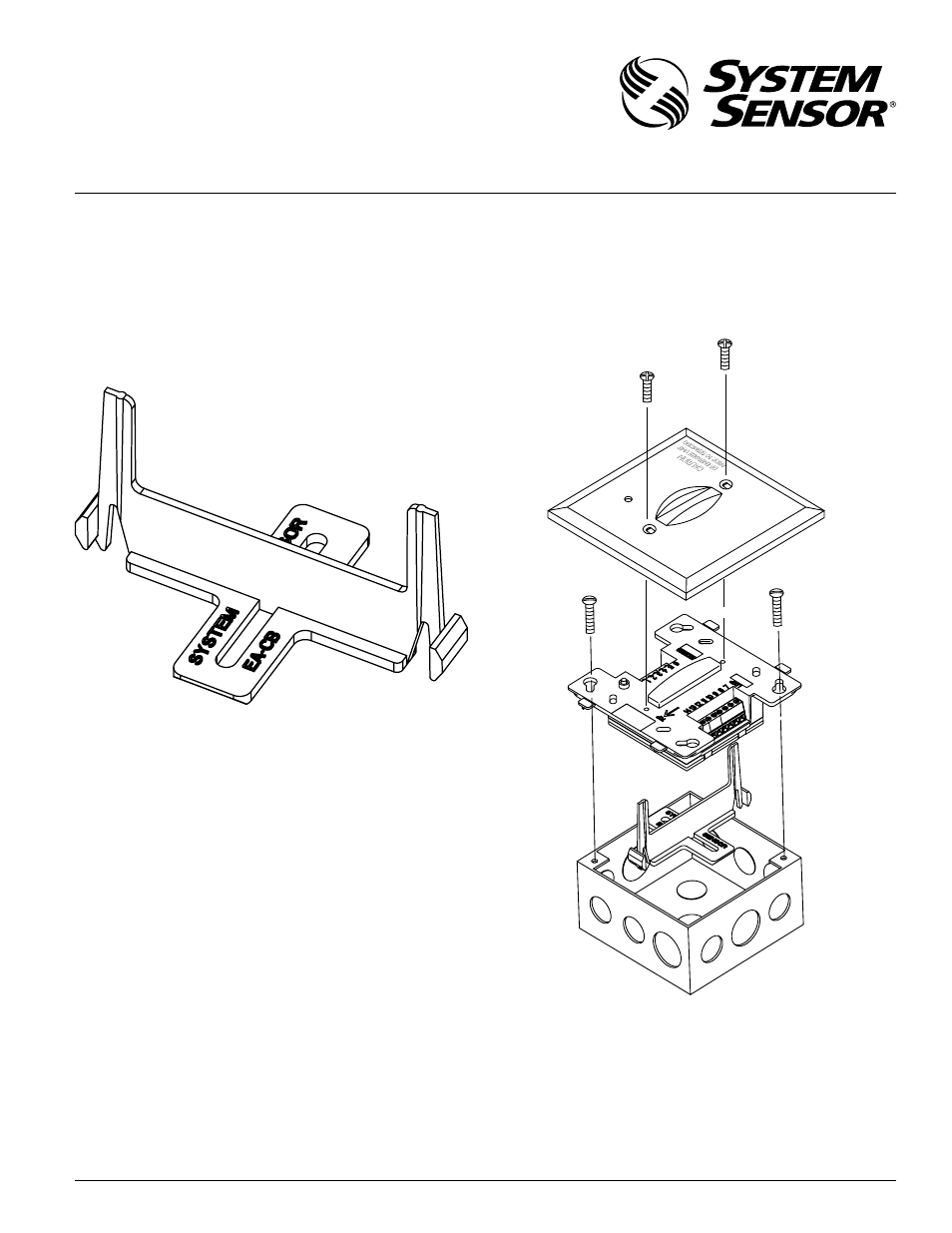

The EA-CB barrier is used to separate power limited and non-power limited
wiring in a junction box.
Prior to installing the barrier into the junction box, peel off the label which
says SIGNALING LOOP CIRCUIT TERMINALS ARE POWER LIMITED. OTHERS
ARE NOT. Affix this label over that portion of the label on the back of the
module which says ALL CIRCUITS ARE POWER LIMITED.
C0311-00
Additional instructions on the installation of this barrier can be found in the
installation manual for the module.
C0183-00
I56-2339-00
