System Sensor 2100TR Photoelectronic User Manual
System Sensor Equipment
D200-68-00
1
I56-1144-05R
2100TR Photoelectronic Smoke
Detector with Fixed Heat
INSTALLATION AND MAINTENANCE INSTRUCTIONS
3825 Ohio Avenue, St. Charles, Illinois 60174
1-800-SENSOR2, FAX: 630-377-6495
Specifications
Diameter:
5.5 inches (140 mm)
Height (including mounting bracket):
1.7 inches (43 mm)
Weight:
6.8 oz. (190 g)
Operating Temperature Range
32
°
to 100
°
F (0
°
to 38
°
C)
Operating Humidity Range:
10% to 93% Relative Humidity, Noncondensing
Latching Alarm:
Reset by momentary power interruption
Heat Sensor:
135
°
F Fixed Temperature Electronic Thermistor
Electrical Ratings
System Voltage (nominal):
12 or 24 VDC
Minimum:
8.5 VDC
Maximum:
35 VDC
Maximum Ripple Voltage:
30% of nom. Voltage (peak to peak)
Standby Current:
50
µ
A average, 100
µ
A maximum
Alarm Ratings:
25.5 mA minimum, 100 mA maximum
(Alarm current must be limited to 100mA by the control panel. If used, the RA400Z
Remote Annunciator operates within the specified detector alarm currents.)
Reset Voltage:
1.3 VDC minimum
Reset Time:
0.3 seconds maximum
Start-up Time:
30 seconds maximum (after 60 sec. reset)
EOL Relay:
A77-716B, 12/24 VDC
Remote Annunciator Output:
7 mA maximum
Auxiliary Relay Contact Ratings:
1A @ 30 VAC
Resistive Load:
1A @ 30 VDC
Special Considerations:
Only one detector can be used per zone.

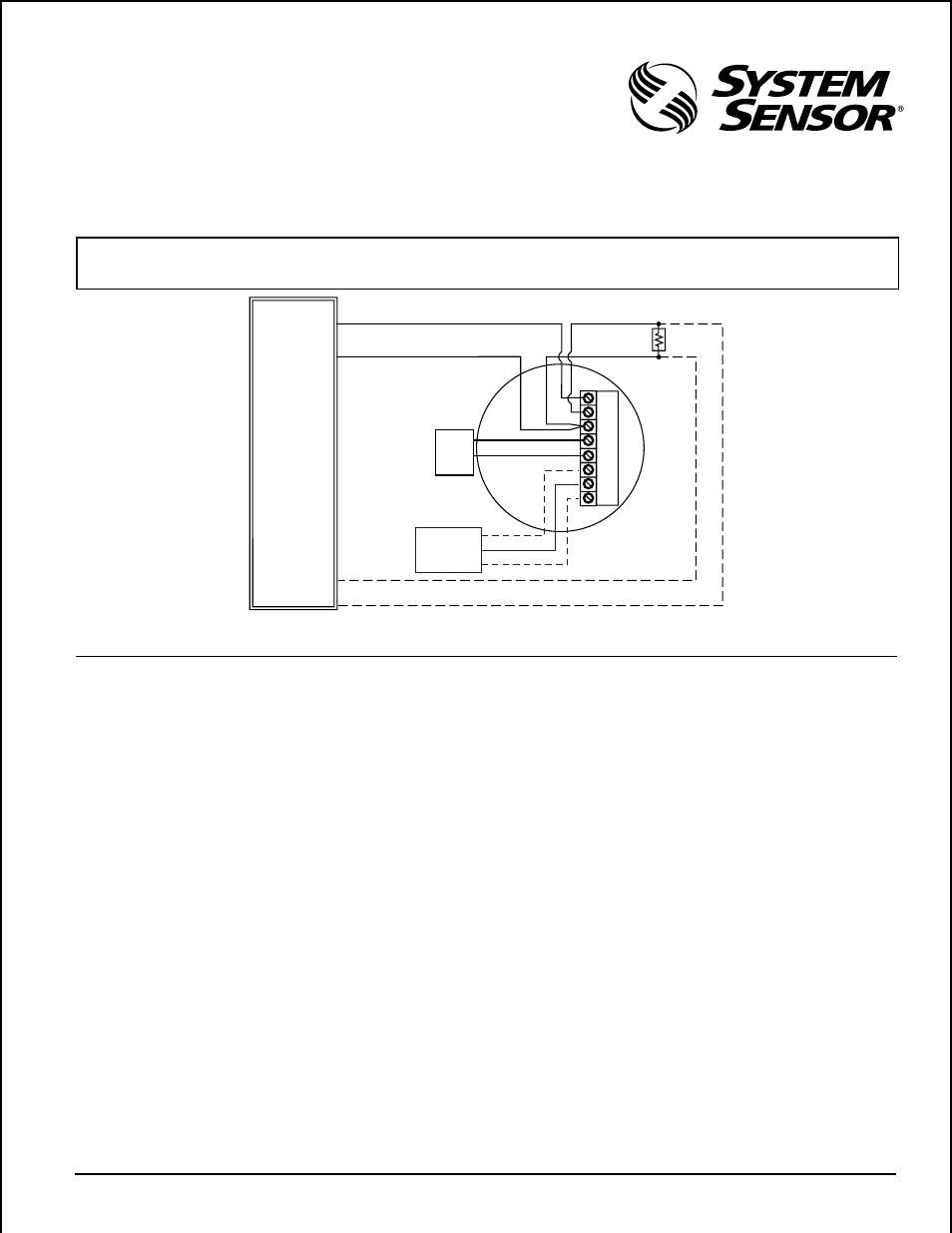

Figure 1. Wiring diagram for the 2100TR detector:
A78-2336-17
IMPORTANT: OBSERVE POLARITY
Polarity must be observed on the remote annunciator connections.
OPTIONAL CLASS A WIRING
EOL
+
+
–
A
+
A
-
NC
C
NO
RA400Z
REMOTE
ANNUNCIATOR
+
–
P
W
R
A
U
X
UL LISTED
COMPATIBLE
CONTROL
PANEL
INITIATING
LOOP
+
–
NOTE: ONLY ONE DETECTOR PER ZONE CAN BE USED.
(OPTIONAL)
RELEASING
DEVICE
NC
COMMON
NO
