System Sensor TR-HS, TRC-HS, TRW-HS and TRCW-HS User Manual
System Sensor Equipment
Installation Instructions for SpectrAlert Advance
Horn, Horn-Strobe, Strobe, Chime and Chime Strobe Trim Ring
Follow the instructions below for installing trim ring models TR-HS, TRW-HS, TRC-HS, and TRCW-
HS with the SpectrAlert Advance Series horn, horn-strobe, strobe, chime and chime strobe devices.
1
–

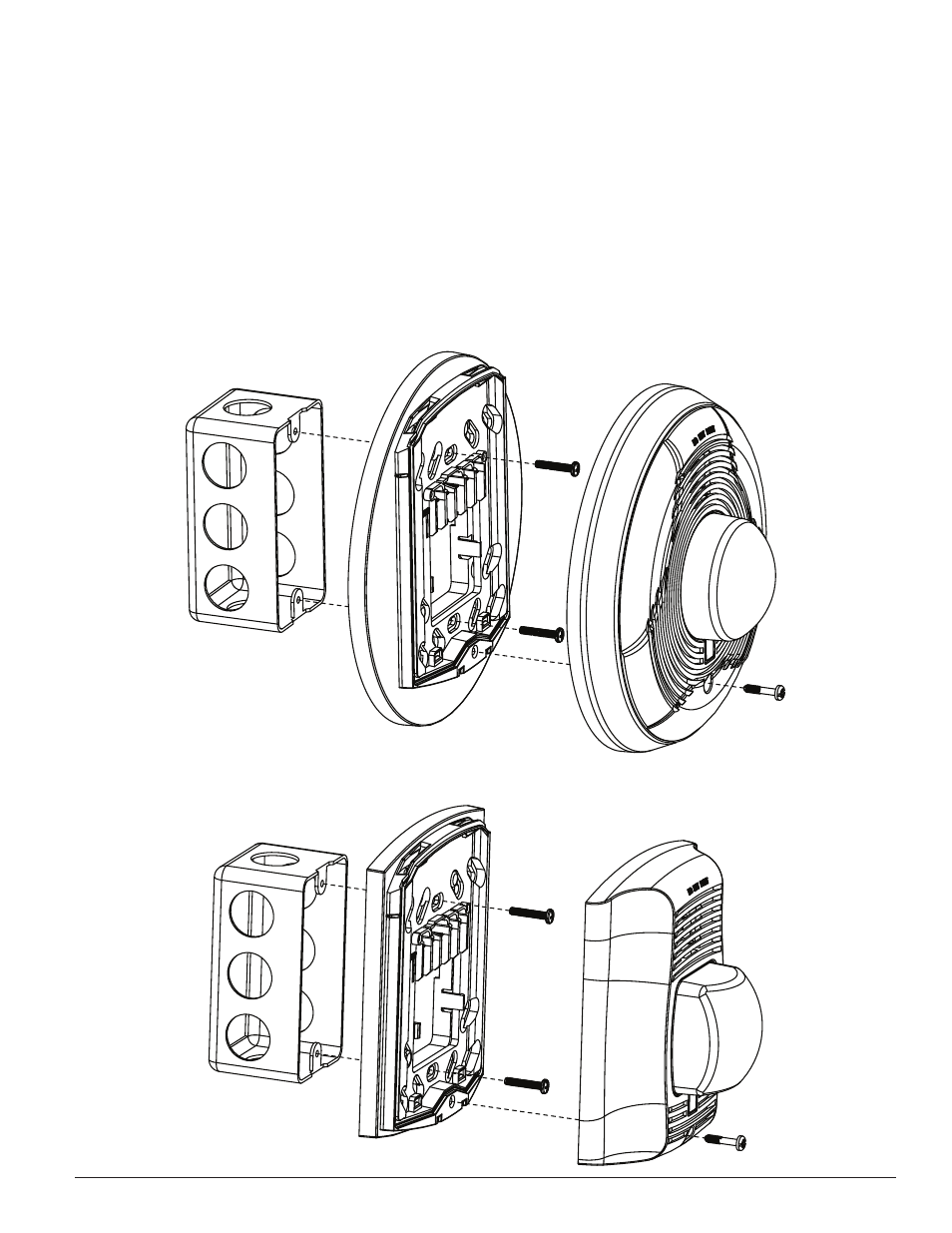

Align two screw holes on the SpectrAlert Advance mounting plate to the corresponding
screw holes on the trim ring (see diagram).
2
–
Align the two screw holes on the 4˝ x 4˝ x 1 1/2˝, Single gang, Double Gang or 4” octagon
back boxes with the screw holes on the mounting plate. Tighten the mounting plate to the
back box.
SS-110-002
I56-3300-000
I56-33
00-000
A0619-00
A0620-00
