Amana Bottom Mount Refrigerator - Manual (Page 60)

B136SPK1 ¼" Facia Front Enclosure Kit
RS1200001 60 November 1996

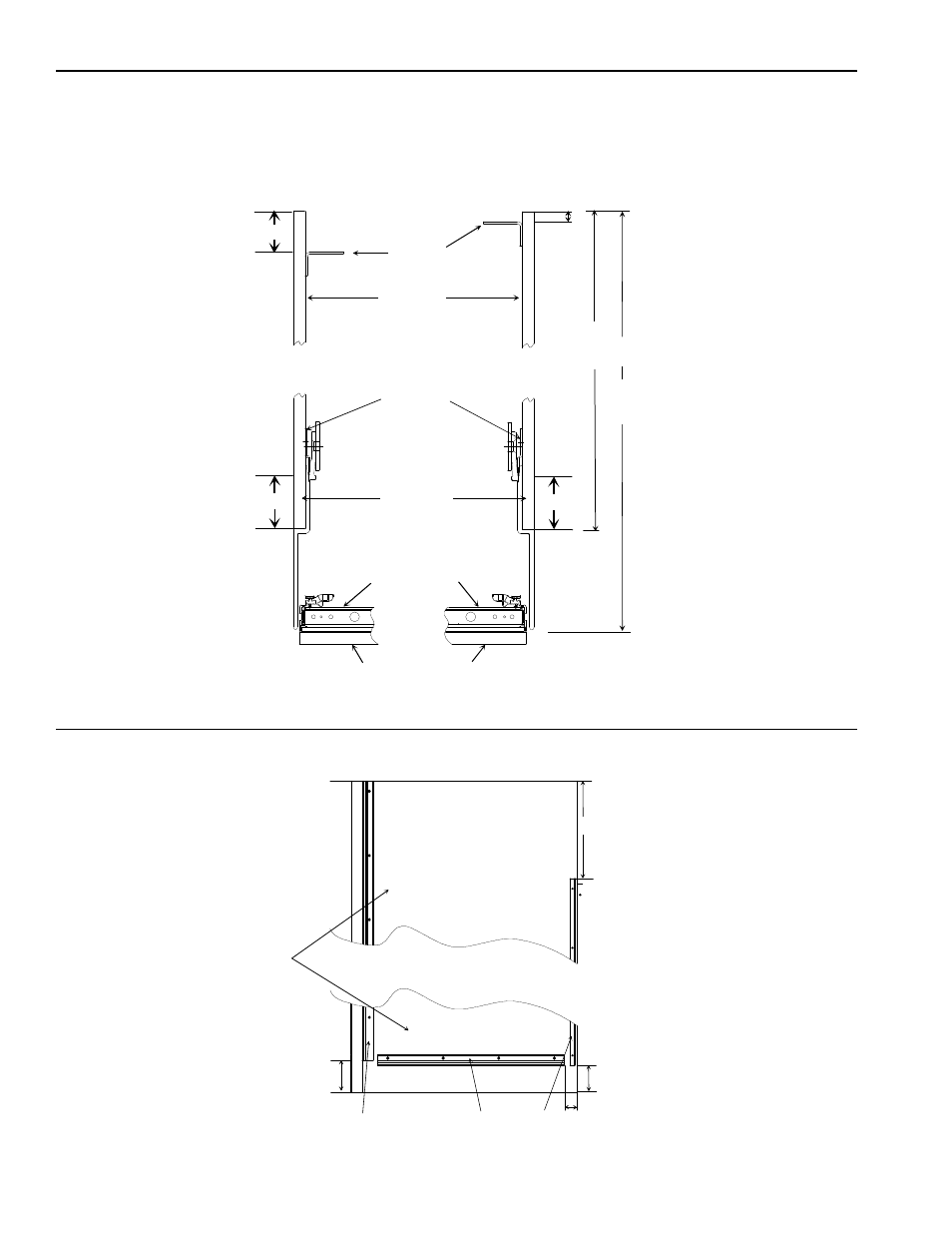

Location of Panel Brackets on Side Panels
.828
.993
.186
.993
1/4" Panel
L-Bracket
Z-Bracket
1/4" Panel
21.750
23.982
Refrigerator door
Refrigerator door panel
1/4" Minimum
panel depth
3/4"Minimum
panel depth
Top view Right
side Left
side
If cabinet depth is greater than 24", adjust panel size accordingly.
1.50
2.062
11.281
2.500
Front
panel
bracket
Bottom
panel
bracket L-Bracket
Side
panel
Side View
