Superwinch S4000 - 1,814 kgs/12V - Manual (Page 10)

53
58
61
54
55
57
59
60
62
63
19

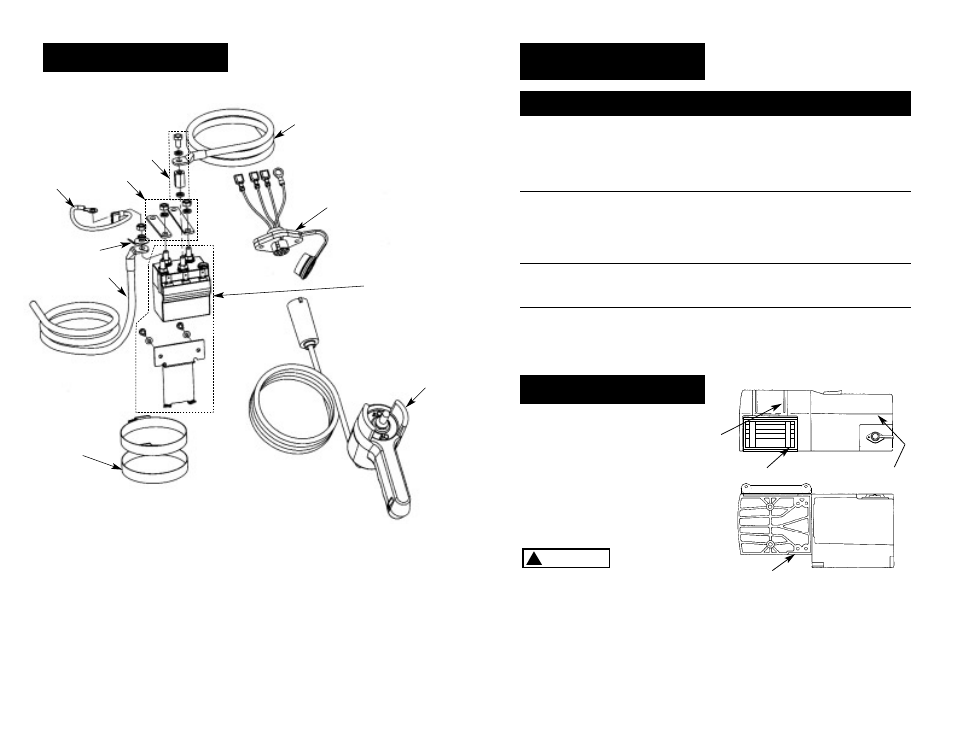

R E P L A C E M E N T
P A R T S L I S T
Reference
Number
Description Part Number Qty
TORQUE SPECIFICATIONS
Drum Support Plate 50-60 lb in
Screws
Hawse (Roller Fairlead) 45-55 lb in
Screws
Base Screws 65-75 lb in
Motor 35-40 lb in
TORQUE SPECIFICATIONS
Over torquing
could damage
your winch and void your warranty.
WARNING !
53 Leadwire spacer kit 89-24430 1
54 Buss bar kit 89-24431 1
55 Black 2 gage wire (-), S5000 12V 89-22635-61 1
Black 6 gage wire (-), S4000, S5000 24V 89-23292-38 1
57 Band clamp 89-14459 2
58 Red 2 gage wire (+), S5000 12V 89-22635-60 1
Red 6 gage wire (+), S4000, S5000 24V 89-23292-37 1
59 Socket 90-14140 1
60 Type 6 solenoid with bracket, 12V 89-24429 1
Type 6 solenoid with bracket, 24V 89-24467 1
61 Handheld remote control 90-33450-02 1
62 Ground jumper wire 18 gage 89-23283 1
63 Terminal adapter 89-14458 1
18
ROLLER FAIRLEAD
SCREWS MOTOR
SCREWS
DRUM SUPPORT
PLATE SCREWS
DRUM SUPPORT
PLATE SCREWS
S O L E N O I D A S S E M B LY
