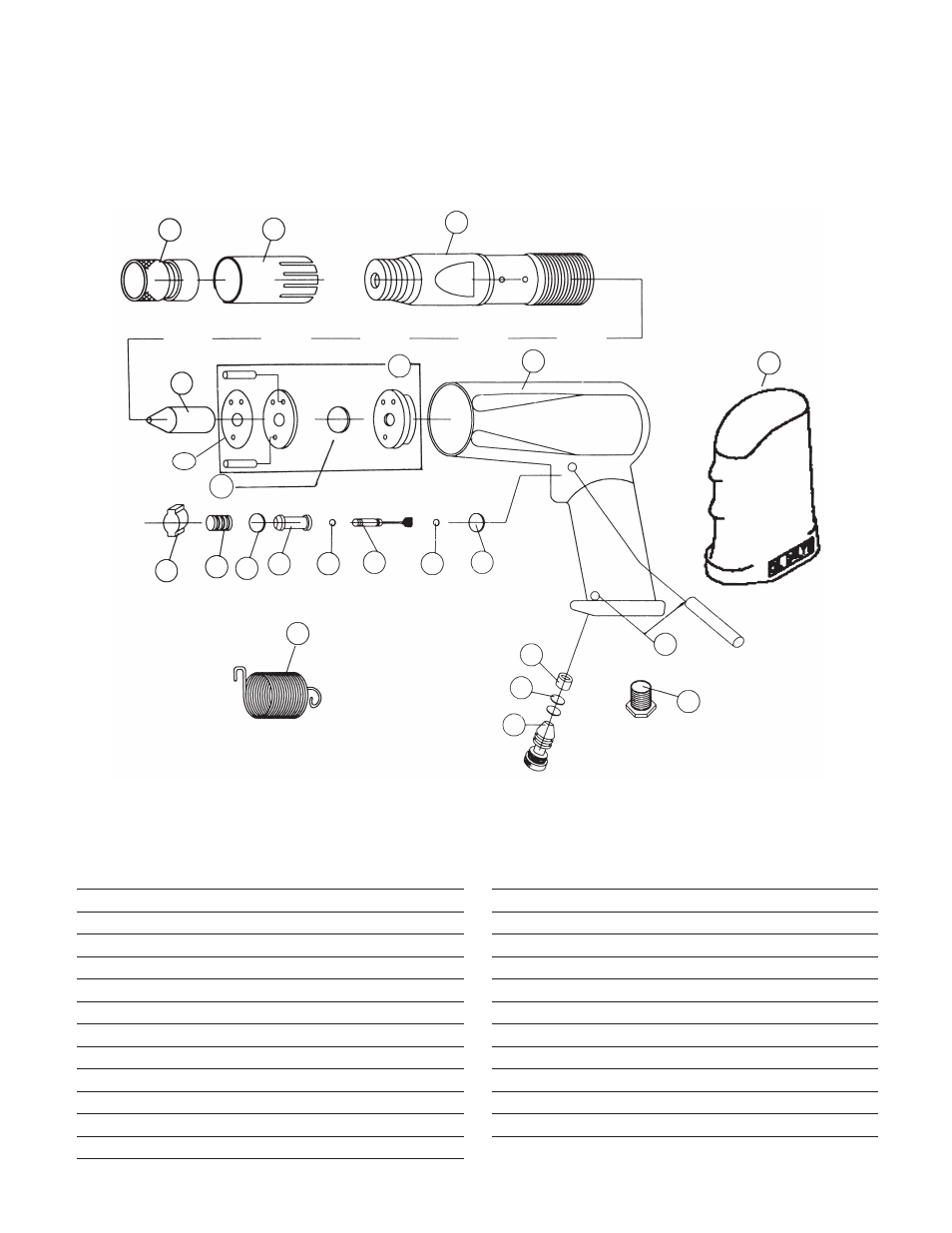

SX243: Parts Breakdown & Operating Manual 3 Rev. 09/20/11
SX243
Heavy duty long barrel air Hammer
witH quick cHange cHiSel retainer
REF. PART DESCRIPTION QTY.
NO. NO.
1 RS243001 Housing (incl. #2-14, 22) 1
2 RS848002 Roll Pin (3 x 18mm) 2
3 RS848003 Inlet Bushing 1
4 RS848004 Cap 1
5 RS848005 O-Ring (4.9 x 2.2mm) 2
6 RS848006 Regulator 1
7 RS848007 O-Ring (11 x 2.4mm) 1
8 RS848008V Valve Stem 1
9 RS848009 O-Ring (3.8 x 1.9mm) 1
10 RS848010 O-Ring (3.5 x 1.5mm) 1
11 RS848011 Valve Bushing 1
12 RS848012 O-Ring (12 x 2mm) 1
REF. PART DESCRIPTION QTY.
NO. NO.
13 RS848013 Spring 1
14 RS848014 Trigger Button 1
15-1 RS848015S-1 Metal Disk Plate 1
15 RS171815 Valve Block Assembly 1
17 RS171816 Valve Disk 1
20 RS848019 Piston 1
21 RS848320 Cylinder 1
22 RS248022B Comfort Grip 1
23 RS87301 Retainer Spring (optional)
24 RS848023 Exhaust Deflector 1
25 RS248025 Quick Change Chuck 1
21
24 25
20
15
1 22
3
2
6
5
4
23
14
13 12
11 10 8 9 7
15-1
17
