1" drive impact wrench with 6" entended anvil, Sx556-6 – Sunex Tools SX556-6 User Manual
Page 4
REF. PART
NO. NO.
DESCRIPTION
QTY.
1 RS55601 Screw
4
2
RS55602
Lock Washer
8
3
Oil Seal (Incl. w/ #5)
1
4
RS55604
Hex Socket Head Set Screw
1
5
RS55605
Front Casing Assy. (Incl. #3, 5, 9)
1
6
RS55606
Lock Washer
4
7
RS55607
Hex Socket Cap Screw
4
8
RS55608
Side Handle
1
9
Anvil Bushing (Incl. w/ #5)
1
10
RS55610
Front Washer
1
11 RS55611 O-Ring
1
12
RS55612
Retainer Ring
1
13
RS113713
Extended Anvil (Incl. #12-14)
1
14 RS55614 O-Ring
1
15
RS55615
Hammer Cage
1
16 RS55616 Hammer
1
17
RS55617
Hammer Cam
1
18 RS55618 Spacer
1
19
RS55619
Front Cylinder Gasket
1
20
RS55620
Motor Housing Assy. (Incl. #20, 22, 23, 26, 27) 1
21
RS55621
All-Metal Locking Nut
4
22
Bearing (Incl. w/ #20) 1
23
Front Plate (Incl. w/ #20) 1
24 RS55624 Rotor
1
25
RS55625
Vane (pack of 5)
1
26
Spring-type Straight Pin (Incl. w/ #20) 2
27
Cylinder (Incl. w/ #20) 1
28
RS55628
Spring-type Straight Pin
1
REF. PART
NO. NO.
DESCRIPTION
QTY.
29
RS55629
Rear Plate
1
30 RS55630 Bearing
1
31
RS55631
Rear Cylinder Gasket
1
32
RS55632
Rear Casing Assy. (Incl. #32, 37, 45, 46) 1
33
RS55633
Hex Socket Cap Screw
4
34
RS55634
Spring-type Straight Pin
1
35
RS55635
Spring-type Straight Pin
1
36 RS55636 Trigger
1
37
Reverse Valve Bushing (Incl. w/ #32)
1
38
RS55638
Reverse Valve Assembly (Incl. #38-41)
1
39
Steel Ball (Incl. w/ #38)
1
40
Spring (Incl. w/ #38)
1
41
Spring-type Straight Pin (Incl. w/ #38)
1
42
RS55642
Spring-type Straight Pin
1
43 RS55643 O-Ring
1
44 RS55644 Screw
1
45
Throttle Valve Bushing (Incl. w/ #32)
1
46
Rubber Seal (Incl. w/ #32)
1
47
RS55647
Throttle Valve Plunger
1
48
RS55648
Steel Ball
1
49 RS55649 Spring
1
50 RS55650 O-Ring
1
51
RS55651
Air Inlet Connector
1
52
RS55652
Rubber Shield
1
53
RS55653
Flat Washer
8
Also available: RS556TK Tune-Up Kit (Incl. #3, 11, 12, 14, 19, 25
(5), 31, 43, 46, 50)

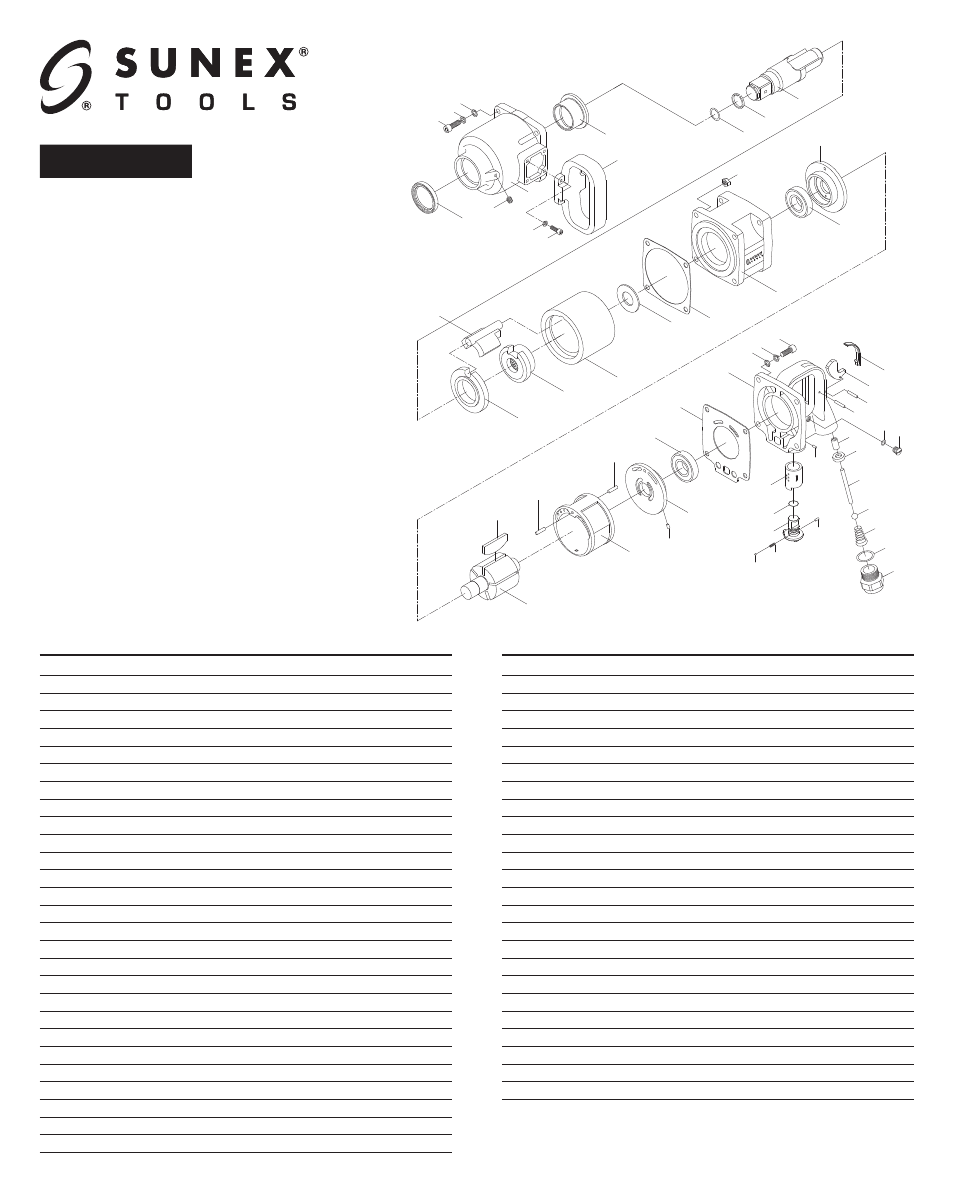

1" DRIVE IMPACT WRENCH
WITH 6" ENTENDED ANVIL
SX556-6
3
1
2
4
5
9
8
6
7
14
12
13
25
24
23
22
20
19
33
2
36
35
34
43
44
45
46
47
48
49
50
51
39
40
41
38
37
32
31
30
29
28
26
27
26
21
42
11
16
17
15
10
18
53
53
52
SX556-6: Parts Breakdown & Operating Manual
4
Rev. 5/7/12
