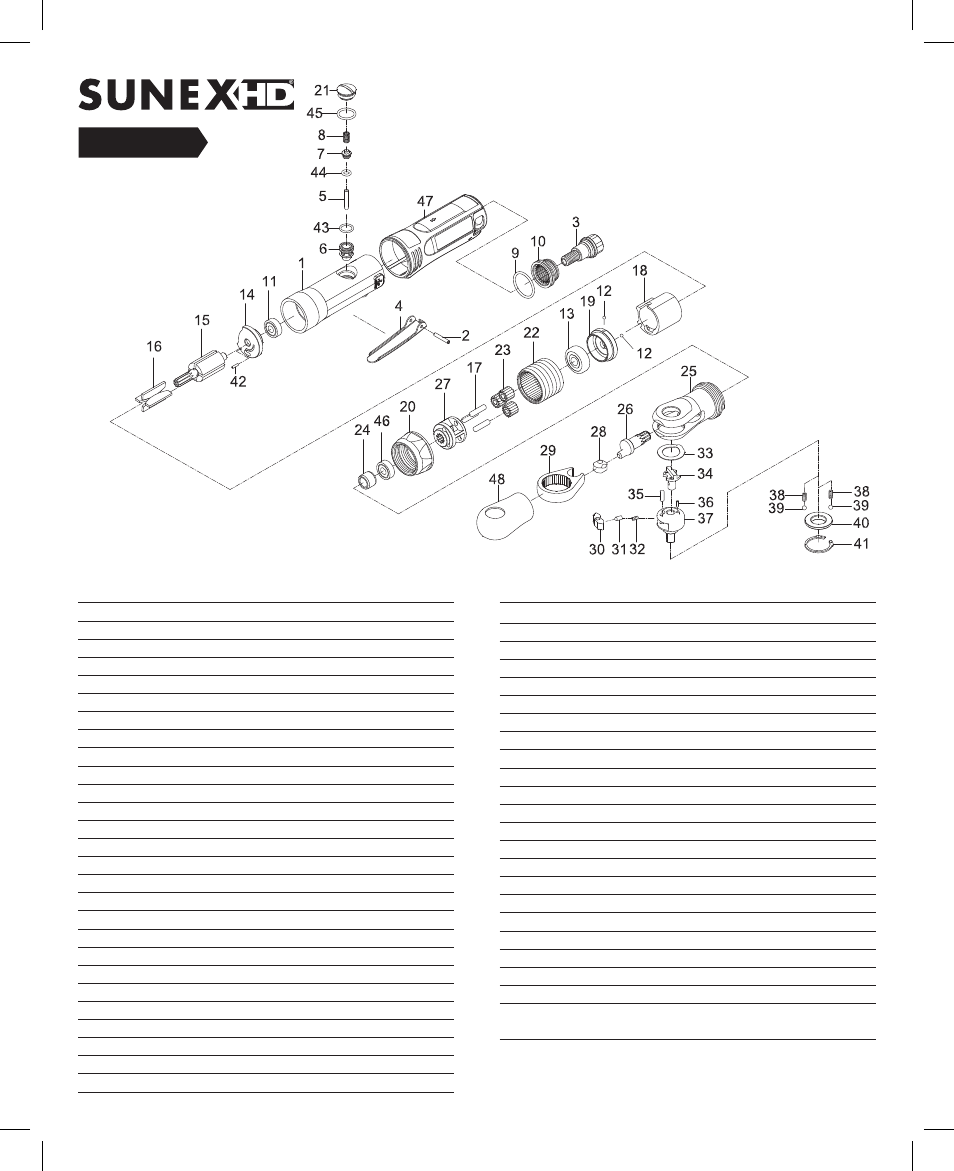

REF. PART
NO. NO. DESCRIPTION QTY.
1 RS382501 Housing 1
2 RS78741 Spring Pin (3 x 18L) 1
3 RS382503 Air Inlet 1
4 RS382504 Throttle Lever 1
5 RS382505 Valve Pin 1
6 RS382506 Valve 1
7 RS382507 Throttle Valve 1
8 RS382508 Spring 1
9 RS188035 O-Ring (22.8 x 2) 1
10 RS382510 Deflector 1
11 RS30516 Ball Bearing (696ZZ) 1
12 Steel Ball (3/32") (incl. w/ #19) 2
13 RS382513 Ball Bearing (627ZZ) 1
14 RS382514 Rear End Plate 1
15 RS382515 Rotor 1
16 RS382516 Vane (pack of 4) 1
17 Idler Gear Pin (incl. w/ #27) 3
18 RS382518 Cylinder 1
19 RS382519 Front End Plate (incl. (2) #12) 1
20 RS382520 Nut 1
21 RS382521 Valve Plug 1
22 RS382522 Thread Ring Gear 1
23 RS382523 Idler Gear 3
24 RS382524 Bushing 1
25 RS382525 Ratchet Housing 1
26 RS382526 Crank Shaft 1
27 RS382527 Idler Gear Plate (incl. (3) #17) 1
REF. PART
NO. NO. DESCRIPTION QTY.
28 RS382528 Drive Bushing 1
29 RS382529 Yoke 1
30 * Ratchet Pawl 1
31 * Spring Cap 1
32 * Spring 1
33 * Washer 1
34 * Reverse Button 1
35 * Pin (3.3 x 8.8) 1
36 * Spring Pin (2 x 5L) 1
37 * Ratchet Anvil (1/4") 1
38 * Spring 2
39 * Steel Ball (1/8") 2
40 * Thrust Washer 1
41 * Retainer Ring 1
42 RS43018 Spring Pin (1.5 x 6L) 1
43 RS382543 O-Ring (10 x 1.5) 1
44 RS78707 O-Ring (3.8 x 1.9) 1
45 RS382545 O-Ring (14 x 1.8) 1
46 RS74633 Ball Bearing (689ZZ) 1
47 RS382547 Rubber Grip 1
48 RS382548 Rubber Boot 1
* Available only as a Head Kit part number RSRHK3825
(including #30-41)
Only reference numbers identified by part number are
available separately.
1/4" DRIVE
AIR RATCHET
SX3825
SX3825: Parts Breakdown & Operating Manual 4 10/19/10
