Sunex Tools SX3835 - Manual (Page 4)

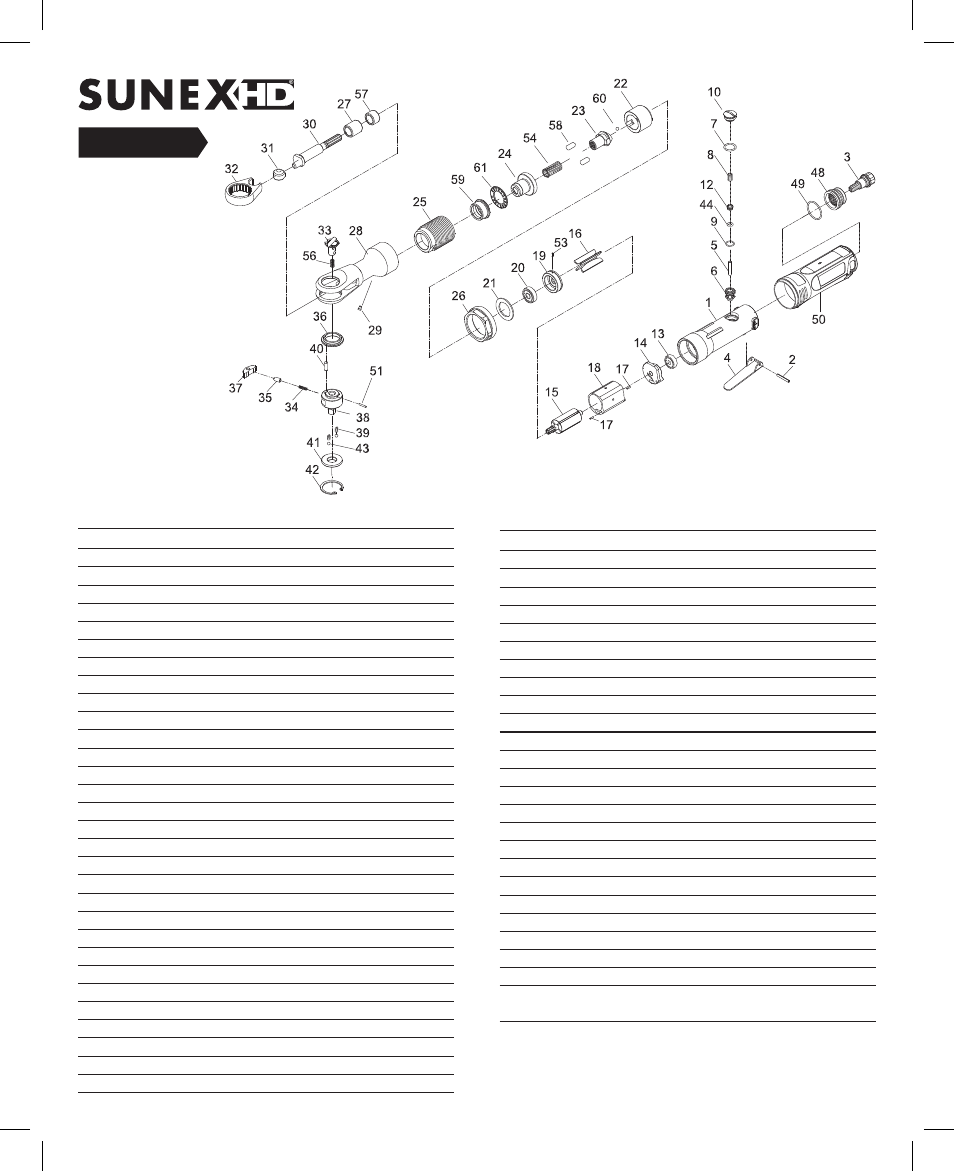

REF. PART
NO. NO. DESCRIPTION QTY.
1 RS383001 Housing 1
2 RS2871R02 Spring Pin (3 x 22L) 1
3 RS382503 Air Inlet 1
4 RS383004 Throttle Lever 1
5 RS383005 Throttle Valve 1
6 RS383006 Bushing 1
7 RS382545 O-Ring (14 x 1.8) 1
8 RS383008 Spring 1
9 RS382543 O-Ring (10 x 1.5) 1
10 RS382521 Valve Plug 1
12 RS383012 Throttle Valve 1
13 RS30516 Ball Bearing (696ZZ) 1
14 RS383514 Rear End Plate 1
15 RS383515 Rotor 1
16 RS383016 Rotor Blade 4
17 RS43018 Spring Pin (1.5 x 6L) 2
18 RS383518 Cylinder 1
19 RS383519 Front End Plate 1
20 RS30524 Ball Bearing (608ZZ) 1
21 RS383521 Washer 1
22 RS383522 Mechanism Housing 1
23 RS383523 Mechanism Anvil 1
24 RS383524 Mechanism Cover 1
25 RS383525 Coupling Sleeve 1
26 RS383526 Coupling Nut 1
27 RS383527 Bushing 1
28 RS383528 Ratchet Housing (incl. #29) 1
29 RS433526 Oil Cap (1/8") 1
30 RS383530 Crank Shaft 1
31 RS383531 Drive Bushing 1
32 RS383032 Yoke 1
REF. PART
NO. NO. DESCRIPTION QTY.
33 * Reverse Button 1
34 * Spring 1
35 * Lock Pin 1
36 * Washer 1
37 * Ratchet Pawl 1
38 * Ratchet Anvil (3/8") 1
39 * Spring 2
40 * Pin (4.5 x 12.7L) 1
41 * Thrust Washer 1
42 * Retainer Ring (RTW-31.5) 1
43 * Steel Ball (5/32") 2
44 RS78707 O-Ring (3.8 x 1.9) 1
48 RS383048 Deflector 1
49 RS383011 O-Ring (26.7 x 1.78) 1
50 RS383049 Grip 1
51 * Pin 1
53 RS188031 Spring Pin (2 x 5L) 1
54 RS383554 Spring 1
56 * Spring 1
57 RS383027 Needle Bearing 1
58 RS383558 Pin (6 x 11.8L) 2
59 RS383559 Bushing 1
60 RS383560 Steel Ball (3/16") 1
61 RS383561 Thrust Bearing 1
* Available only as a Head Kit part number RSRHK3835
(including #33-43, 51, 56)
Only reference numbers identified by part number are
available separately.
3/8" DRIVE
AIR IMPACT
RATCHET
SX3835
SX3835: Parts Breakdown & Operating Manual 4 Rev. 12/09/10
