ZB2430 User’s Manual - v1.6
S E R I A L I N T E R F A C E
www.aerocomm.com
S E R I A L I N T E R F A C E B A U D R A T E
In order for the OEM Host and a transceiver to communicate over the serial interface they need to have the same
serial data rate. This value determines the baud rate used for communicating over the serial interface to a transceiver.
For a baud rate to be valid, the calculated baud rate must be within ±3% of the OEM Host baud rate.

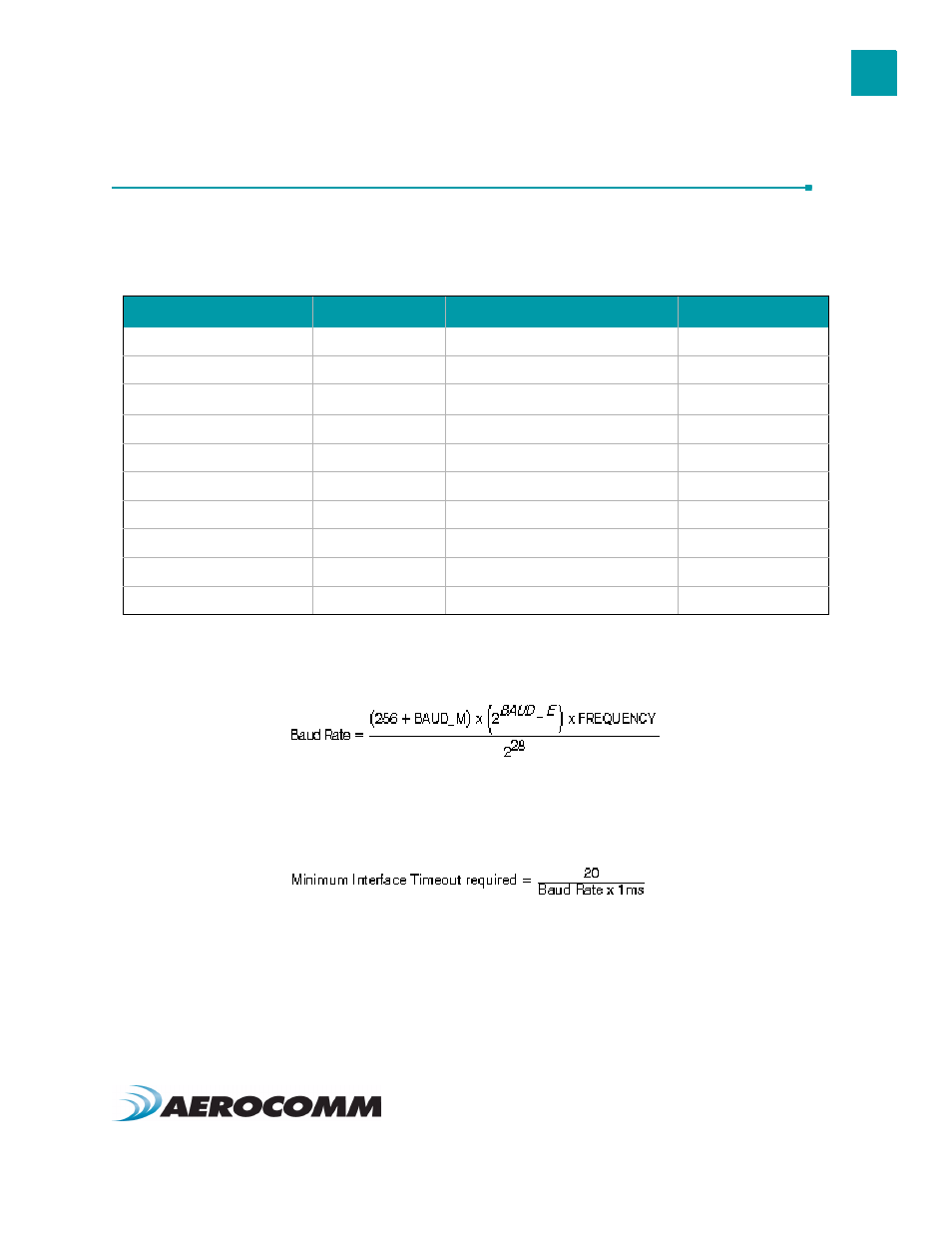

For baud rates other than those shown in Table 5 the following equations can be used:
Where:
FREQUENCY = 32 MHz
BAUD_M = EEPROM Address 0x43
BAUD_E = EEPROM Address 0x44
T a b l e 5 : B a u d R a t e / I n t e r f a c e T i m e o u t
Desired Baud Rate Baud (0x42) Minium Interface Timeout 1 (0x58)
1. Interface timeout = 1 ms per increment
Stop Bit Delay (0x3F)
115,200 0x08 0x02 0x02
57,600 0x07 0x02 0x02
38,400 2
2. Default baud rate
0x06 0x02 0x02
31,250 0x05 0x02 0x02
19,200 0x04 0x02 0x02
9,600 0x03 0x03 0x03
4,800 0x02 0x05 0x05
2,400 0x01 0x09 0x09
1,200 0x00 0x16 0x16
Non-standard 0xE3 Use equations below Use equations below
