LiftMaster LA400 Residential DC Linear Gate Operator - Manual (Page 27)

Watertight Connector Nut
Watertight Connector Nut
Operator Cable
Extension Cable
Terminal Block
Brown
Extension Cable Operator Cable
Green
White
Yellow
Blue
Red
Brown
Green
White
Yellow
Blue
Red
Special
Connector Terminal Block
Connector
Extension Cable Operator Cable
Brown Brown
Green Green
White White
Yellow Yellow
Blue
Blue
Red Red
26

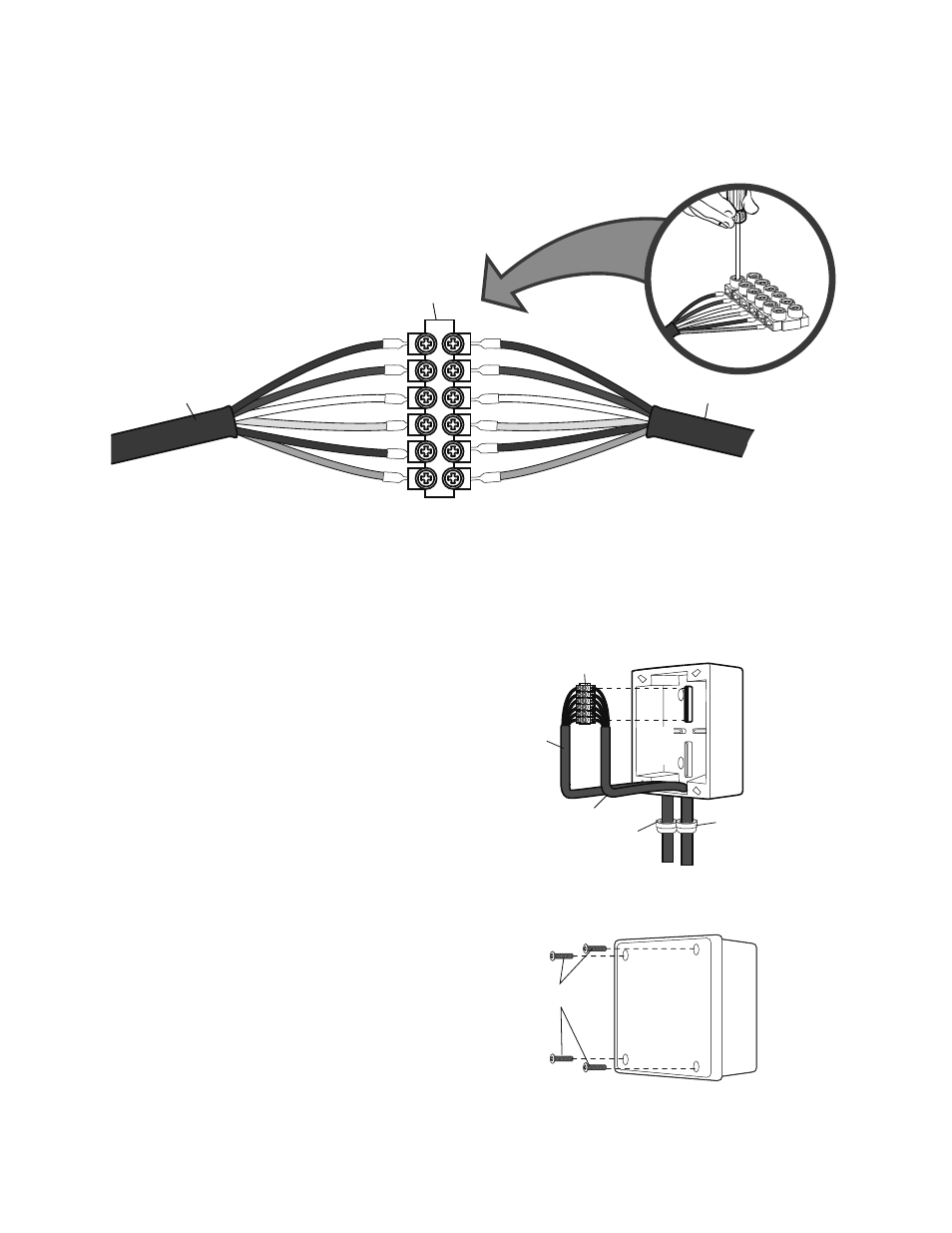

Insert wires from extension cable and operator cable into terminal block
connector.
Put wires inside of junction box.
Secure operator and extension cables with watertight connector nut.
Reinstall cover.
WIRING
» JUNCTION BOX (MODEL LA400-S ONLY)
7
8
9
10
7
8
9
Screws (4) Screws (4)
10
