LiftMaster LA400 Residential DC Linear Gate Operator - Manual (Page 19)

18
Knock Outs
Knock Outs
Knock Outs
Knock Outs

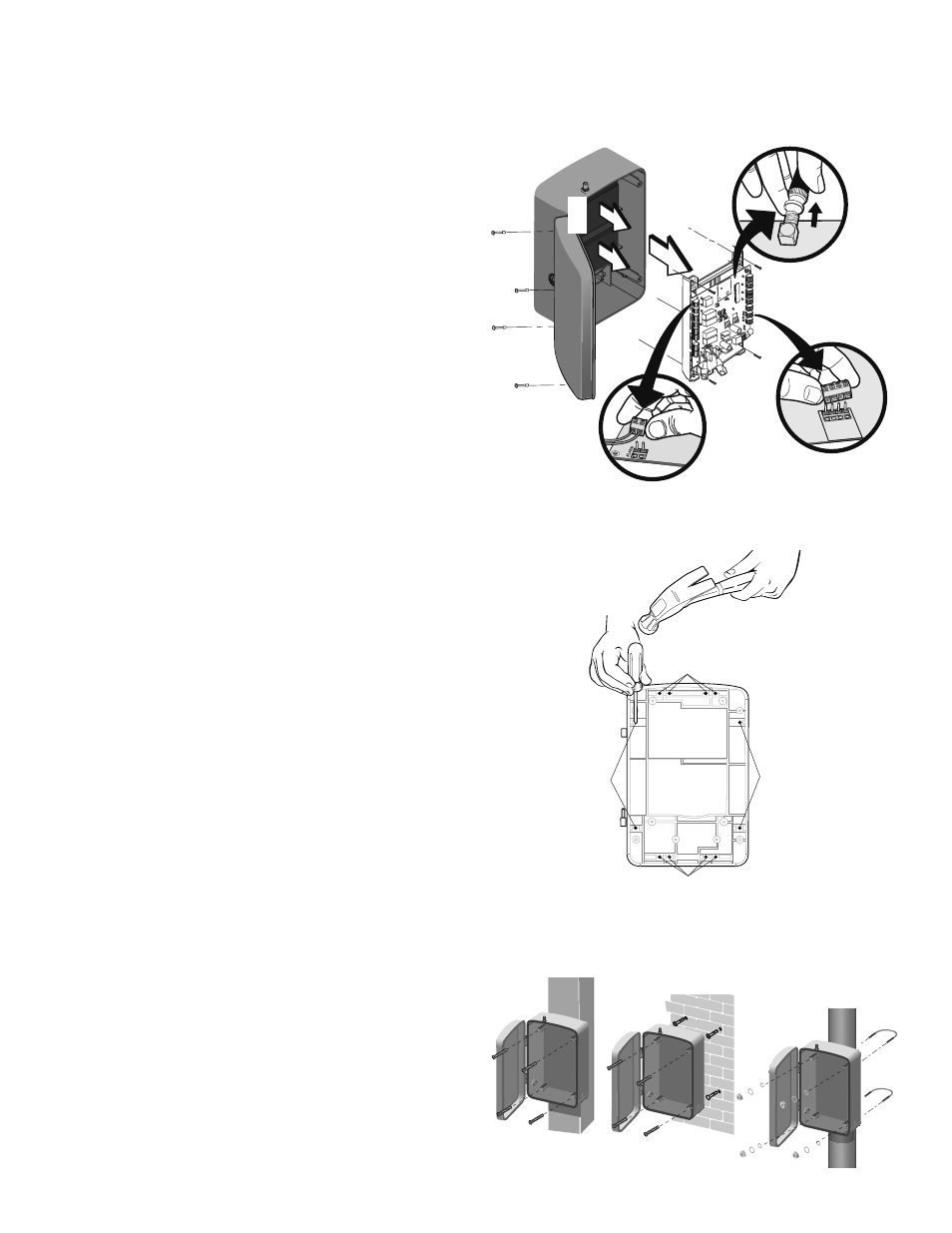

MOUNT THE CONTROL BOX
The control box MUST be mounted within 5 feet (1.5 m) of the gate operator. Mount
the control box as high as possible for best radio reception.
Remove the control board.
Remove batteries and set aside.
Disconnect the reset button, alarm, and coaxial connector.
Select mounting holes and knock out using a screwdriver and hammer.
Remove screws and open the control box.
Loosen screws to remove the control board and mounting bracket.
1
3
4
5
2
6
INSTALLATION
» STANDARD CONTROL BOX
7
A.
B.
C.
7
Secure the control box to mounting surface using the appropriate hardware
(not provided).
A. Post
B. Wall
C. Column
6
Coaxial Connector
Reset Button Connections
Alarm
2
2
2
1
3
4 5
