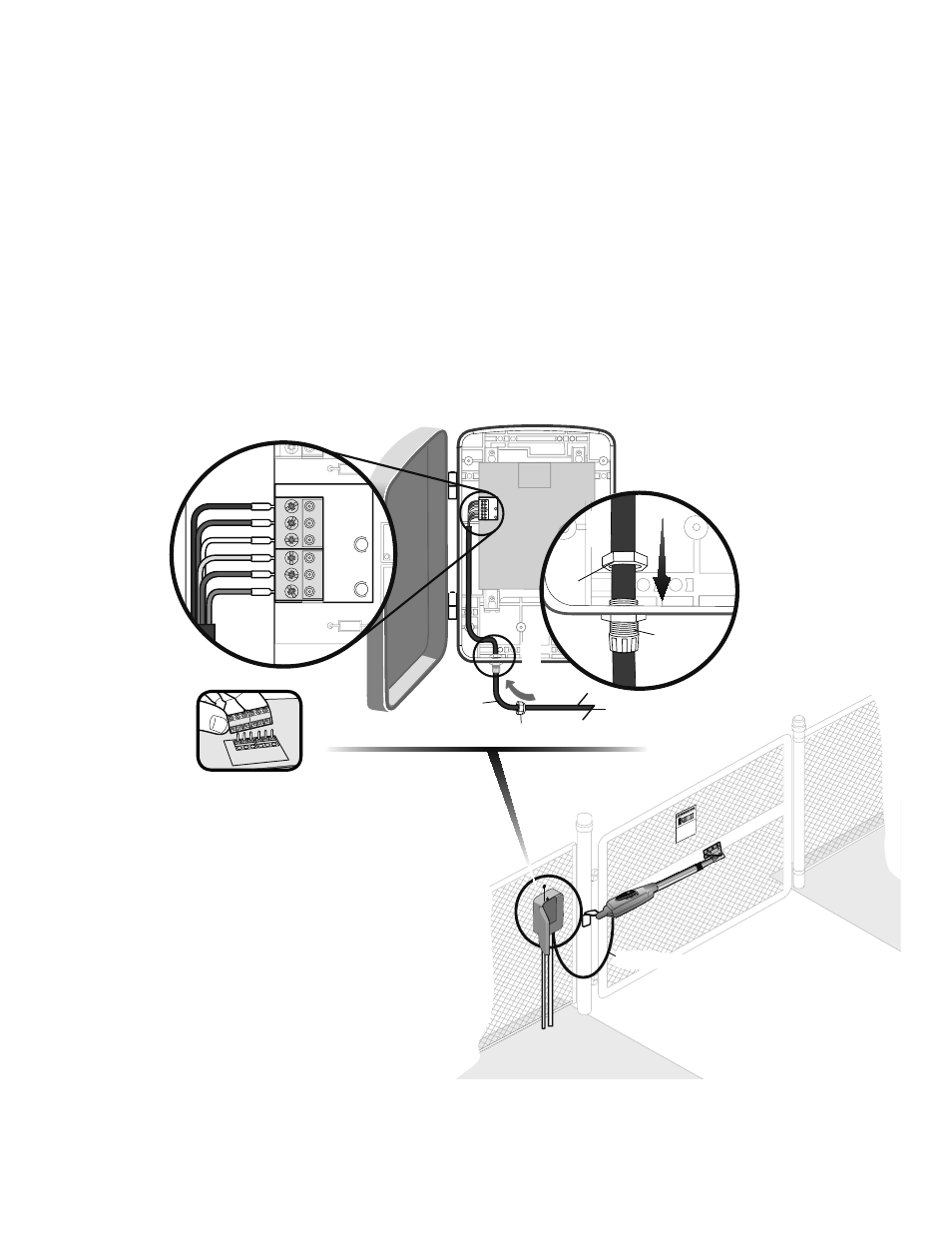

Insert the operator cable through the watertight connector mounted in the
bottom of the control box.
Select hole in bottom of the control box to be used for the operator cable.
CONNECT THE GATE OPERATOR (GATE 1) TO THE
CONTROL BOX
Insert the watertight connector into the bottom of the control box and tighten
with nut.
1
2
3
WIRING
» CONNECT THE GATE OPERATOR (GATE 1) TO THE CONTROL BOX
Operator Cable
Watertight Connector Nut
If installing one operator, proceed to page 27.
If installing two operators, continue to the next page.
Extend the operator cable and wires to the Gate 1 connector and connect as
shown.
Tighten watertight connector nut.
4
5
Terminal blocks can be
removed to simplify wiring.
22
Watertight
Connector
Nut
Operator Cable
1
2
3
4
5
