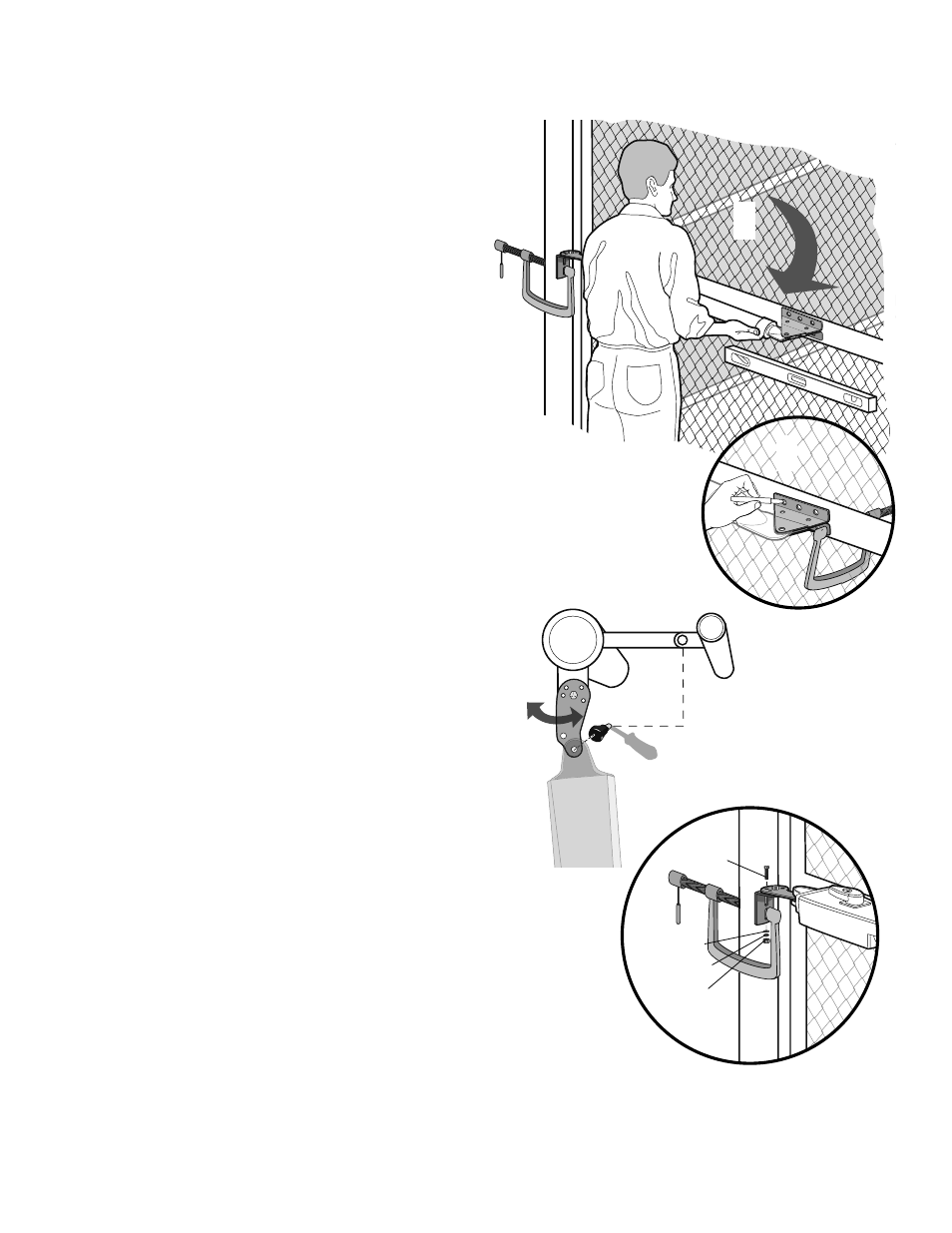

POSITION GATE OPERATOR ON GATE
NOTE: The post bracket assembly can be mounted several places on the gate post.
Refer to page 11 for mounting options.
Open the gate to desired open position (no greater than 100°) and hold
operator against gate.
Place the operator arm against gate post at the desired position. Temporarily
secure gate post bracket with clamp. The gate operator (arm) must be
level.
2
1
2
4
INSTALLATION
» POSITION GATE OPERATOR ON GATE
5
Hex Bolt 3/8"
Lock Washer
Nut
Washer
Align the Pull-to-Open bracket to a position as CLOSE AS POSSIBLE above
the screwdriver or dowel rod.
4
Insert hex bolt through Pull-to-Open bracket and post bracket and secure with
washer, lock washer and nut.
5
7" (18 cm)
7" (18 cm)
3
Mark mounting holes on gate for reference. Temporarily secure the gate
bracket using a clamp.
3
