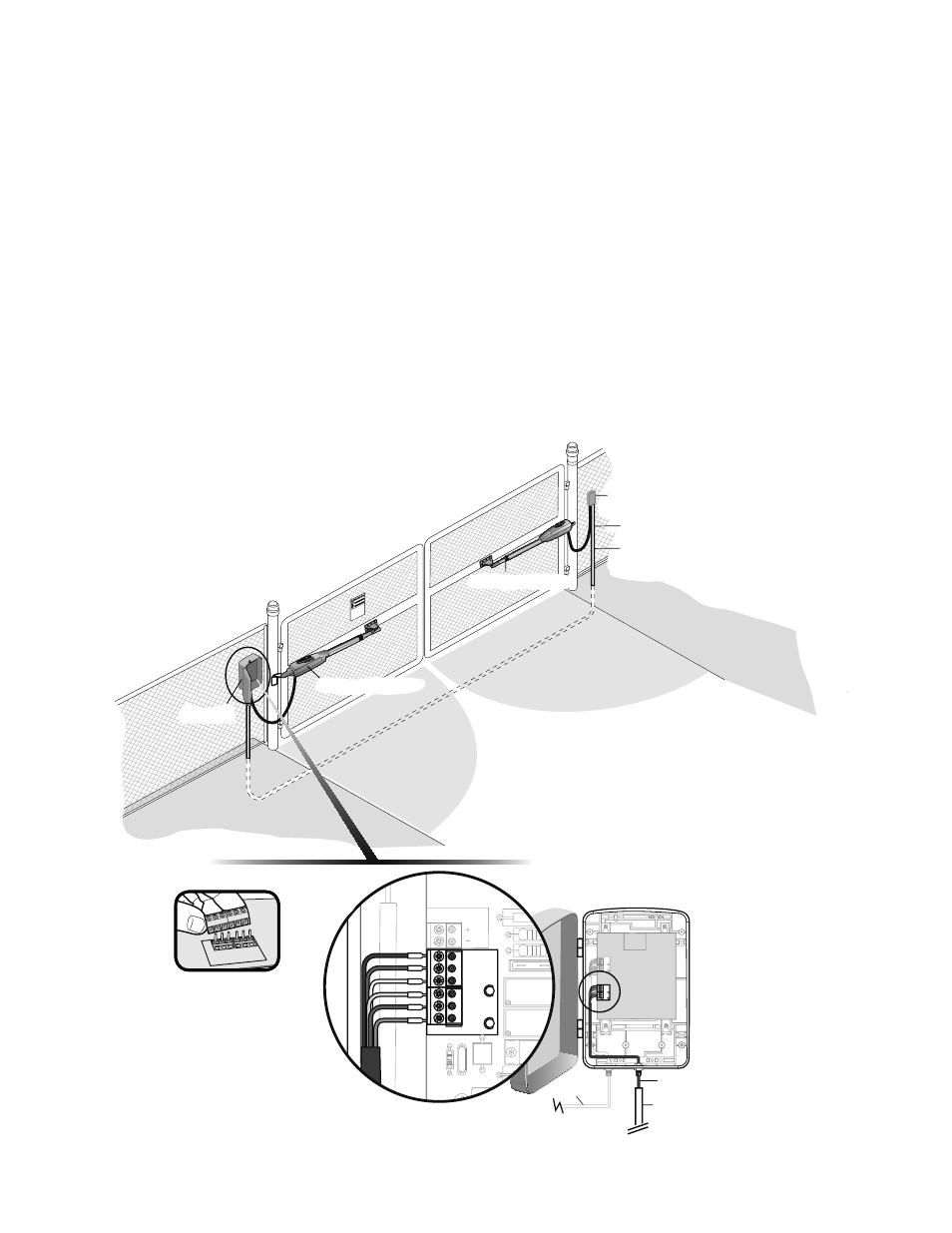

CONNECT THE GATE OPERATOR (GATE 2) TO THE
CONTROL BOX (MODEL LA400-S ONLY)
Before digging, contact local underground utility locating companies.
Trench across driveway to bury the extension cable. Use PVC conduit to prevent
damage to cables.
Select hole in bottom of the control box to be used for the extension cable.
Insert extension cable through watertight connector nut and through an
available watertight connector mounted in the control box.
Extend cable and wires to Gate 2 connector and connect as shown.
Secure extension cable to control box using watertight connector nut.
P1
F2 F6
U4
MAX
C13 C4
GATE 2
GATE 1
GRN WHT YEL BLU RED
BRN
GRN WHT YEL BLU RED
BRN
D15
C2 R4
R9Ø
R196
24 VAC/
SOLAR
INPUT
GATE 2
ACCESSORY
POWER
GRN
WHT
YEL
BLU
RED
BRN
10A 32V
24V
Mov ing Gat e Can Caus e
Injury or Death KEEP CL EAR! Gate may move at any
time with out prio r w arn ing.
Do no t let children o per ate the g ate o r
play in the g ate a rea.
This entr ance is f or vehicl es on ly
Pedes trians must use sep ara te e ntran ce
Operator
Cable Extension Cable
PVC Conduit
Control Box
Gate Operator (Gate 1)
Gate Operator (Gate 2)
Junction Box
Extension Cable
PVC conduit at least 18" (45.7 cm)
below ground level (grade)
WIRING
» CONNECT THE GATE OPERATOR (GATE 2) TO THE CONTROL BOX (MODEL LA400-S ONLY)
1
2
3
4
1
2
3
4
Terminal blocks can be
removed to simplify wiring.
