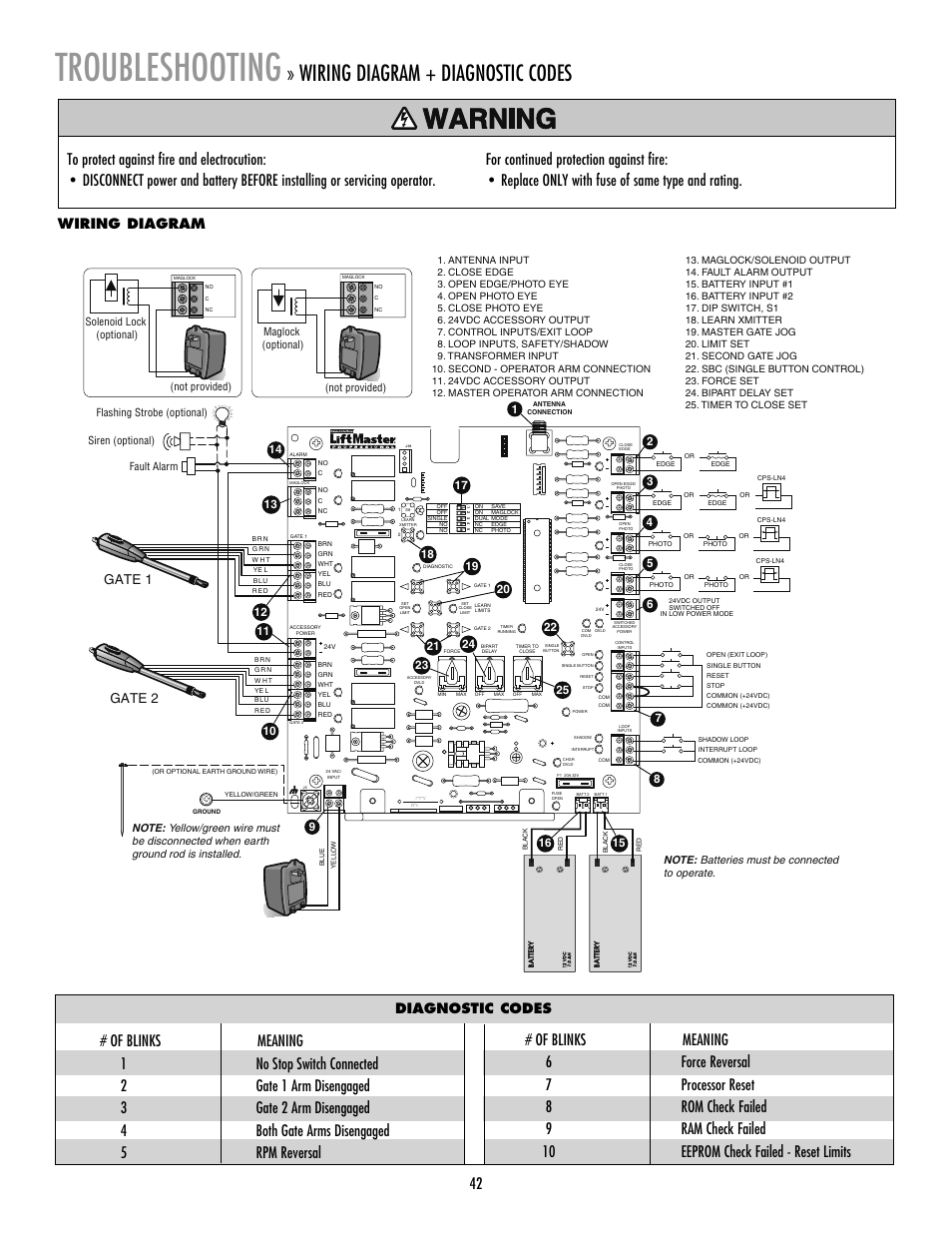

Page 43: Wiring diagram + diagnostic codes, Wiring diagram diagnostic codes, Gate 1, Gate 2

Wiring diagram, Diagnostic codes, Troubleshooting | Wiring diagram + diagnostic codes, Wiring diagram diagnostic codes, Gate 1, Gate 2 | LiftMaster LA400 Residential DC Linear Gate Operator User Manual | Page 43 / 48 Wiring diagram, Diagnostic codes, Troubleshooting | Wiring diagram + diagnostic codes, Wiring diagram diagnostic codes, Gate 1, Gate 2 | LiftMaster LA400 Residential DC Linear Gate Operator User Manual | Page 43 / 48
