LiftMaster LA412 Solar Powered Residential Gate Operator - Manual (Page 41)

1
2
3
4
40
3
5
4
2
1
6
7

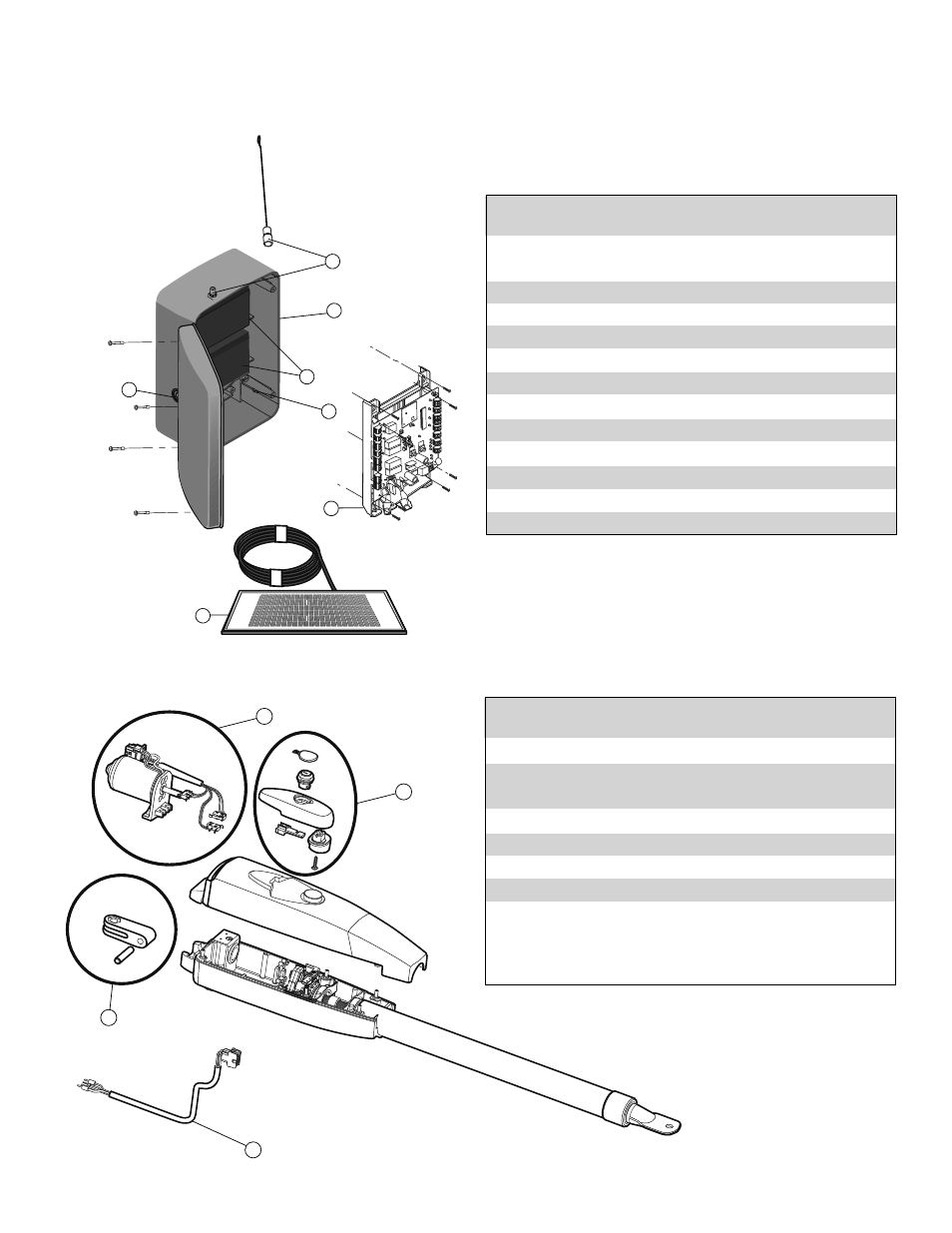

ITEM PART # DESCRIPTION QTY
1 K1A6426-1 Control Board with
Mounting Bracket
1
2 K23-19380 Reset Switch 1
3 K74-34392 Antenna 1
4 29-NP712 Battery 1
5 K76-19446 Alarm 1
6 SOLPNL10W12V Solar Panel
Not Shown
LA412-CONT Complete Control Box
K1A6636 Receiver Module - 315 MHz
K1A6636-1 Receiver Module - 390 MHz (optional)
K76-35600 Reset Switch (XLM Control Box)
K76-35364 Alarm (XLM Control Box)
NOTE: The fuse is a standard 20 Amp fuse that is available from your local
automotive store.
GATE OPERATOR ARM
CONTROL BOX
ITEM PART # DESCRIPTION QTY
1 41ASWG-442SA Release Lever 1
2 41ASWG-0594SA Motor with Limit 1
Switch Harness
3 41ASWG-0014SA Rear Connector 1
4 41ASWG-0597SA Cable 12 V with Connector 1
Not Shown
41ASWG-0119 Release Key 1
K77-19130 Hardware Bag
Complete with: Gate bracket, post
bracket, pull-to-open bracket and
hardware
REPAIR
PARTS
» CONTROL BOX + GATE OPERATOR ARM
Refer to the parts lists below for replacement parts available for your operator. If
optional modifications and/or accessories are included with your operator, certain
components may be added or removed from these lists.
