Wiring – LiftMaster LA412 Solar Powered Residential Gate Operator User Manual
Page 25
24

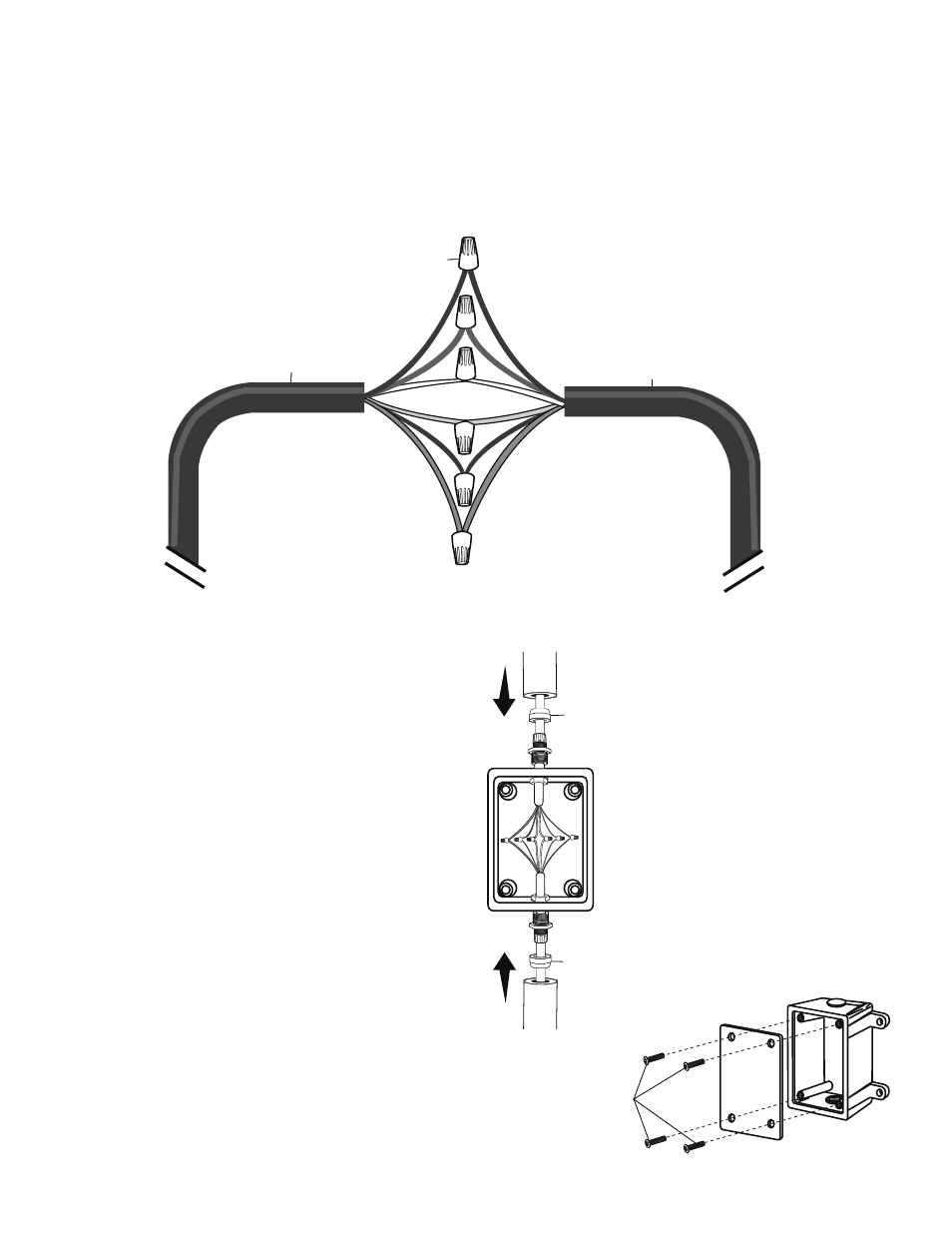

Remove terminals from operator cable. Strip wires and twist like colored wires
together with wire nuts.
Wire Nut
Operator Cable
Extension Cable
Yellow
Blue
Red
Blue
Red
White
White
Brown
Green
Brown
Green
Yellow
Put wires inside of junction box.
Secure operator and extension cables with watertight connector nut.
Reinstall cover.
Screws (4)
WIRING
» JUNCTION BOX (MODEL LA412-S ONLY)
6
6
7
8
9
7
8
9
Watertight Connector Nut
Watertight Connector Nut
