22

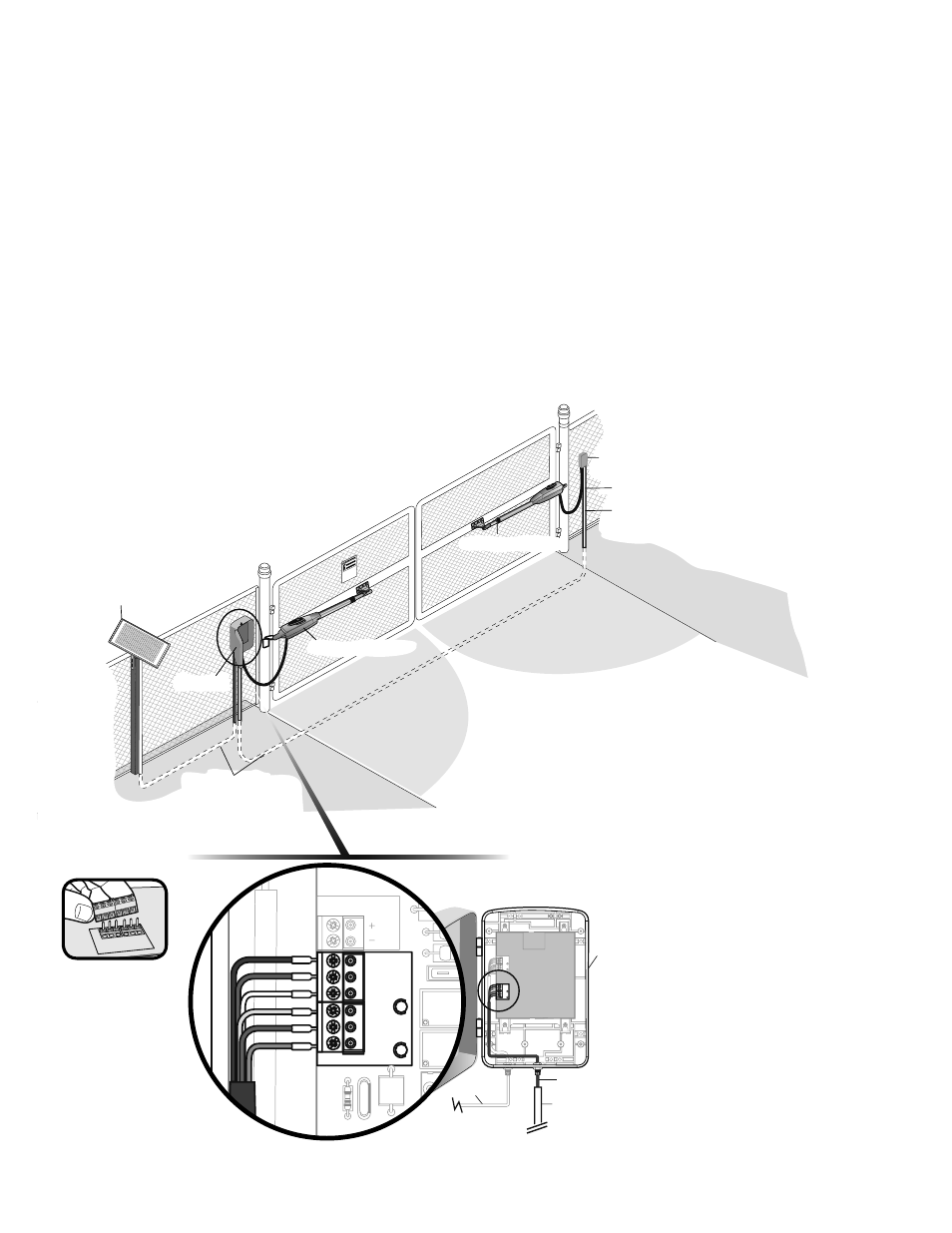

CONNECT THE GATE OPERATOR (GATE 2) TO THE
CONTROL BOX (MODEL LA412-S ONLY)
Before digging, contact local underground utility locating companies.
Trench across driveway to bury the extension cable. Use PVC conduit to prevent
damage to cables.
Select hole in bottom of the control box to be used for the extension cable.
Insert extension cable through watertight connector nut and through an
available watertight connector mounted in the control box.
Extend cable and wires to Gate 2 connector and connect as shown.
Secure extension cable to control box using watertight connector nut.
Mov ing Gate Can Ca use
Inju ry or De ath
KEE P CL EA R! Gate may mo ve a t any
tim e wit hout pri or w arn ing.
Do not let ch ildre n o pera te t he g ate or
play in the gat e area.
This entr ance is f or veh icles on ly
Pedes tria ns mu st use sepa rate ent rance
P1
F2 F6
U4
MAX
C13 C4
GATE 2
GATE 1
GRN WHT YEL BLU RED
BRN
GRN WHT YEL BLU RED
BRN
D15
C2 R4
R9Ø
R196
24 VAC/
SOLAR
INPUT
GATE 2
ACCESSORY
POWER
GRN
WHT
YEL
BLU
RED
BRN
10A 32V
24V
Control Box
Terminal blocks can be
removed to simplify wiring.
Operator
Cable Extension Cable
PVC Conduit
Solar Panel
(Facing South)
Control Box
PVC conduit (not provided) to
protect the power cable for solar
panel and low voltage wire from
lawn mowers and string trimmers.
Gate Operator (Gate 1)
Gate Operator (Gate 2)
Junction Box
Extension Cable
PVC conduit at least 18" (45.7 cm)
below ground level (grade)
WIRING
» CONNECT THE GATE OPERATOR (GATE 2) TO THE CONTROL BOX (MODEL LA412-S ONLY)
1
2
3
4
D15
C2 R4
R9Ø
R196
C/
GATE 2
ACCESSORY
POWER
GRN
WHT
YEL
BLU
RED
BRN
10A 32
24V
1
2
3
4
