20
Mo vin g G ate Can Caus e
Injur y or Death
KEEP CLEAR! Ga te m ay m ove at any
tim e w itho ut pri or w arn ing .
Do n ot le t ch ildre n o per ate the ga te o r
pla y in the ga te a rea .
Thi s en tran ce i s fo r ve hic les o nly
Ped est rian s m ust use sep ara te e ntra nce
GATE 1
GRN WHT YEL
BLU RED
BRN
F2 F6
U4
MAX
FUSE
OPEN
C13 C4
Z1
10A 32V
D1Ø
Z12
ACCESSORY
POWER
GATE 1
NC
GRN
WHT
YEL
BLU
RED
BRN

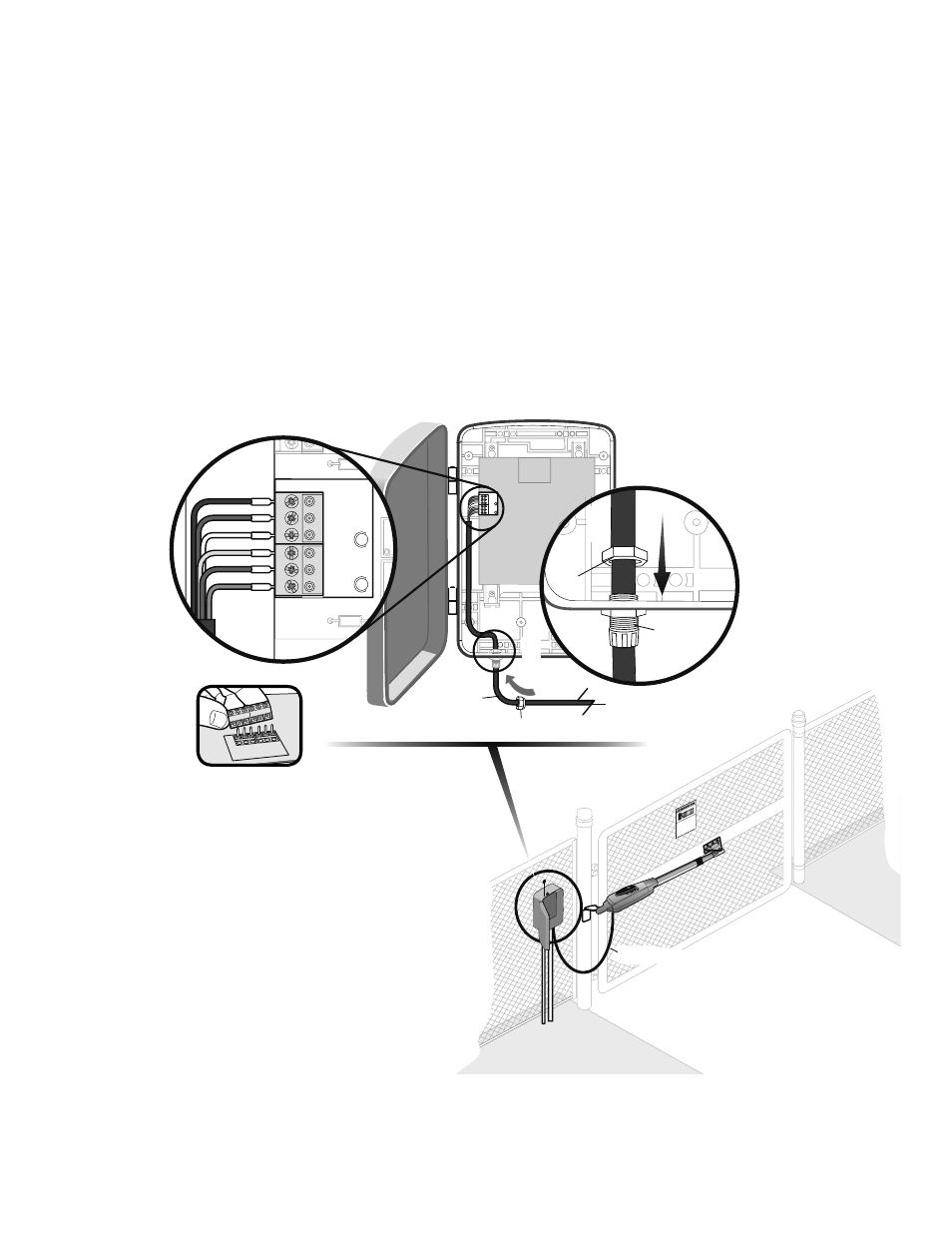

Insert the operator cable through the watertight connector mounted in the
bottom of the control box.
Select hole in bottom of the control box to be used for the operator cable.
CONNECT THE GATE OPERATOR (GATE 1) TO THE
CONTROL BOX
Insert the watertight connector into the bottom of the control box and tighten
with nut.
1
2
3
WIRING
» CONNECT THE GATE OPERATOR (GATE 1) TO THE CONTROL BOX
Operator Cable
Watertight Connector Nut
If installing one operator, proceed to page 25. If
installing two operators, continue to the next page.
Extend the operator cable and wires to the Gate 1 connector and connect
as shown.
Tighten watertight connector nut.
4
5
Terminal blocks can be
removed to simplify wiring.
Watertight
Connector
Nut
Operator Cable
1
2
3
4
5
