Run/jog switch, Run/jog option #1 – LEESON NEMA 4X SCR Control: 174107.00 User Manual
Page 35

29
Application Notes
RUN/JOG switch
Using a RUN/JOG switch is recommended in applications where
quick stopping is not needed and frequent jogging is required.
Use a single pole, two position switch for the RUN/JOG switch,
and a single pole, normally closed, momentary operated
pushbutton for the JOG pushbutton.
RUN/JOG option #1

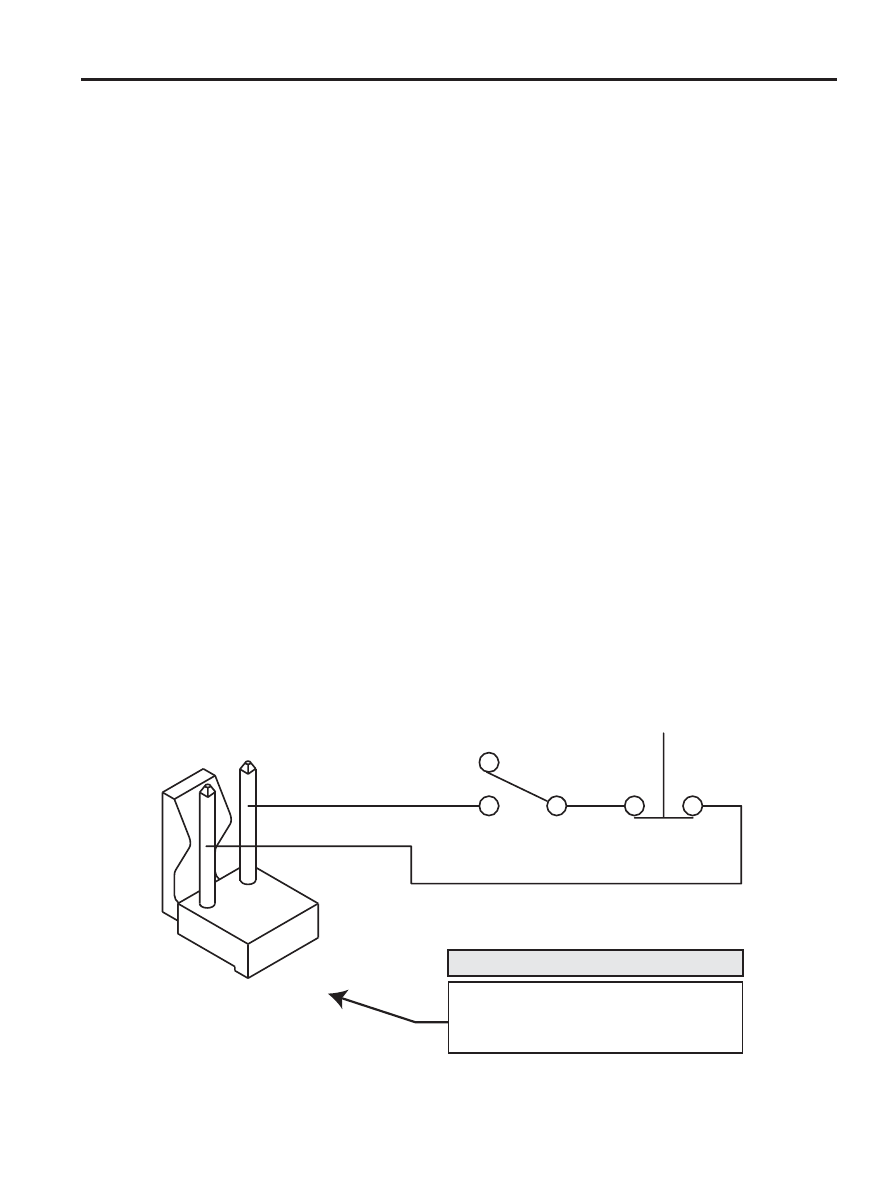

In the first wiring option, connect the RUN/JOG switch and JOG
pushbutton to the inhibit plug as shown in Figure 13. The motor
coasts to minimum speed when the RUN/JOG switch is set to
JOG. Press the JOG pushbutton to jog the motor. Return the
RUN/JOG switch to RUN for normal operation.
JOG
RUN
JOG
PUSHBUTTON
INHIBIT
SO501 2-PIN HEADER
Use LEESON accessory plug harness
(part number: 900282.01) to mate
with 2-pin header (SO501) on control board.
Figure 13. RUN/JOG Switch Option #1
