25

Application Notes

15 ohm for 90 VDC motors

30 ohm for 180 VDC motors

MOTOR

A2

A1

RUN

BRAKE

DYNAMIC BRAKE

RESISTOR

INHIBIT

SO501 2-PIN HEADER

Use LEESON accessory plug harness

(part number: 900282.01) to mate

with 2-pin header (SO501) on control board.

DYNAMIC BRAKE RESISTOR

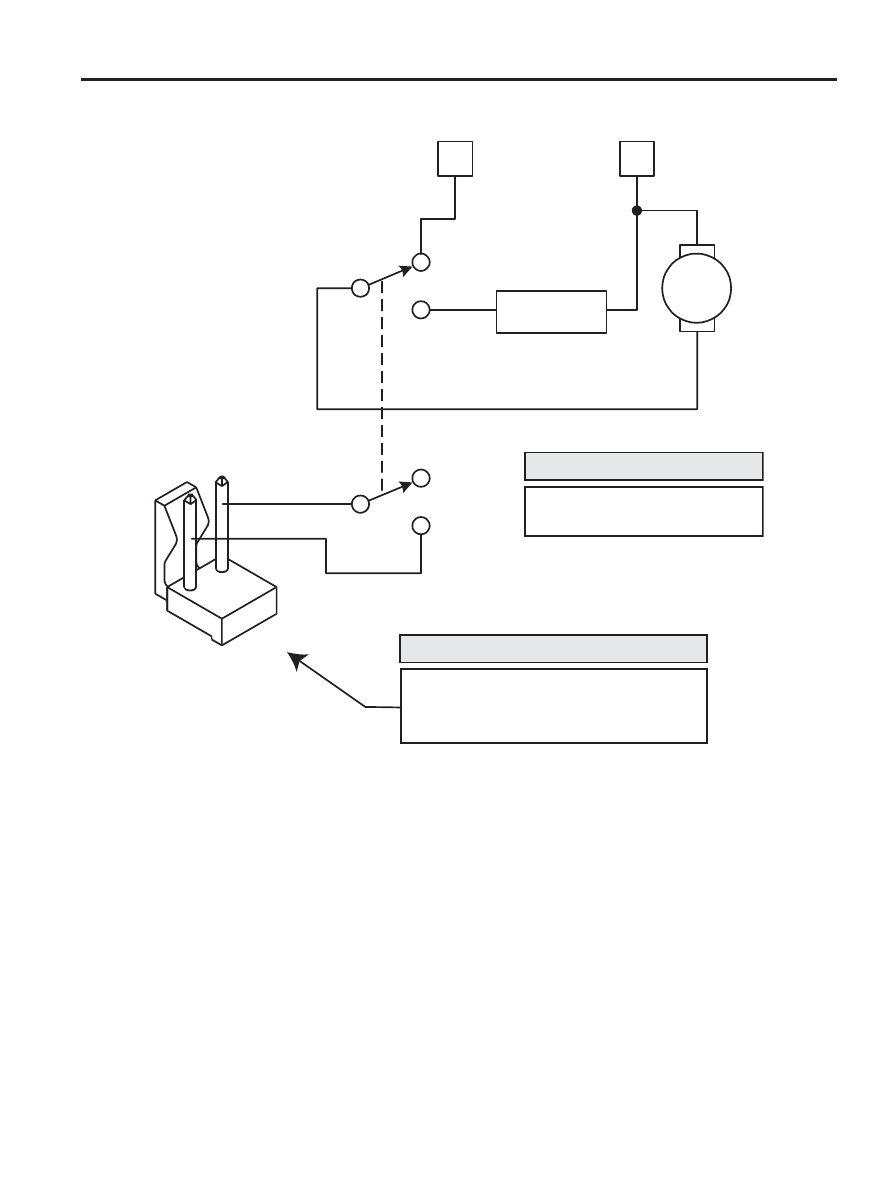

Figure 9. Dynamic Brake Connection
