LEESON NEMA 4X SCR Control: 174107.00 User Manual
Page 22

16
SPEEDMASTER™ OPERATION MANUAL
Calibration
1 HP
90 VDC
1750 RPM
10 AMPS
1/2 HP
90 VDC
1750 RPM
5 AMPS
TORQUE
IR COMP
1/4 HP
90 VDC
1750 RPM
2.7 AMPS
2 HP
180 VDC
1750 RPM
9.2 AMPS
1 HP
180 VDC
1750 RPM
5 AMPS
TORQUE
IR COMP
1/2 HP
180 VDC
1750 RPM
1.3 AMPS

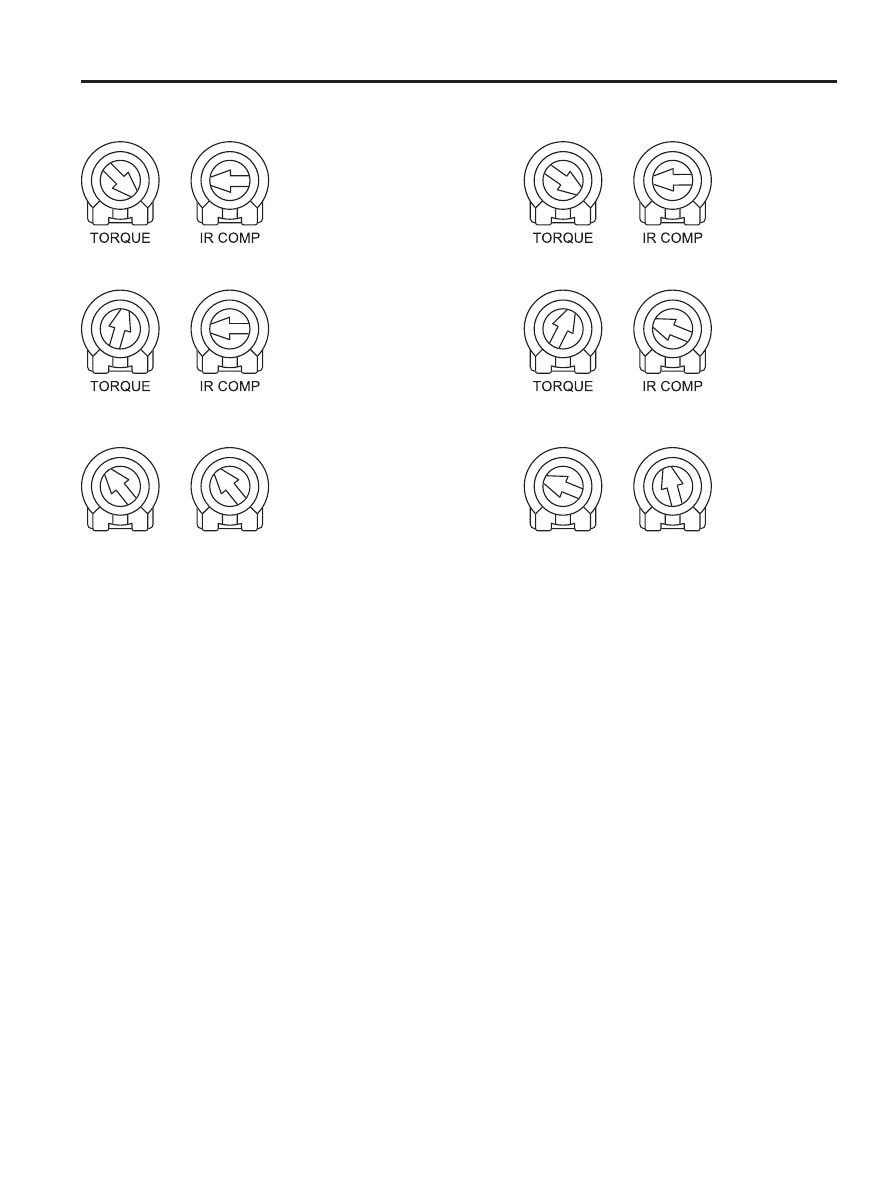

Figure 6. Recommended TORQUE and IR COMP Settings for
174102, 174103 & 174107 Controls
