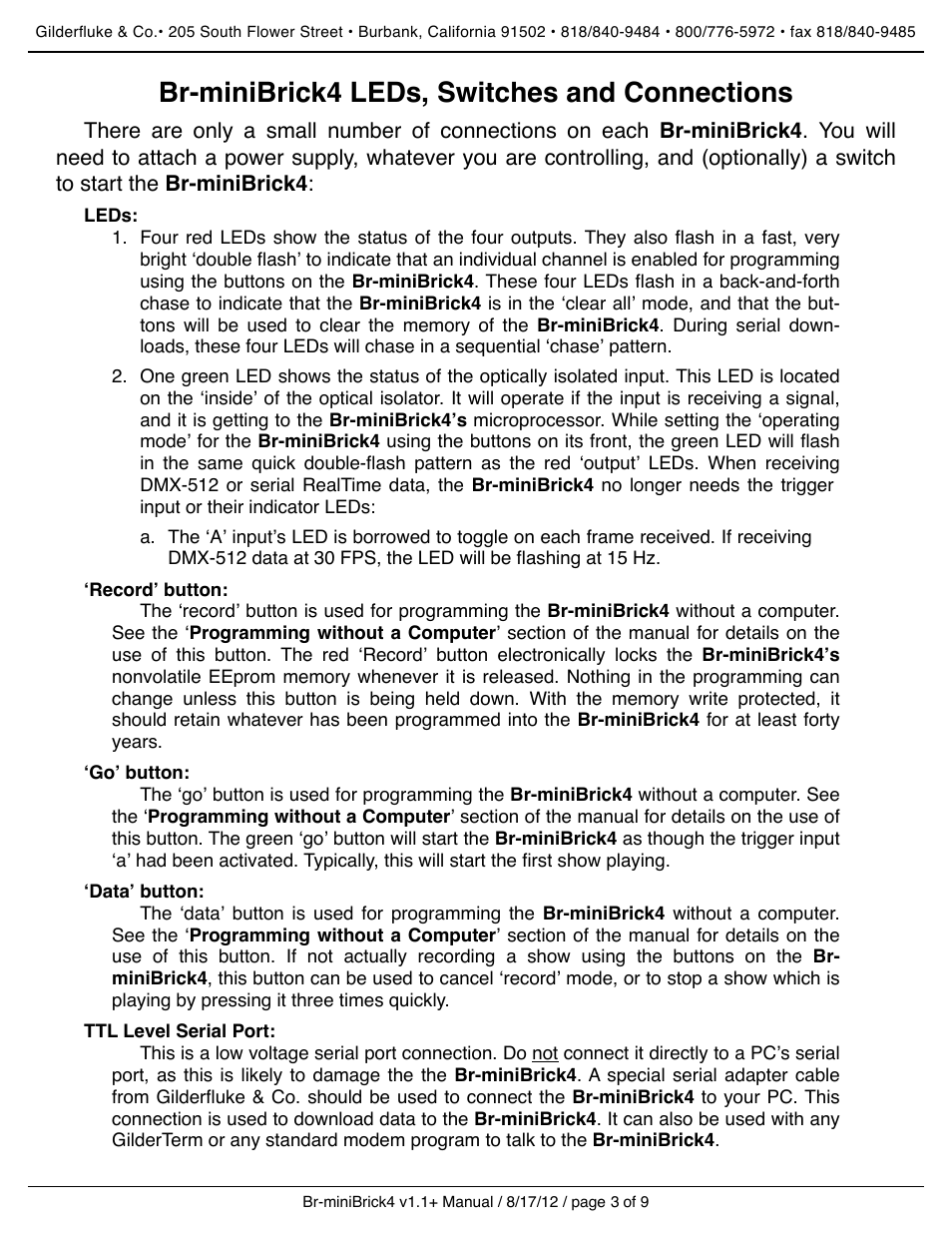

Br-minibrick4 leds, switches and connections, Leds, ʻrecordʼ button – Gilderfluke&Co Br-miniBrick4 User Manual
Page 6: ʻgoʼ button, ʻdataʼ button, Ttl level serial port
