Installation—Digital Audio Models
This section covers the installation of the Encore/ST G4 into Power Mac
G4 Digital Audio models (back panel appears like
Figure 14). If you are
installing this product into an AGP Graphics or Gigabit Ethernet model,
go back to page 3. If you are installing this product into a QuickSilver
2001 or QuickSilver 2002 model, skip to page 10.
Shut Down and Open Computer
1. Shut down your Power Mac. If the computer has been on for a
while, allow 20 minutes for it to completely cool before begin-
ning the installation.
2. If you need to move the computer to a different area where you
can work freely, disconnect any connected cables, move the com-
puter, then reconnect the power cord to the computer and an
electrical outlet.

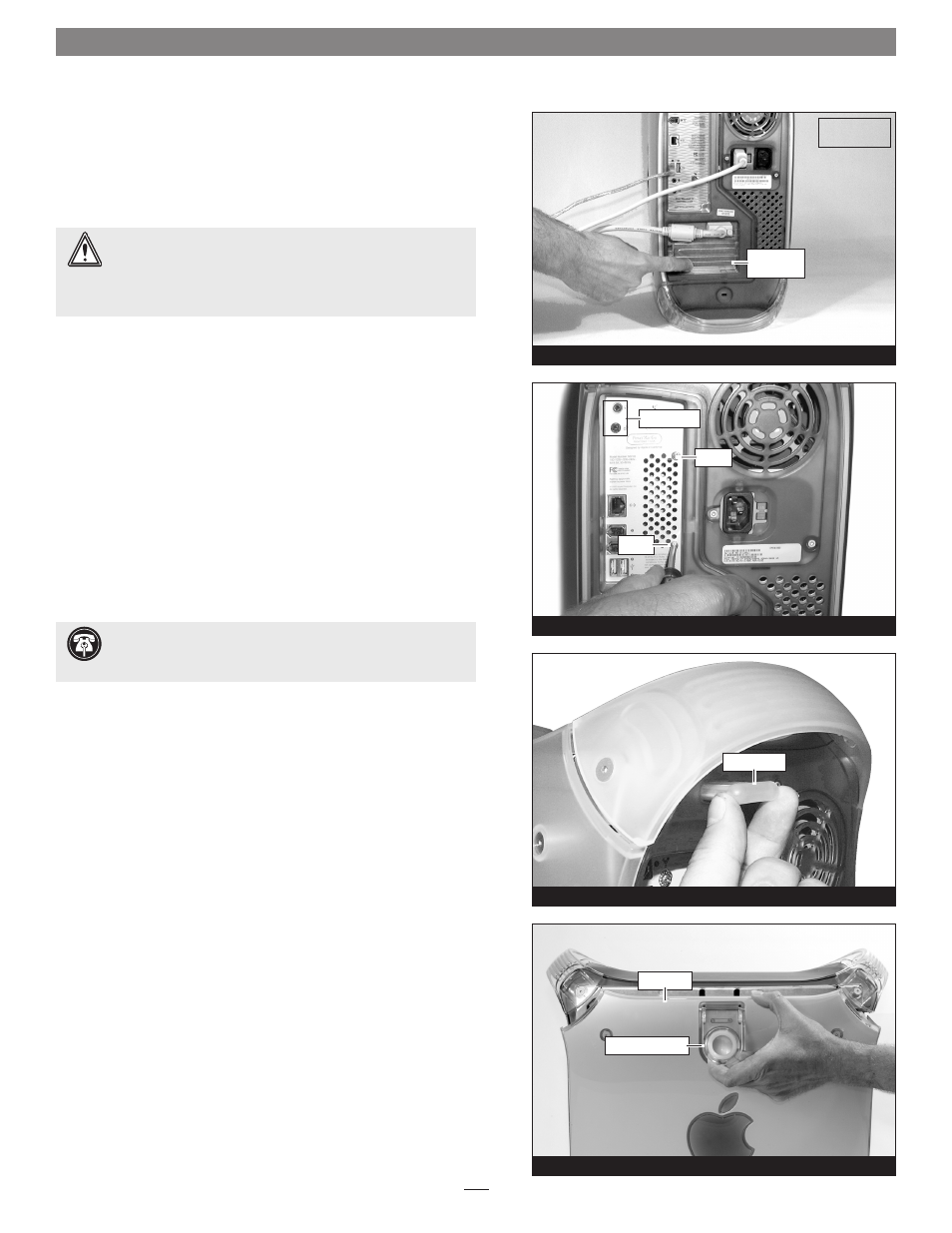

3. Touch a port access cover on the back of the computer to dis-
charge any potential damaging static electricity
(Figure 13).
4. Disconnect the power cord from the computer.
5. If present, remove the two indicated screws from the back plate
of the computer
(Figure 14). Otherwise, go to step 6.
6. Locate the security lock at the back of the computer (Figure 15).
If it is not already pressed in, press it in now.
7. With the right side of the case facing you, open your Power Mac
by lifting the release latch and lowering the side panel away from
the computer’s case
(Figure 16).
WARNING:
When handling computer products, take care to
prevent components from being damaged by static electricity;
avoid working in carpeted areas. Handle processor upgrade cards only
by their edges and avoid touching connector traces and component
pins. Also, avoid touching the logic board and any of its components.
Support Note:
To avoid generating a static charge in your
body, do not walk around the room until after you finish
installing the Encore card and close the computer.
