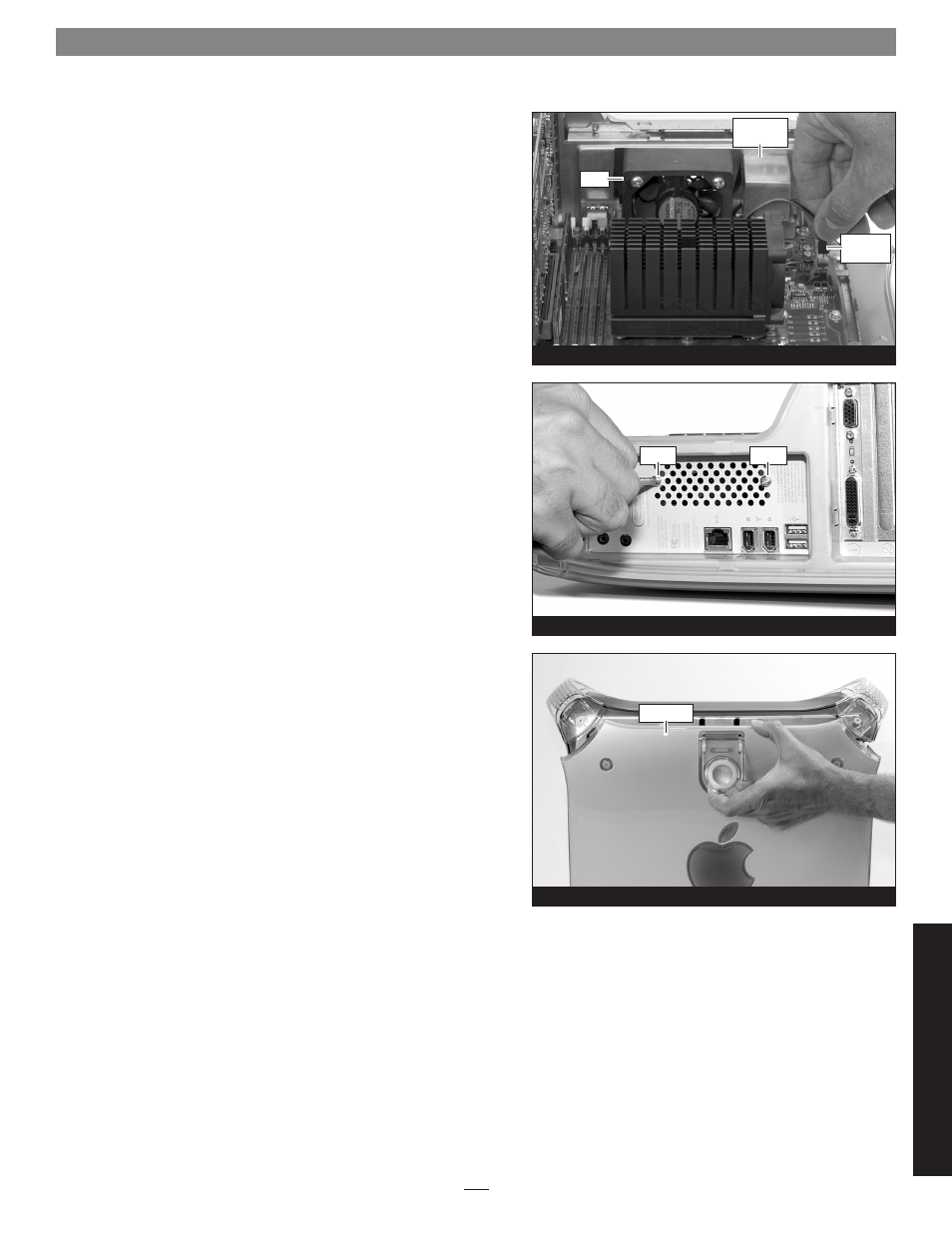

Figure 39

Installation—QuickSilver 2001 and 2002 Models

Reinstall Fan Assembly and Close Computer

1. Place the fan assembly between the Encore/ST card’s heat sink

and the back panel of the computer, against the modem ﬁlter
(Figure 38). Carefully plug in the fan’s 2-pin connector to the
connector on the logic board.

2. With the back of the computer facing you, secure the fan assem-

bly to the back plate of the computer with the two screws you
removed previously

(Figure 39).

3. Raise the side panel back into place (Figure 40).

4. Return the computer to your computing area if necessary, and

reconnect the power cord and peripheral cables to the computer.

Turn On Computer

Turn on your Power Mac; your accelerated machine should boot
normally. Your installation is now complete.

screw

Figure 38

fan

2-pin

connector

Figure 40

side panel

modem

filter
