Sonnet Technologies Encore_ST G4 (1.4 GHz and Slower) Processor Ugrade Card - Manual (Page 7)

5

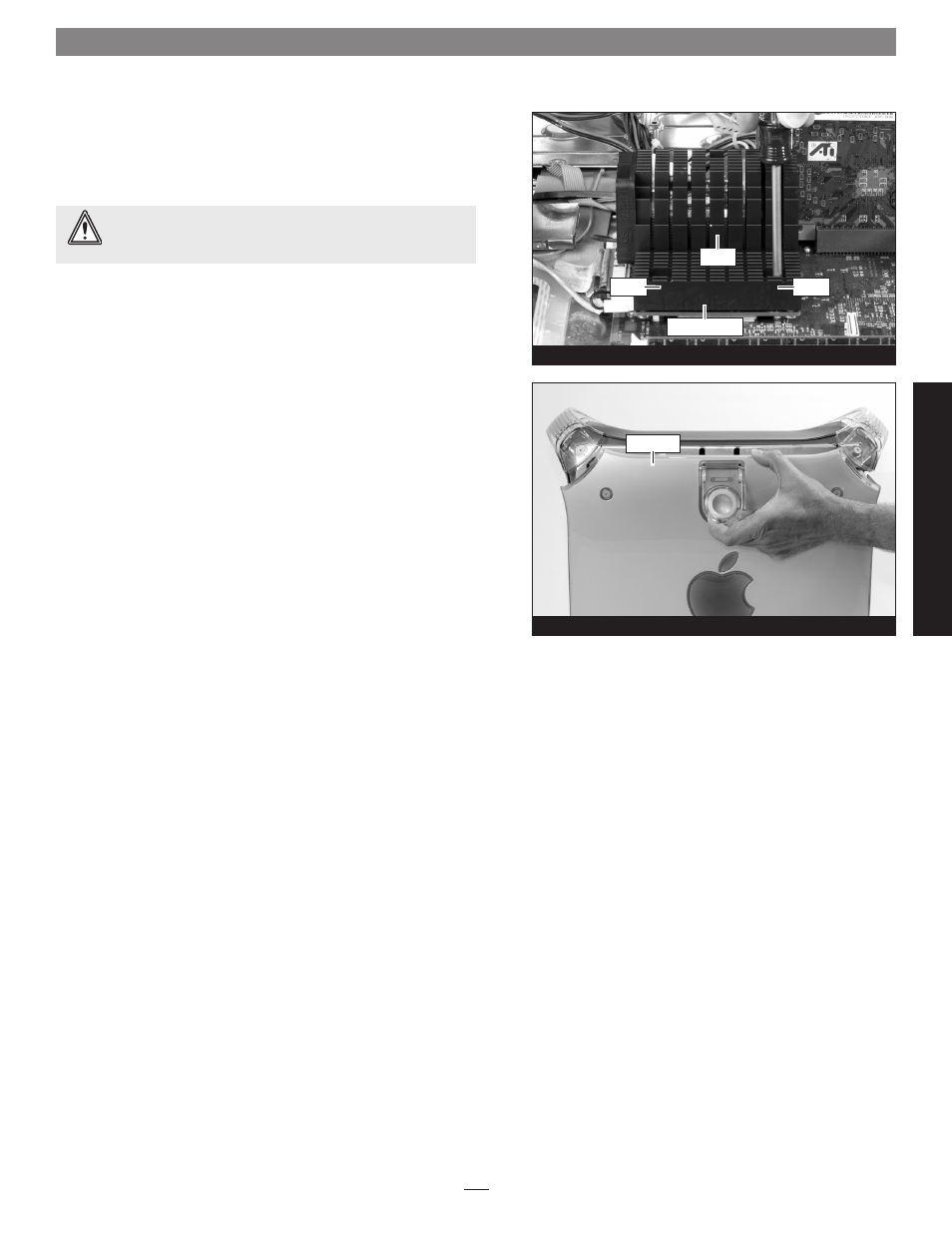

Figure 12
Figure 11
Encore/ST card
screw screw
Installation—AGP Graphics and Gigabit Ethernet Models
5. Making sure the Encore/ST card’s captive screws are engaged
properly in the threaded posts, tighten each of the three screws
and secure the card snugly to the logic board;
do not overtight-
en the screws (Figure 11).
Close Computer
1. Raise the side panel back into place (Figure 12).
2. Return the computer to your computing area if necessary, and
reconnect the power cord and peripheral cables to the computer.
Turn On Computer
Turn on your Power Mac; your accelerated machine should boot
normally. Your installation is now complete.
side panel
screw
WARNING: When your computer is operating, the Encore/ST
card’s heat sink will become VERY hot to the touch; take care to
not touch the heat sinks, or you may get burned.
AG
P
Gr
ap
hi
cs
/G
ig
ab
it
Et
he
rn
et
