PN# 500-10300

Page 3

Rev. D, 04/11

supply has gone into automatic shut off (discussed later). Always replace any blown fuse
with the same rated fuse.

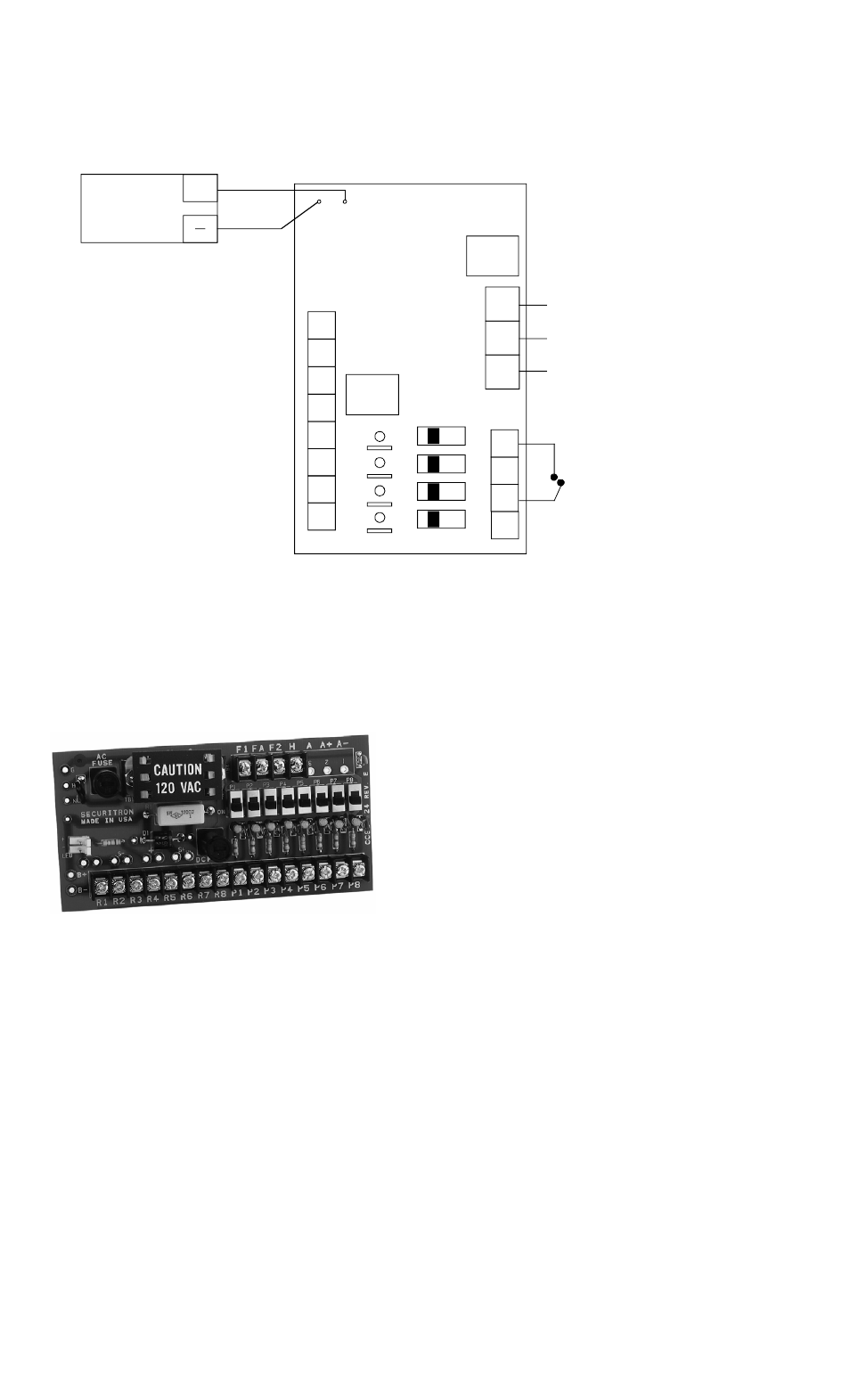

FIG. 1: POWER SUPPLY WIRING WITH CCS-4 BOARD

R2

R1

B+

B-

F1

FA

P4

P3

P2

P1

COMMON NEGATIVE
DC RETURN (0 VOLT)

HO

T

N

E

U

T

G

RND

11
5 VAC

I

N

PU
T

H

N

G

TERMINALS R1-R4

CLASS 2 TERMINALS:
P1-P4 SUPPLY +V OUT.
EACH TERMINAL IS ON

WHICH IS APPROPRIATE
FOR INSTALLATIONS
WITH MULTIPLE LOADS

FIRE ALARM

N.C. CONTACTS

OPEN WHEN
ALARM ACTIVE

BATTERY

PACK

(OPTIONAL)

+

A SEPARATE POLYSWITCH

F2

AC
FUSE

H

DC
FUSE

R4

R3

RED

BLACK

ON

OF

F

SLIDE SWITCHES POWER AND DE-POWER EACH
"P" OUTPUT. LED'S SHOW OUTPUT STATUS

"H" TERMINAL IS SINGLE, HIGH-
CURRENT OUTPUT (UPSTREAM
OF POLYSWITCHES)

OPERATION OF AC AND DC
FUSES IS DESCRIBED IN
SECTION 3.5

The DC fuse should only trip if there is a short circuit in the supply itself (downstream short
circuits or overloads will trip individual Polyswitches). This could occur if the F1-H terminal block

somehow contacts DC negative. Alternately, if you are not using the “P” terminals for
downstream wiring but are using the “H” terminal to operate an individual, high current,
downstream load, a short circuit or overload could trip the DC fuse.

Securitron’s power supply family contains an

additional safety feature which is automatic shut
off
in the event of a DC short circuit or overload.
This is often called a “crowbar” circuit. When you
are using the power supply without batteries, a
DC short circuit will usually cause the power supply

to shut itself off rather than tripping any fuse or
Polyswitch. If batteries are implemented, however,
they will attempt to drive into the load as soon as
the short circuit or overload occurs and the fuses
and/or Polyswitches will trip to maintain safety.

If this happens there is a reset procedure. First, correct the overload condition. Next,
remove all current from the Polyswitch for a period of 10 seconds
. You do this by
moving the associated slide switch to the “off” position. Then wait 10 seconds, return the slide
switch to “on” and operation will return to normal. If you haven’t corrected the overload,
naturally the Polyswitch will trip again but you must always de-power and re-power the

Polyswitch to reset it.

The multiple safety features of these power supplies can be confusing so the following chart
provides summary information on operation of the safety features when the power supply is
used with and without batteries.
