Rev 2.0 : X11CA-IM MASTER MODULE
4
3 CABLES
The Port 2 is communication port to host device and can be either RS232 or
isolated RS485.
? The RS485 connection is a 5 pin screw terminal and the pin assignments are
marked on the cover.
? The RS232 connection is the 9 pin female connector and the pin assignments
are listed below.

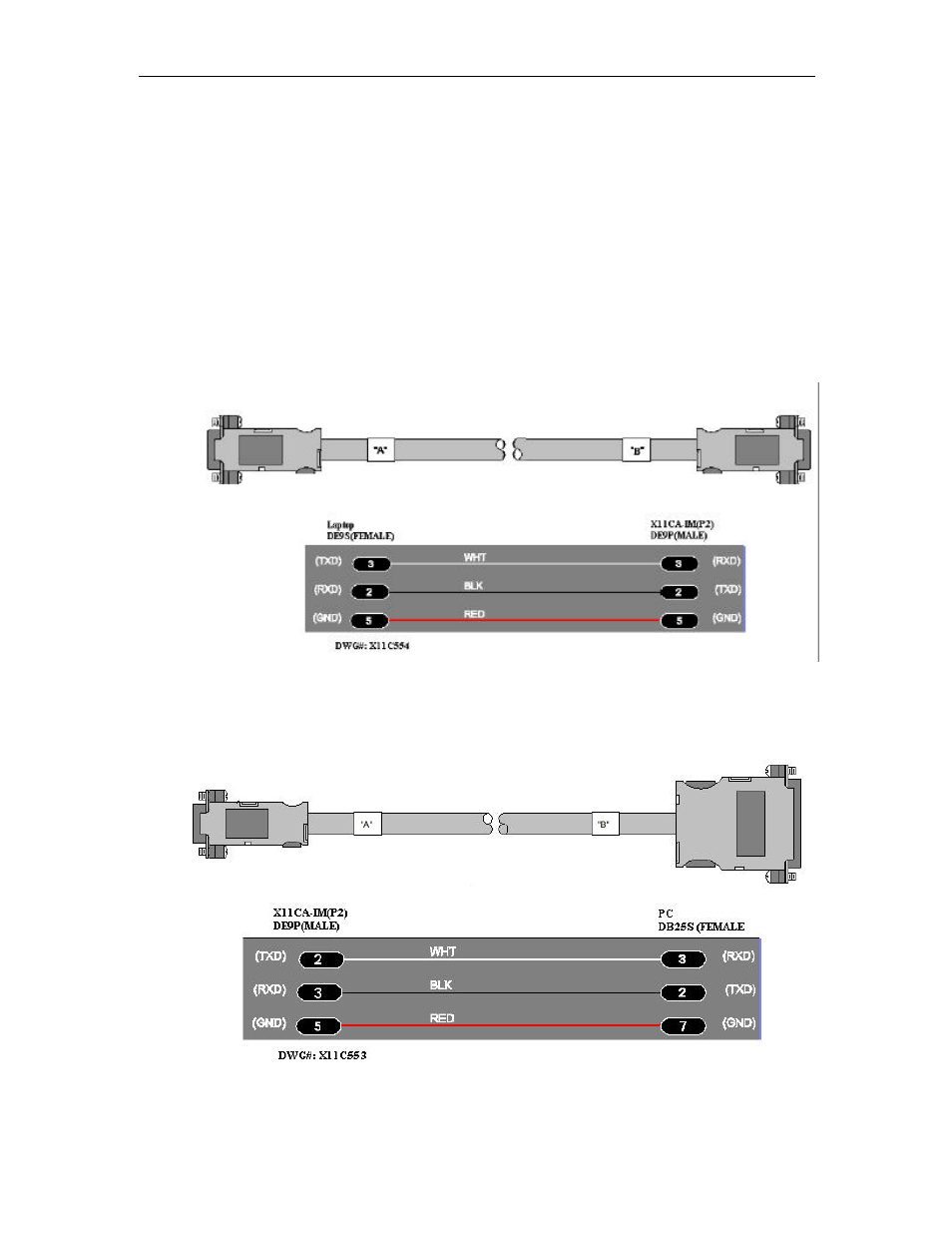

3.1.1 RS232: Laptop to X11CA-IM(P2)
Figure 3-1 RS232 Cable from the Laptop to X11CA-IM Connection
3.1.2 RS232: PC to X11CA-IM(P2)
Figure 3-2 RS232 Cable from the Laptop to X11CA-IM Connection
