Operator's Manual
Rivers Edge® Spin Shot™
ASSEMBLY INSTRUCTIONS
Tools needed – two 7/16" wrenches, rubber mallet
IMPORTANT ASSEMBLY TIP: DO NOT TIGHTEN NUT & BOLT COMBINA-
TIONS COMPLETELY UNTIL ALL PARTS ARE ASSEMBLED TOGETHER!
FINGER TIGHTEN ONLY PLUS ONE TURN OF A WRENCH ONLY! THIS WILL
TEMPORARILY HOLD THE LOCK NUT ON THE BOLT WHILE HELPING ALIGN-
MENT OF ALL PARTS! AFTER ALL PARTS ARE ASSEMBLED TOGETHER, ALL
NUT AND BOLT COMBINATIONS MUST BE COMPLETELY TIGHTENED!

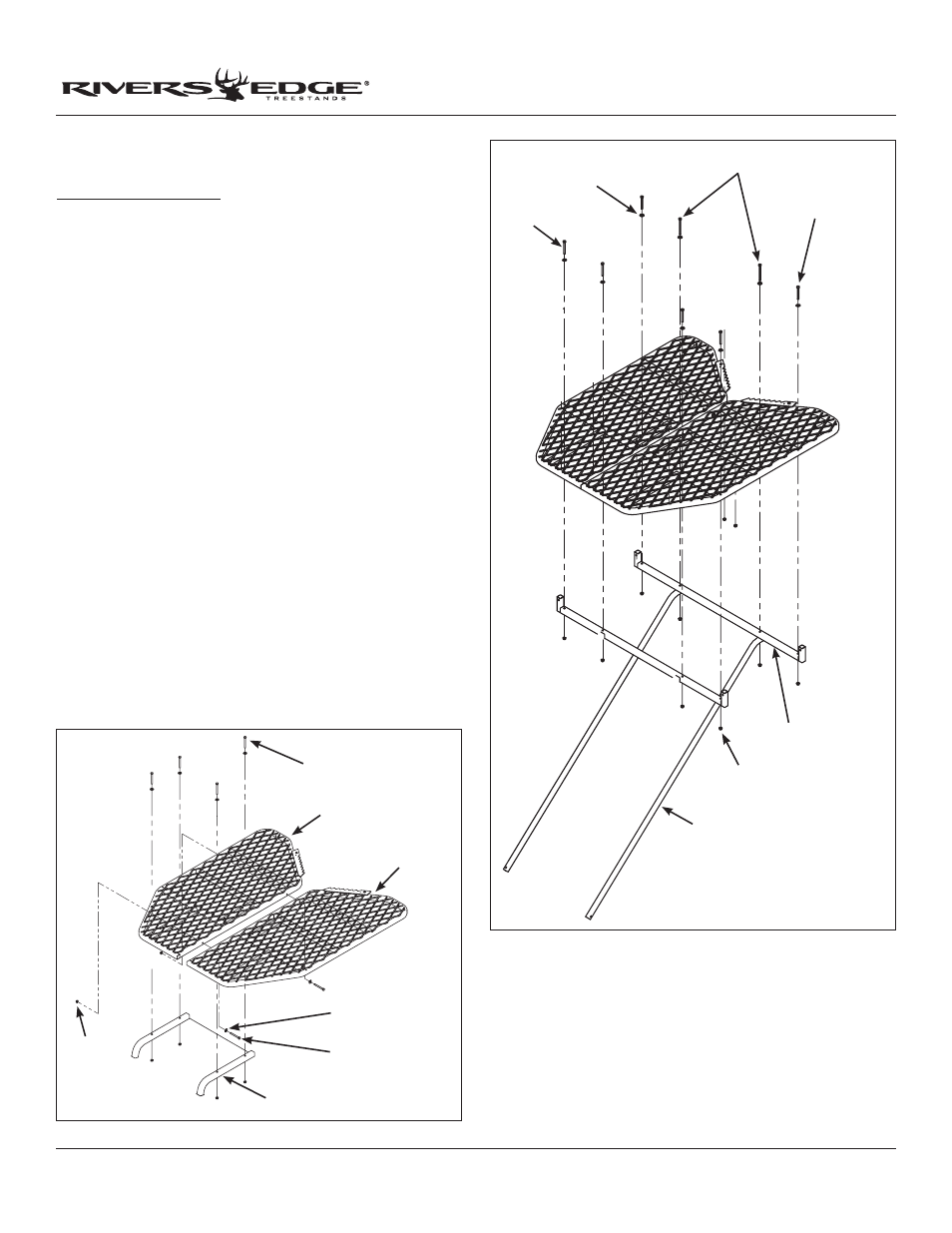

1. Attach (1) ladder receiver J-pipe (112ML70) to the bottom of left
foot platform (112ML66) and (1) ladder receiver J-pipe to the bottom
of right platform (112ML69) using (4) provided 1/4-20 x 2-1/2” bolts,
locknuts and steel washers. SEE FIGURE 1. DO NOT tighten all nut
and bolt assemblies completely!
NOTE: Mesh surface should be on top.
2. Attach left and right platforms together using (2) provided 1/4-20
x 2-1/2” bolts, locknuts and steel washers. SEE FIGURE 1
3. Attach (1) platform spanner tube (112ML77) to the bottom of
assembled platforms (near front end of platforms) using (4) provided
1/4-20 x 2-1/2” bolts, locknuts and steel washers. SEE FIGURE 2
NOTE: Pockets of platform spanner tubes should be orientated
upward.
4. Attach (1) platform spanner tube (112ML77) and (2) support tubes
(112ML75) to the bottom of assembled platforms (near back end of
platforms) using (2) provided 1/4-20 x 3-1/4” bolts, (2) 1/4-20 x 2-1/2"
bolts, (4) locknuts and (4) steel washers. SEE FIGURE 2
NOTE: Pockets of platform spanner tubes should be orientated
upward.
NOTE: Bent ends of support tubes must be attached to the platform
spanner tubes.
locknut
right foot
platform
left foot
platform
1/4-20 x 2-1/2" bolt
steel washer
1/4-20 x 2-1/2" bolt
ladder receiver j-pipe
1/4-20 x 3-1/4" bolts
1/4-20 x 2-1/2" bolt
platform spanner
tube
locknut
support tube
steel washer
1/4-20 x 2-1/2"
bolt
FIGURE 2
FIGURE 1
