M. CHANNEL button
• Recalls a different channel of the remote
temperature
• Enables remote temperature channels
auto scanning feature
N. SNOOZE/LIGHT button
• Enables backlight for 5 seconds
• Stops any alarm temporarily
O. BATTERY COMPARTMENT
• Accommodates 2 “AA” batteries
P . WALL-MOUNT RECESSED HOLE
• Keeps the main unit on the wall
Q. REMOVABLE TABLE STAND
• Keeps main unit in upright position on a
flat surface
REMOTE RAIN GAUGE FEATURES
• Precipitation measurement
• Remote rainfall data transmission to the
main unit via 433 MHz signal
• 100 feet (30 meters) transmission range
without interference
• Built-in installation level
• Mounting hardware
• Non-corrosive protective screen
A. Rain gauge bucket
Holds all rain gauge components
B. Knob
Secures the top on the rain gauge bucket
C. Rain gauge bucket feet
Allow securing the rain gauge on its place

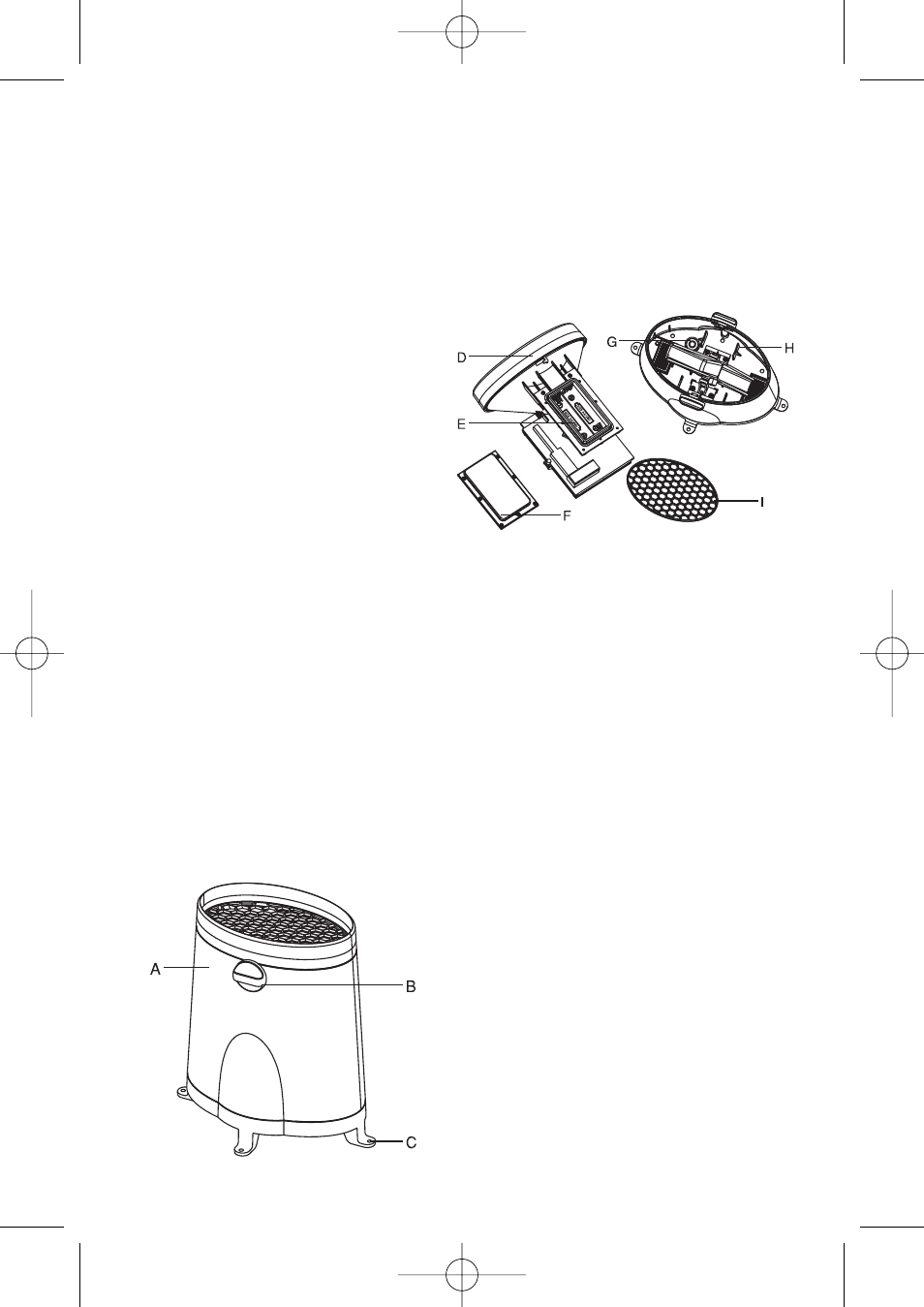

REMOTE RAIN GAUGE
D. Funnel-shaped top with battery
compartment
Contains battery compartment and rainfall
counting electronics
E. Battery compartment
Holds 2 “AA” batteries
F. Screws
Secure battery compartment cover
G. Built-in leveler
Allows leveling rain gauge on the surface
H. Bucket see-saw mechanism
Collects the rainfall in one of its containers
and self-empties once full
I. Protective screen
Protects the rain gauge funnel from debris
REMOTE TEMPERATURE SENSOR
FEATURES
(see diagram next page)
• Remote temperature transmission to the
main unit via 433 MHz signal
• 100 feet (30 meters) transmission range
without interference
• LCD display of measured temperature
• Three transmission (3) channels selection
• Selection of the temperature display in
Celsius or Fahrenheit
• Case can be wall mounted using built-in
hanger
