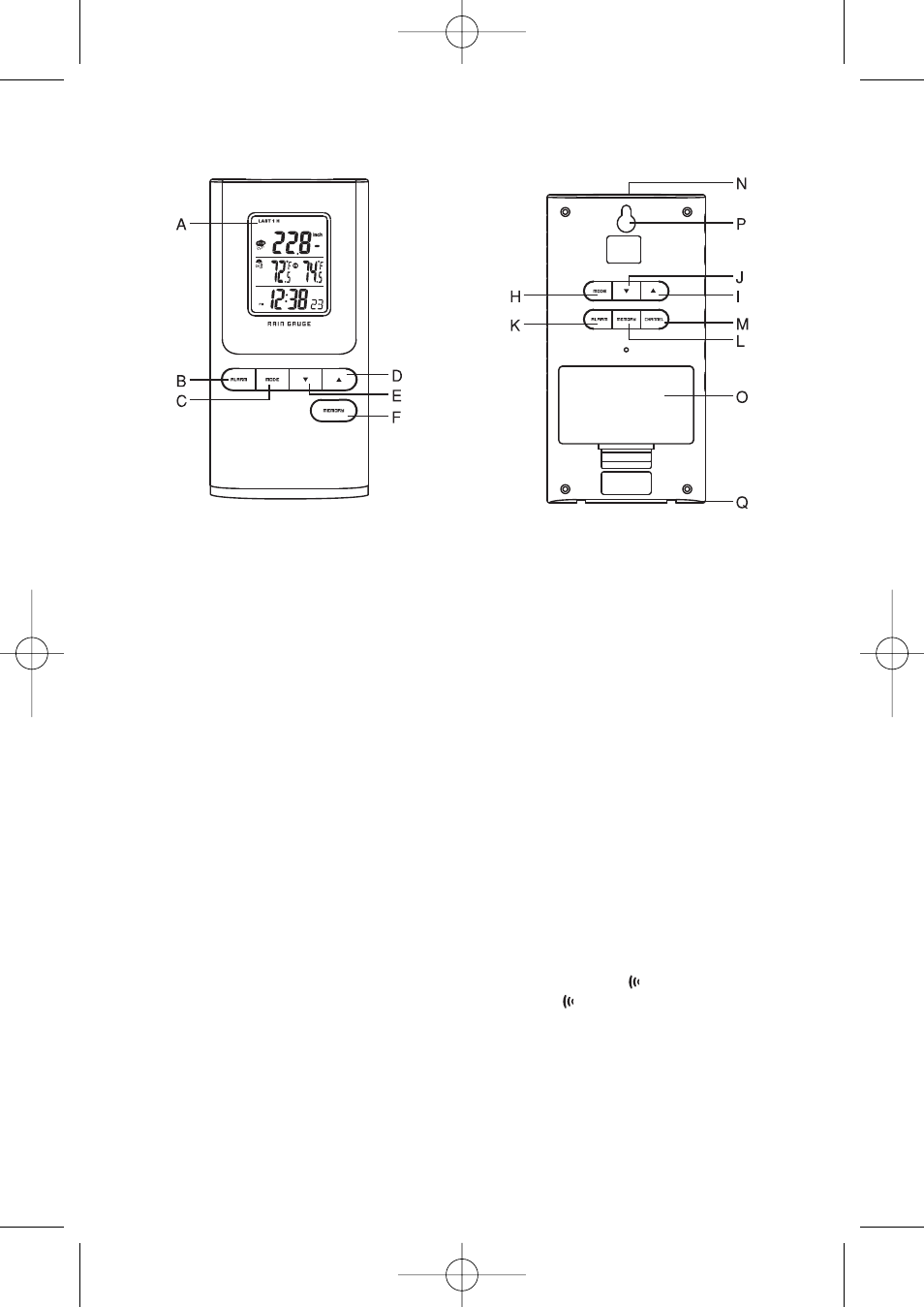

FRONT VIEW

(MAIN RECEIVER UNIT)

(RAIN MODE CONTROL PANEL)

C. MODE button

• Toggles between the rainfall modes –

for the past hour, 24 hours, and for the
past 7 days

D. UP ▲ button

• Toggles between the rainfall modes –

for the past hour, 24 hours, and for the
past 7 days

• Increases all function parameters; press

and hold for rapid increase

• Enables or disables rain alarm

E. DOWN ▼ button

• Toggles between the rainfall modes –

for past hour, for the past 24 hours, and
for the past 7 days

• Decreases all function parameters; press

and hold for rapid decrease

• Enables or disables high rain alarm
• Enforces the remote rain gauge signal

F. MEMORY button

• Toggles between the rainfall memory

modes – for the past hour, 24 hours, and
for the past 7 days

• Clears the memory

REAR VIEW

(MAIN RECEIVER UNIT)

(TIME AND TEMPERATURE CONTROLS PANEL)

H. MODE button

• Toggles between four clock modes –

time with seconds, time with the day
of the week, Time Zone programming
and calendar

I. UP ▲ button

• Increases all time and temperature

function parameters

• Enables the time alarms

J . DOWN ▼ button

• Decreases all time and temperature

function parameters

• Disables the time alarms
• Enforces the remote temperature sensor

signal search

K. ALARM button

• Toggles between the alarm modes –

weekday alarm (

), single

alarm (

) and ice warning

alarm (Pre-AL)

L. MEMORY button

• Toggles between current, minimum and

maximum readings of the indoor and
remote temperatures

• Clears the memory
