OPERATING INSTRUCTIONS
WHAT’S IN THE CASE
The DTH3007SD comes fully assembled in a carrying case along with a temperature-
humidity probe, a 2 GB SD memory card and this user’s manual.
Optional accessories available from General Tools & Instruments include:
• Type K and Type J thermocouples
• A 9VDC adapter for a 110VAC power supply
• A carrying case
See the Optional Accessories section of this manual for more details.
Figure 1 shows all of the controls and indicators on the front, right side, back, top and
bottom of the DTH3007SD. It also shows the main components of the included
temperature-humidity probe. Familiarize yourself with the positions and functions of these
controls, indicators and connectors before moving on to the setup procedure.

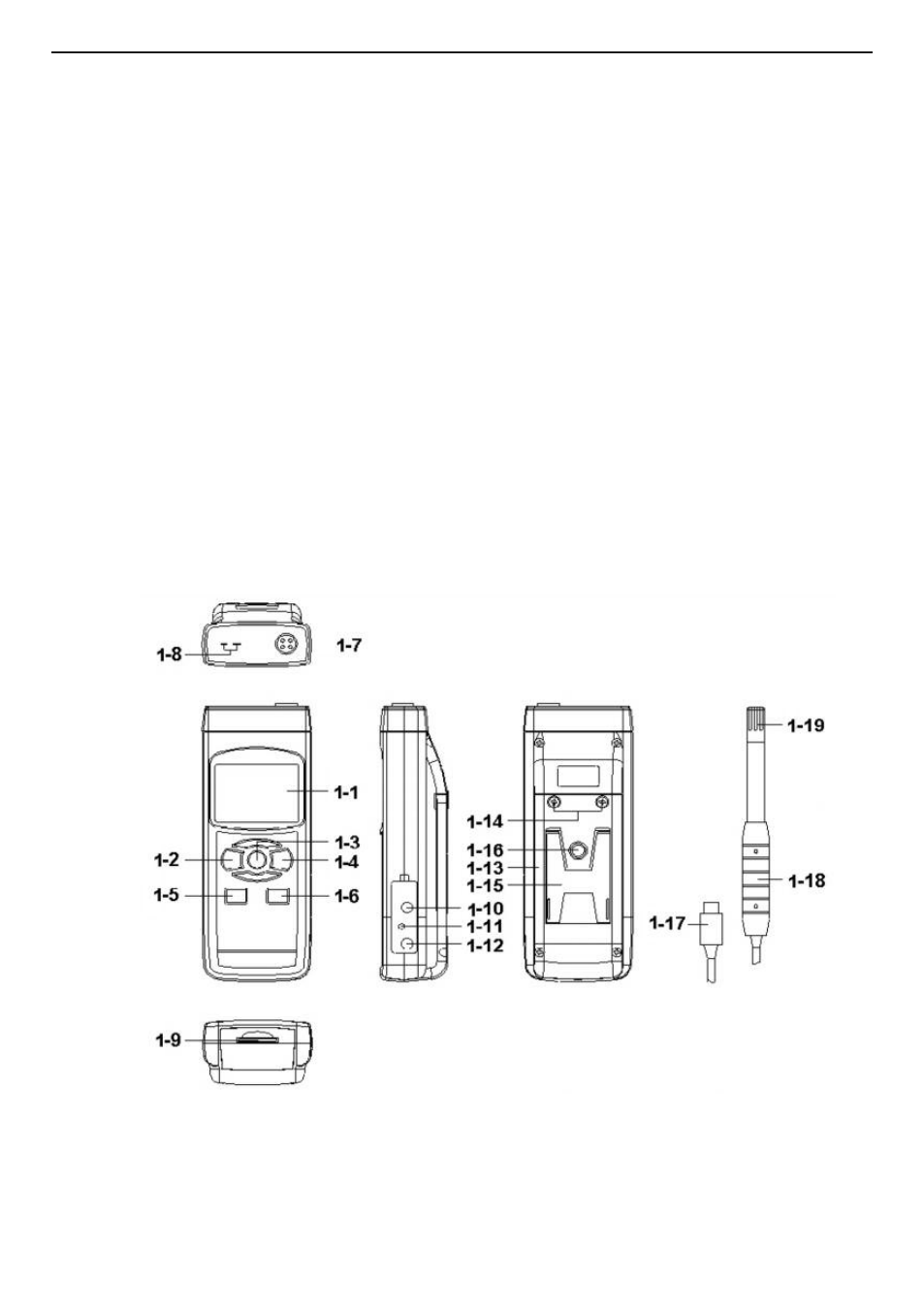

Fig. 1. The DTH3007SD’s controls and indicators and other physical features
4
TOP
RIGHT
SIDE
TEMPERATURE-
HUMIDITY PROBE
BACK
BOTTOM
FRONT
