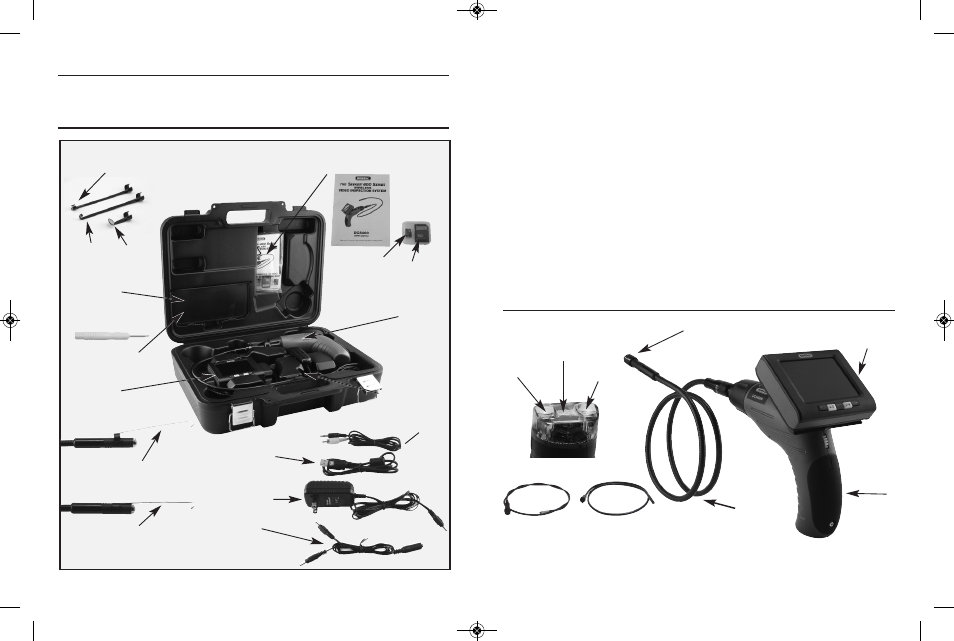

Inside the case in Fig.1 you’ll find several key components of the Seeker sys-
tem stored in the top half of the carrying case. One is a plastic bag that is
taped to the inside of the top. Inside it are the unit’s instruction manual (#1) and
a small plastic case (#2) containing a Micro SD memory card (#3) and a Micro
SD to full size SD card adapter (#4). At the lower left of the lid there is a sepa-
rate compartment (#5) housing applicable accessories. Each system includes
a mini screwdriver (#9) and for the 12mm DCS400 there are 3 accessory tips,
a 45 degree mirror (#6), a hook retrieval tip (#7), and a magnetic retrieval tip (#8).
Each tip can be attached to the camera head by snapping it onto the flats on
either side of the head near its end (#10).
The bottom of the carrying case securely houses the CameraScope (#11), along
with its charger (#12), the split output charging cable (#13), and two connect-
ing cables (#14, #15) for uploading or viewing stored images. The charger is a
120-volt/240-volt AC adapter which interfaces with the one-into-two charging
cable (#13). The connecting cables include a USB interface cable (#14) and a
video cable (#15) for connecting the system to a computer or remote monitor.
CHAPTER 2: IN-DEPTH PRODUCT OVERVIEW
MAIN COMPONENTS
Fig.2
The Seeker system has three main components (Fig.2): first is the pistol grip
handle (#1) which controls the on/off functioning of the probe as well as the
9 8
PRODUCT COMPONENTS
The SEEKER™400 Wireless Video Recording Inspection System
CHAPTER 1: A ONE MINUTE OVERVIEW
Fig.1 #1
Instruction Manual
#4
LED Light
#4
LED Light
#3
Camera
12mm Probe Tip
9mm Probe 5.5mm Probe
#2
1 Meter Long
Probe
#6
Detachable and
Wireless Monitor
#1
Pistol Grip
Handle
#5
Black Rubber
Protective Cover
#8
Magnetic Retrieval Tip
#5
Accessory
Compartment
#7
Hook
Retrieval
#6
45º Mirror
#11
Detachable
Wireless Monitor
#9
Small Screwdriver
#10
Attaching the Accessory Tips
#10
Accessory Tip Attached
#2
Plastic
Case
#3
2GB Micro
SD Card
#15
Video Cable
#11
Probe & Handle
#14
USB Connecting Cable
#12 Charger
#13
1 into 2
Charging Cable
#4
SD Card
Adapter
