Fairbanks Trident Precast Concrete Deck Truck Scale User Manual
Page 22
Section 3: Scale Installation
04/11
22
51255 Rev. 2
•

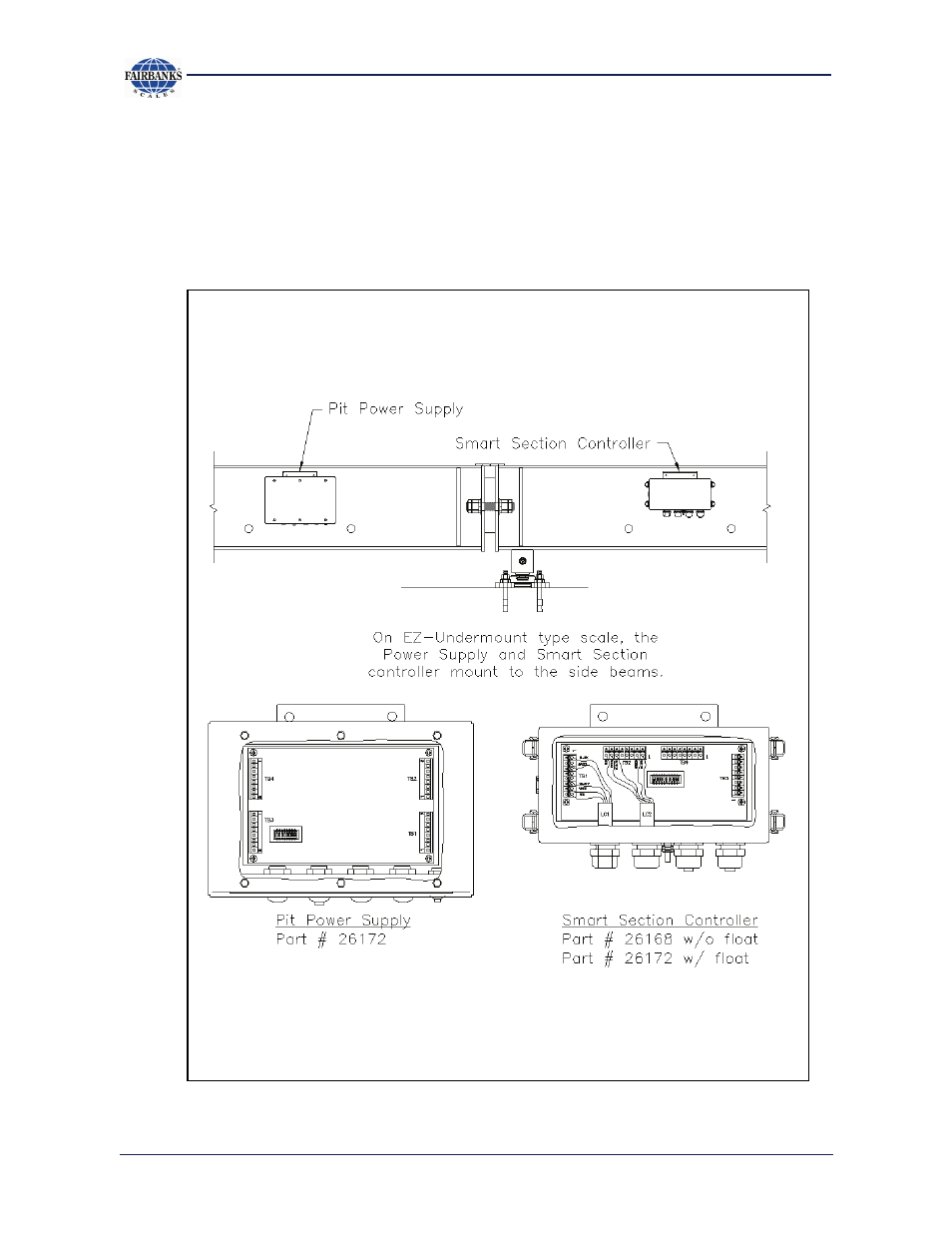

Complete installation: Once all cables have been run and wiring is complete
(See section 4), tighten all the cables and hang them on the cable hangers to
get them out of sight and off the ground. In a correct installation, the only
cables visible are those coming out of the holes in the side beam to the SSC
or PPS. See photo below:
Undermount model:
51255-10
Undermount model
