Section 3: Scale Installation
04/11 17 51255 Rev. 2
For cover plated model:
a. Install interlocking pin into hole on top of the load block of the panel
already resting on locating tools.
b. Guide the modules into place with the deck seats on the end of the module
coming to rest on the center module load block interlocking pins. Lower
the other end of the module onto the load cell locating tools or blocks.
b. Before releasing tension on the cables, check the alignment of the end
modules to the center module and to the end wall.

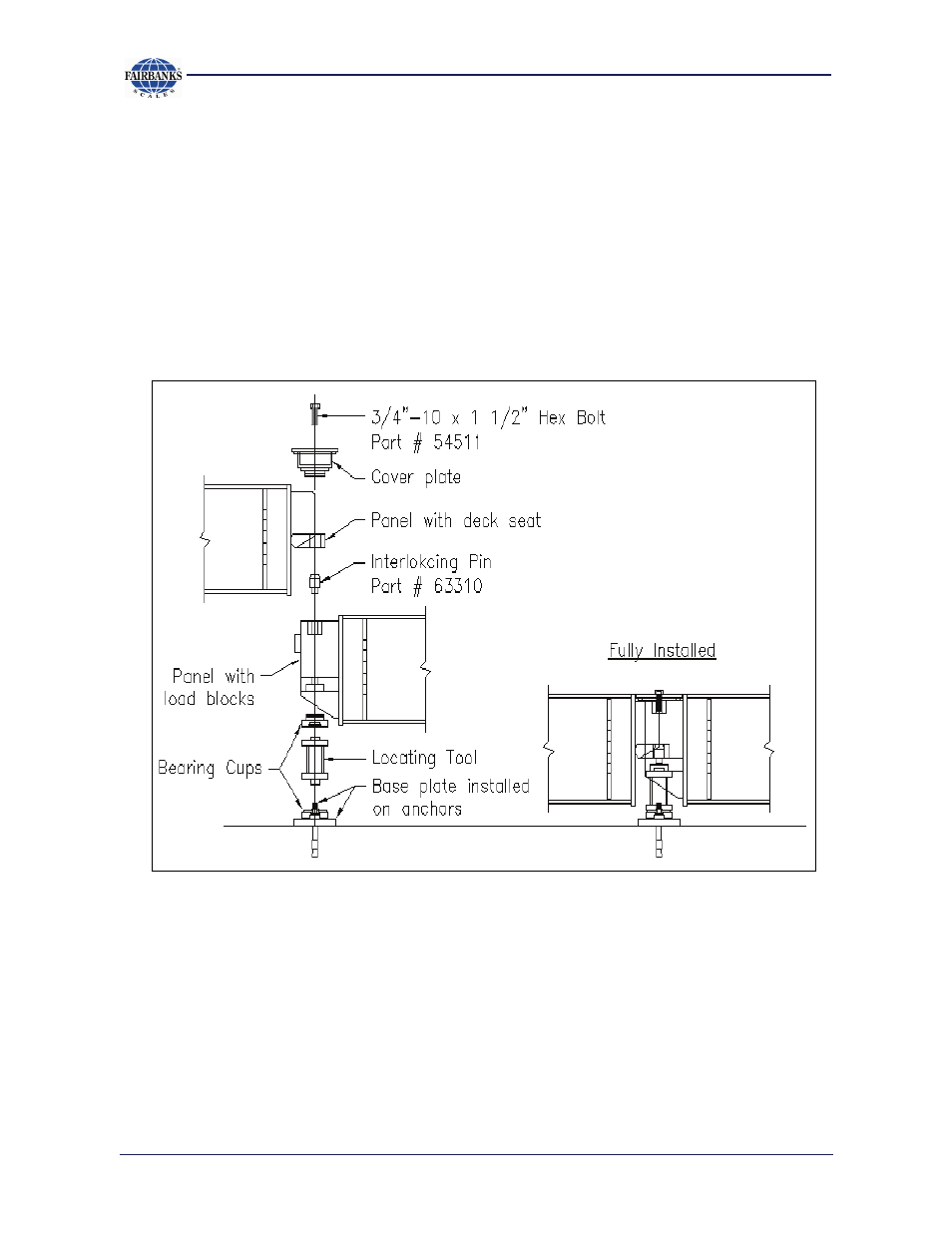

51255-4 Cover plate model panel block detail
