Section 3: Scale Installation
04/11 16 51255 Rev. 2
F. Setting end modules
For undermount model:
•
Module Placement: Guide the modules into place with the supporting blocks
on the end of the module coming to rest on the supporting blocks of the
center module. Lower the other end of the module onto the load cell locating
tools or blocks. (See Figure 51255-3).
a. Before releasing tension on the cables, check the alignment of the end
modules to the center module and to the end wall.
• Use the provided shims to set height and fill any gaps on the supporting blocks to
get the modules aligned.
b. Repeat this process for the other end module or for the interior module.

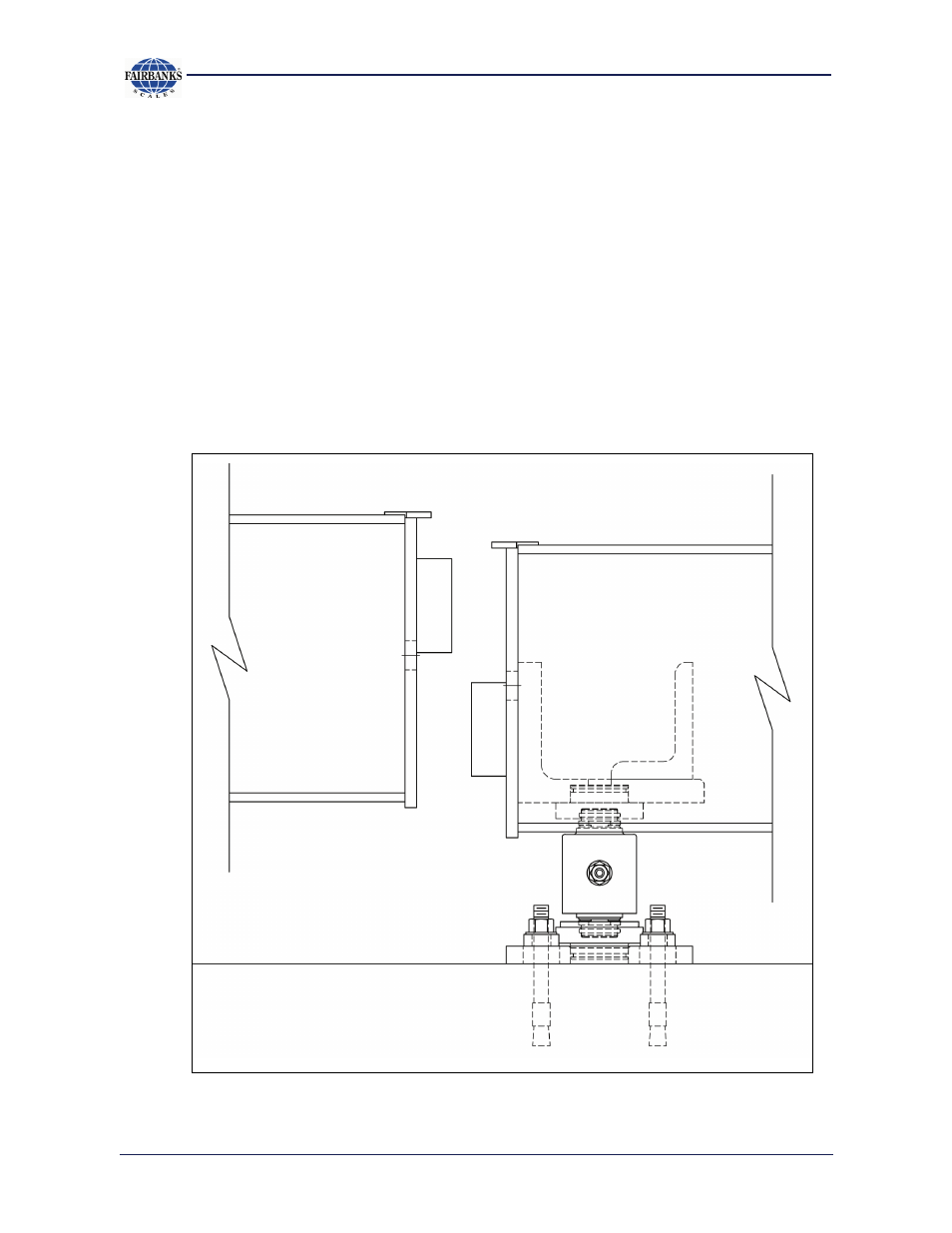

Undermount model panel block detail 51255-3
