Fairbanks 6020 Titan Series User Manual
Page 9
6. Secure the subframes to the support piers using anchor bolts (1 per corner, 4 total
per subframe.).
7. Lift and set the steel bulkheads, if purchased, and bolt to the subframe ends.
Secure the steel bulkheads to the support piers using anchor bolts (4 bolts per
bulkhead, 8 total). See drawing below.
8. Verify that there is equal dead load on all load cells (dead load will be higher on
middle load cells of 60’, 70' and 80' scale installations.) Add or remove shims as
needed to adjust the dead load.
9. Adjust side and end checking per certified prints.
10. Proceed to the electrical installation section to complete the installation.

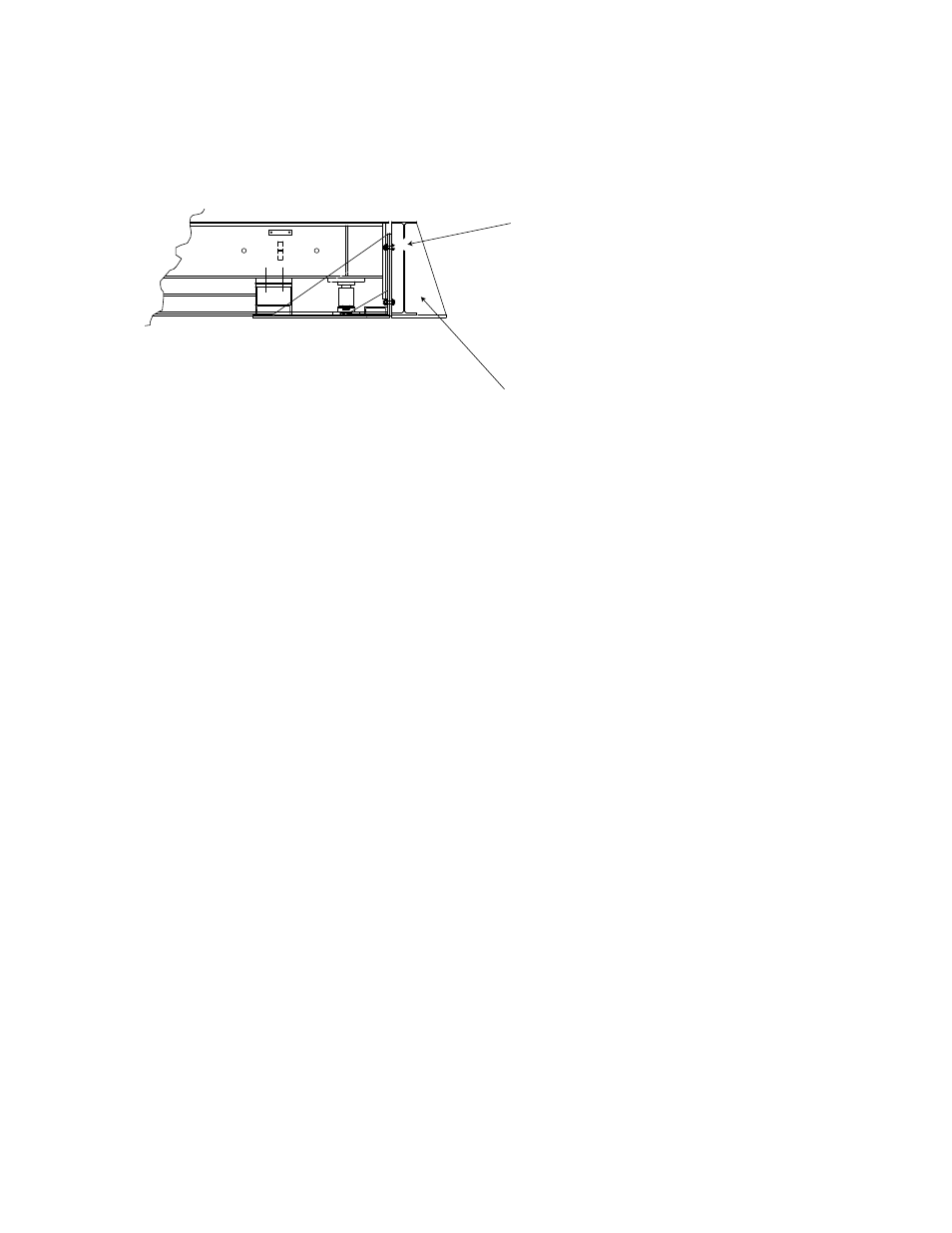

¾" x 2¼" Hex Bolts
(Included as part of
optional bulkheads)
Optional bulkhead option
(when ordered with scale)
50753
9
12/12 -- Issue 5
