A. Parts List
Part No.
Description
75458
1 1/8" - x 4 1/2" w/ nut (module - module)
54788
1 1/8" lock washer (module - module)
54255
1 1/8" flat washer (module - module)
80955
Load Cell Base Plate
61743
Clamp Bar Washer (base plates)
62857
5/8" x 6" Anchor Bolts
55010
Ground Rod Kit
B. Load Cells and Load Cell Hardware
Part No.
Description
80453
Load Cell, 6" RC, 100K, 1000 ohm, 2mv/v
73682
Shim, receiver cup, 1/16"
64338
Shim, receiver cup, 1/8"
64334
Shim, receiver cup, 3/16"
72274
"O" Ring, INSIDE of Cup, ANSI #222
64340
"O" Ring, OUTSIDE of Cup ANSI #228
70511
Receiver Cup, LOWER (w/ anti-rotation pin)
70512
Receiver Cup, UPPER
64382
Roll Pin, 1/2" x 2½" anti-rotation, baseplate
63981
Anti-Rotation Pin, LOWER Receiver Cup 3/8" x 2 ½"
71717
Locating Tool 5½"
Section 6: Parts
"O" RING
LOAD CELL
CABLE HANGER
(INSIDE FACE
OF SCALE)
CABLE HOLES
BASE PLATE
FOR INITIAL INSTALLATION
USE (1) 1/8" SHIM
UPPER L.C. RECEIVER
CUP, ITEM #5
CUP, ITEM #4
LOWER L.C. RECEIVER
6" LOAD CELL
ITEM # 3

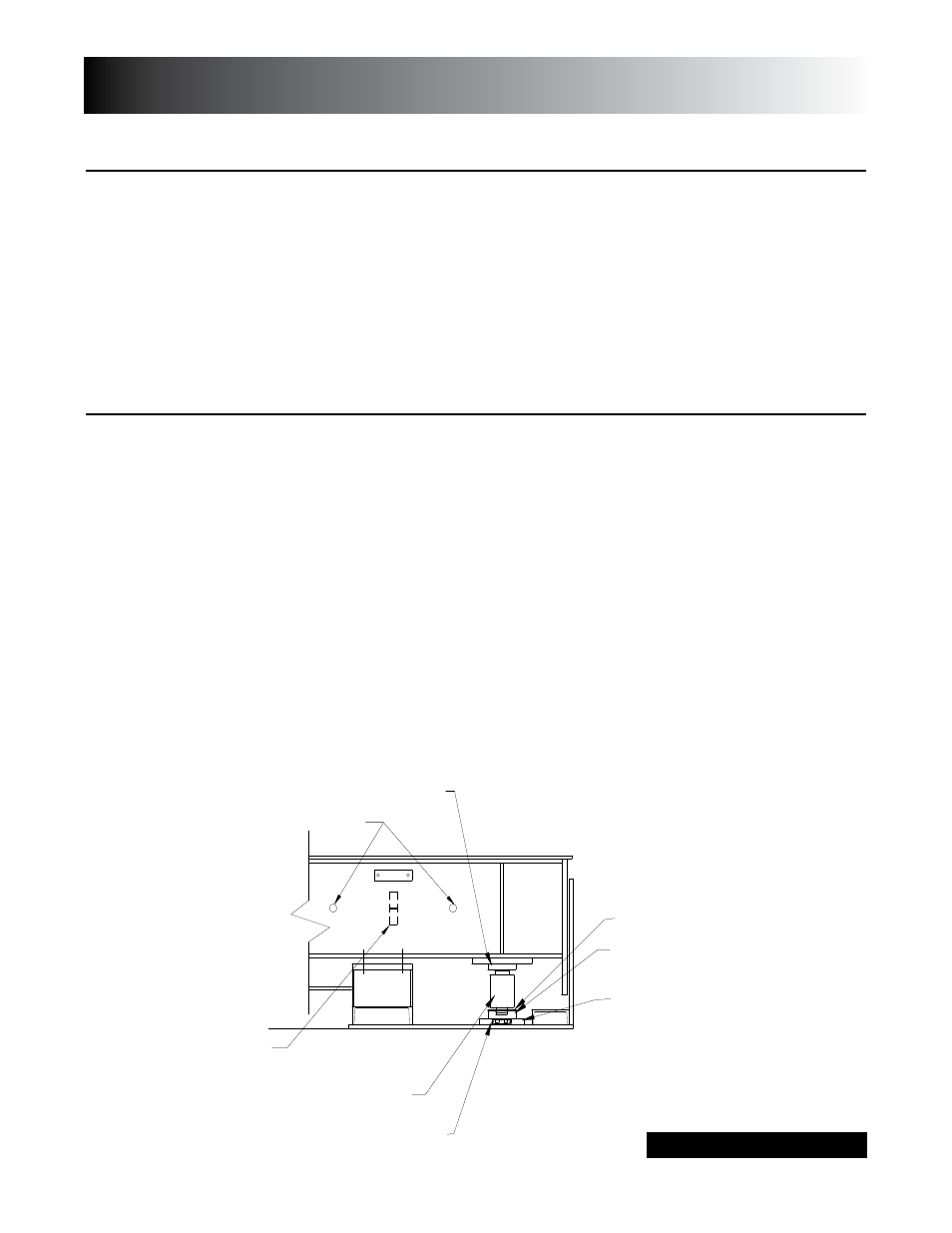

Load cell assembly detail
