2. If installing a single module scale, proceed to step 5. The installation of a mutiple
module scale varies slightly from the installation of a single module scale. Follow
the steps as identified for the size scale you are installing.
3. The 60' and 70’ scales are two module scales. With the first 27’, 30', or 35’ module
already in place, lift and set the second 27, 30', or 35’ module assembly so that the
end with the step plates is set on the first module step plates. Place the module so
both subframes are in line and touching. Bolt the two subframes together, 2 bolts,
and proceed to step 5.
4. The 80' scales are comprised of three modules. With the first 27' module already in
place with the step block end away from the first approach, near the next module,
lift and set the next module and place it at the end of the first.
5. Remove the shipping bolts that retain the 27’, 30', or 35’ weighbridges to the
subframes (2 bolts per corner, 8 bolts total per 27’, 30', or 35’ module).

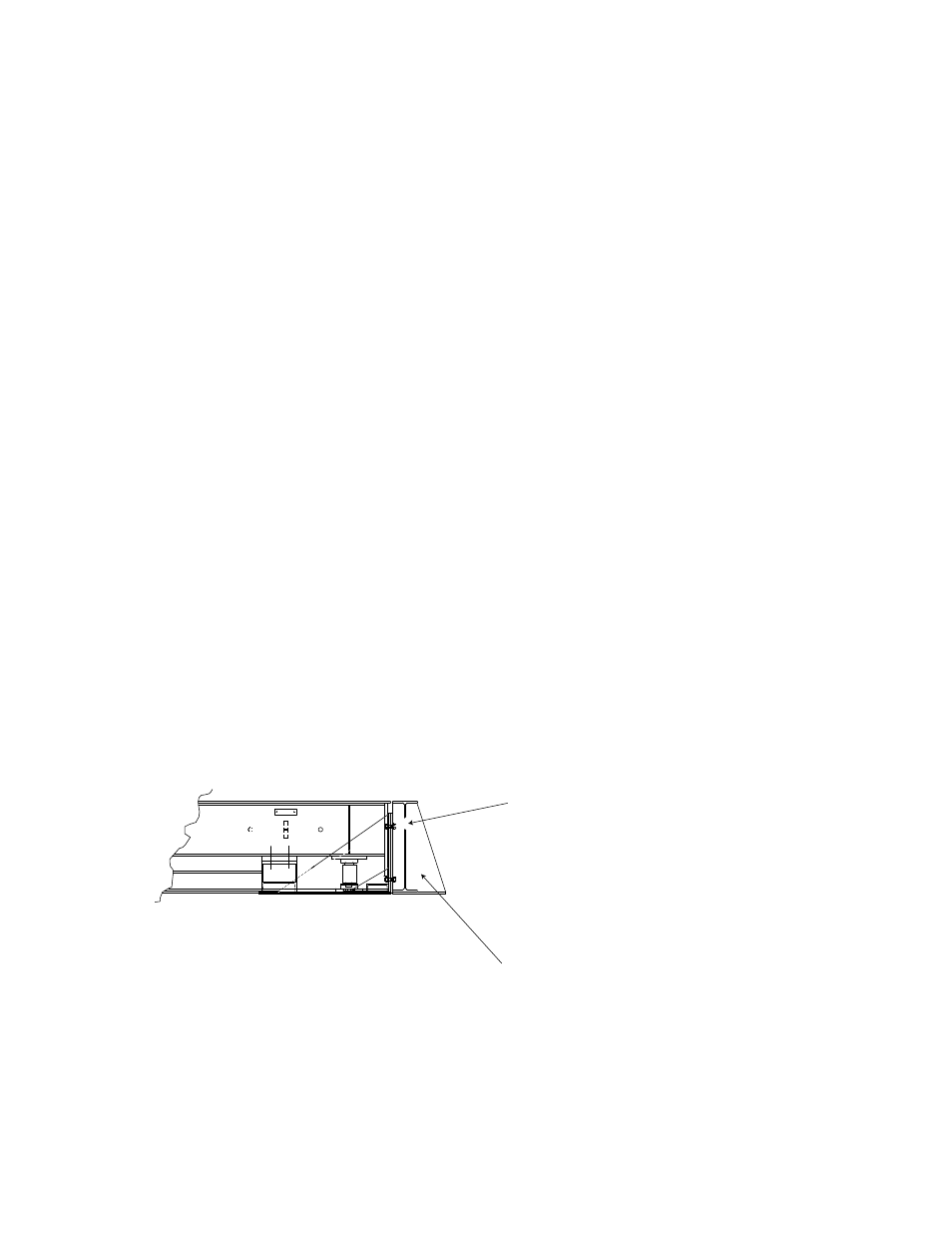

See drawing below.
¾" x 2¼" Hex Bolts
(Included as part of
optional bulkheads)
Optional bulkhead option
(when ordered with scale)
