SOLENOID SHIFTED AIR VALVE PARTS LIST
(Includes all items used on Composite Repair Parts List except as shown)
ITEM PART NUMBER DESCRIPTION QTY
57 893-097-000 Solenoid Valve, NEMA4 1
58 219-001-000 Solenoid Coil, 24VDC 1
219-004-000 Solenoid Coil, 24VAC/12VDC 1
219-002-000 Solenoid Coil, 120VAC 1
219-003-000 Solenoid Coil, 240VAC 1
59 241-001-000 Connector, conduit 1
60 170-061-115 Capscrew, Hex HD 3/8-16 x 1.75 4
61 618-052-506 Plug 2
For Explosion Proof Solenoid Valve
(Connector not required for explosion proof coil; coil is integral with valve)
57
893-098-001 Solenoid Valve, NEMA 7/9, 24VDC 1
893-098-002 Solenoid Valve, NEMA 7/9, 24VAC/12VDC 1
893-098-003 Solenoid Valve, NEMA 7/9, 120VAC 1
893-098-004 Solenoid Valve, NEMA 7/9, 220VAC 1

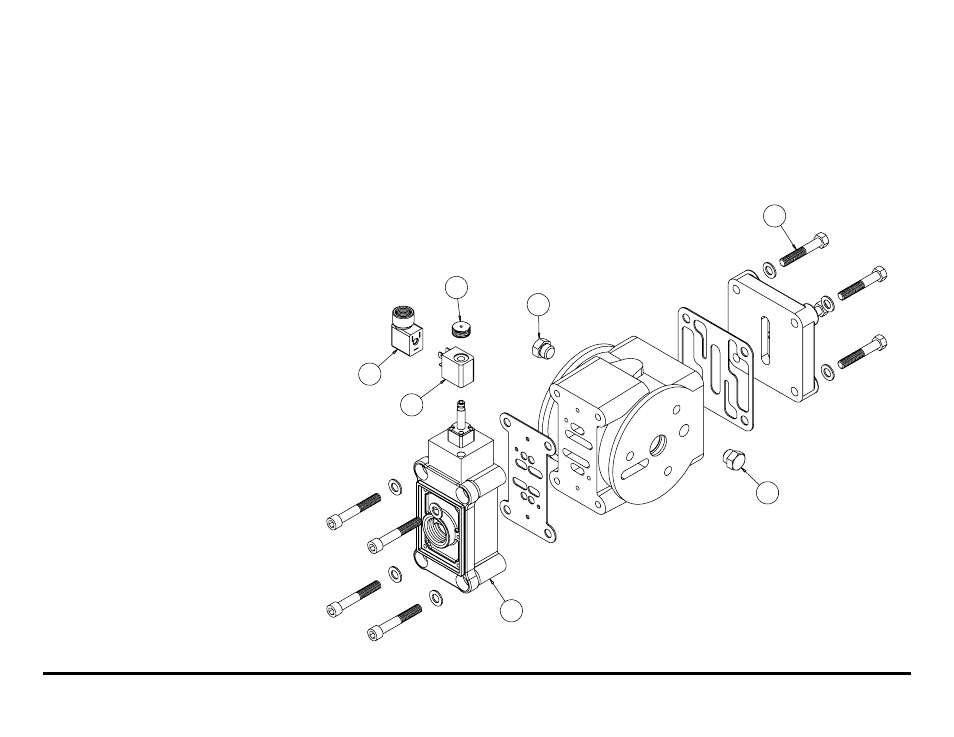

Solenoid Shifted Air Valve Drawing
57
61
59
58
57
61
60
