s30nmdl2sm-rev0312 Model B75 Non-Metallic Design Level 2 Page 12
2/07 Model B75 Non-Metallic Design Level 2 Page 9
MATERIAL CODES
The Last 3 Digits of Part Number
000 ........ Assembly, sub-assembly; and some purchased
items
010 ........ Cast Iron
012 ......... Powered Metal
015 ......... Ductile Iron
020 ......... Ferritic Malleable Iron
025 ........ Music Wire
080 ........ Carbon Steel, AISI B-1112
100 ........ Alloy 20
110 ........ Alloy Type 316 Stainless Steel
111 ........ Alloy Type 316 Stainless Steel (Electro Polished)
112 ........ Alloy “C” (Hastelloy equivalent)
113 ......... Alloy Type 316 Stainless Steel (Hand Polished)
114 ......... 303 Stainless Steel
115 ......... 302/304 Stainless Steel
117 ......... 440-C Stainless Steel (Martensitic)
120 ......... 416 Stainless Steel (Wrought Martensitic)
123 ......... 410 Stainless Steel (Wrought Martensitic)
148 ........ Hardcoat Anodized Aluminum
149 ........ 2024-T4 Aluminum
150 ........ 6061-T6 Aluminum
151 ........ 6063-T6 Aluminum
152 ........ 2024-T4 Aluminum (2023-T351)
154 ........ Almag 35 Aluminum
155 ........ 356-T6 Aluminum
156 ........ 356-T6 Aluminum
157 ........ Die Cast Aluminum Alloy #380
158 ........ Aluminum Alloy SR-319
159 ......... Anodized Aluminum
162 ......... Brass, Yellow, Screw Machine Stock
165 ........ Cast Bronze, 85-5-5-5
166 ........ Bronze, SAE 660
170 ........ Bronze, Bearing Type, Oil Impregnated
175 ........ Die Cast Zinc
180 ........ Copper Alloy
305 ........ Carbon Steel, Gray Epoxy Coated
306 ......... Carbon Steel, Black PTFE Coated
307 ........ Aluminum, Gray Epoxy Coated
308 ......... Stainless Steel, Black PTFE Coated
309 ......... Aluminum, Black PTFE Coated
310 ......... Kynar Coated
330 ......... Zinc Plated Steel
331 ........ Chrome Plated Steel
332 ........ Aluminum, Electroless Nickel Plated
333 ........ Carbon Steel, Electroless Nickel Plated
335 ........ Galvanized Steel
336 ........ Zinc Plated Yellow Brass
337 ........ Silver Plated Steel
340 ........ Nickel Plated
342 ........ Filled Nylon
353 ......... Geolast; Color: Black
354 ........ Injection Molded #203-40 Santoprene - Duro 40D
+/-5; Color: RED
355 ........ Thermal Plastic
356 ........ Hytrel
357 ........ Injection Molded Polyurethane
358 ........ Rupplon (Urethane Rubber). Color coded:
PURPLE (Some Applications) (Compression Mold)
359 ........ Urethane Rubber
360 ........ Buna-N Rubber. Color coded: RED
361 ........ Buna-N
363 ........ Viton (Flurorel). Color coded: YELLOW
364 ........ E.P.D.M. Rubber. Color coded: BLUE
365 ........ Neoprene Rubber. Color coded: GREEN
366 ........ Food Grade Nitrile
368 ........ Food Grade EPDM
370 ........ Butyl Rubber. Color coded: BROWN
371 ........ Philthane (Tuftane)
374 ......... Carboxylated Nytrile
375 ........ Fluorinated Nitrile
378 ........ High Density Polypropylene
405 ........ Cellulose Fibre
408 ........ Cork and Neoprene
425 ........ Compressed Fibre
426 ........ Blue Gard
440 ........ Vegetable Fibre
465 ........ Fibre
500 ........ Delrin 500
501 ........ Delrin 570
502 ........ Conductive Acetal, ESD-800
503 ........ Conductive Acetal, Glass-Filled
505 ........ Acrylic Resin Plastic
506 ........ Delrin 150
520 ........ Injection Molded PVDF Natural color
540 ........ Nylon
541 ........ Nylon
542 ........ Nylon
544 ........ Nylon Injection Molded
550 ........ Polyethylene
551 ......... Glass Filled Polypropylene
552 ......... Unfilled Polypropylene
553 ......... Unfilled Polypropylene
555 ......... Polyvinyl Chloride
556 ......... Black Vinyl
570 ......... Rulon II
580 ......... Ryton
590 ......... Valox
591 ......... Nylatron G-S
592 ........ Nylatron NSB
600 ......... Virgin PTFE
601 ......... PTFE (Bronze and moly filled)
602 ......... Filled PTFE
603 ........ Blue Gylon
604 ......... Virgin PTFE
607 ........ Envelon
606 ......... Injected molded PFA
610 ........ Encapsulated Silicon
611 ........ Encapsulated Viton
632 ......... Neoprene/Hytrel
633 ......... Viton/PTFE
634 ......... EPDM/PTFE
637 ......... PTFE, Viton
638 ......... PTFE, Hytrel
639 ......... Buna-N
643 ......... Santoprene
® /EPDM
644 ......... Santoprene ®
Delrin, Viton and Hytrel are registered tradenames of
E.I. DuPont.
Gylon is a registered tradename of Garlock, Inc.
Nylatron is a registered tradename of Polymer Corp.
Santoprene is a registered tradename of Monsanto Corp.
Rulon II is a registered tradename of Dixion Industries Corp.
Hastelloy-C is a registered tradename of Cabot Corp.
Ryton is a registered tradename of Phillips Chemical Co.
Valox is a registered tradename of General Electric Co.

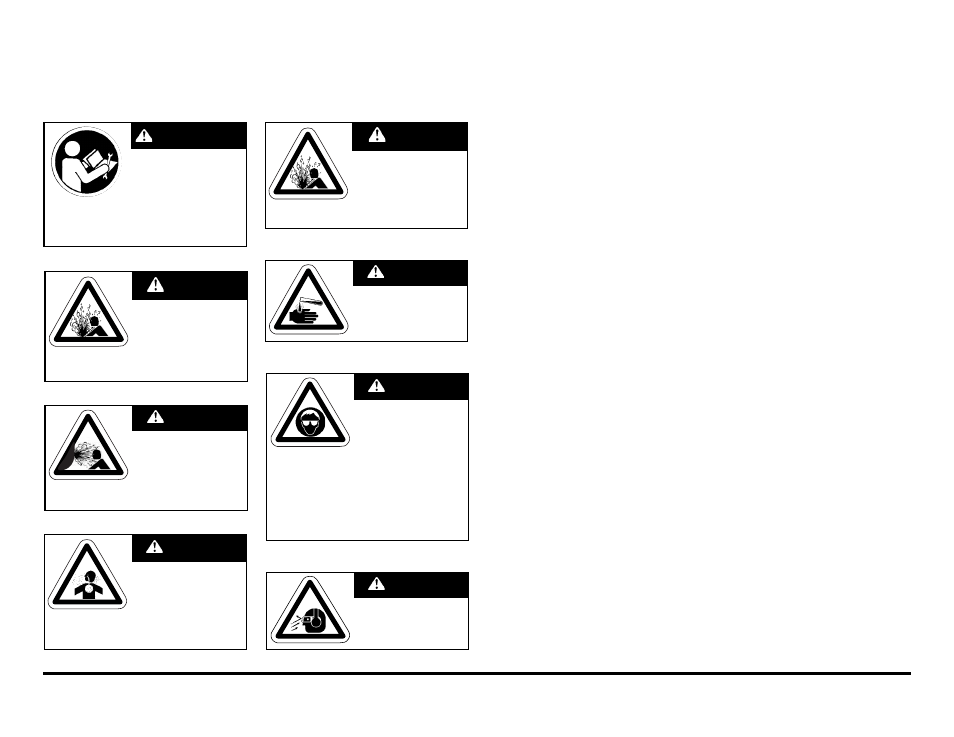

This pump is pressurized
internally with air pressure
during operation. Always
make certain that all bolting
is in good condition and that
all of the correct bolting is reinstalled during
assembly.
WARNING
Before pump operation,
inspect all gasketed
fasteners for looseness
caused by gasket creep.
Re-torque loose fasteners
to prevent leakage. Follow recommended
torques stated in this manual.
CAUTION
When used for toxic or
aggressive fluids, the pump
should always be flushed
clean prior to disassembly.
WARNING
Before maintenance or
repair, shut off the com-
pressed air line, bleed the
pressure, and disconnect
the air line from the pump.
The discharge line may be pressurized and
must be bled of its pressure.
WARNING
IMPORTANT
Read these safety warnings
and instructions in this
manual completely, before
installation and start-up
of the pump. It is the
responsibility of the purchaser to retain this
manual for reference. Failure to comply with
the recommendations stated in this manual will
damage the pump, and void factory warranty.
WARNING
Airborne particles and loud
noise hazards.
Wear ear and eye protection.
WARNING
In the event of diaphragm
rupture, pumped material
may enter the air end of the
pump, and be discharged
into the atmosphere. If
pumping a product which is hazardous or toxic,
the air exhaust must be piped to an appropriate
area for safe disposition.
IMPORTANT SAFETY
INFORMATION
Before doing any main-
tenance on the pump, be
certain all pressure is
completely vented from the
pump, suction, discharge,
piping, and all other openings and connections.
Be certain the air supply is locked out or made
non-operational, so that it cannot be started while
work is being done on the pump. Be certain that
approved eye protection and protective clothing
are worn all times in the vicinity of the pump.
Failure to follow these recommendations may
result in serious injury or death.
WARNING
MATErIAl COdES
ThE lAST 3 dIgITS Of PArT NUMbEr
000 Assembly, sub-assembly;
and some purchased items
010 Cast Iron
012 Powered Metal
015 Ductile Iron
020 Ferritic Malleable Iron
025 Music Wire
080 Carbon Steel, AISI B-1112
100 Alloy 20
110 Alloy Type 316 Stainless Steel
111 Alloy Type 316 Stainless Steel
(Electro Polished)
112 Alloy C
113 Alloy Type 316 Stainless Steel
(Hand Polished)
114 303 Stainless Steel
115 302/304 Stainless Steel
117 440-C Stainless Steel (Martensitic)
120 416 Stainless Steel
(Wrought Martensitic)
123 410 Stainless Steel
(Wrought Martensitic)
148 Hardcoat Anodized Aluminum
149 2024-T4 Aluminum
150 6061-T6 Aluminum
151 6063-T6 Aluminum
152 2024-T4 Aluminum (2023-T351)
154 Almag 35 Aluminum
155 356-T6 Aluminum
156 356-T6 Aluminum
157 Die Cast Aluminum Alloy #380
158 Aluminum Alloy SR-319
159 Anodized Aluminum
162 Brass, Yellow, Screw Machine Stock
165 Cast Bronze, 85-5-5-5
166 Bronze, SAE 660
170 Bronze, Bearing Type,
Oil Impregnated
175 Die Cast Zinc
180 Copper Alloy
305 Carbon Steel, Black Epoxy Coated
306 Carbon Steel, Black PTFE Coated
307 Aluminum, Black Epoxy Coated
308 Stainless Steel, Black PTFE Coated
309 Aluminum, Black PTFE Coated
310 PVDF Coated
313 Aluminum, White Epoxy Coated
330 Zinc Plated Steel
331 Chrome Plated Steel
332 Aluminum, Electroless Nickel Plated
333 Carbon Steel, Electroless
Nickel Plated
335 Galvanized Steel
336 Zinc Plated Yellow Brass
337 Silver Plated Steel
340 Nickel Plated
342 Filled Nylon
351 Food Grade Santoprene
353 Geolast; Color: Black
354 Injection Molded #203-40
Santoprene- Duro 40D +/-5;
Color: RED
355 Thermal Plastic
356 Hytrel
357 Injection Molded Polyurethane
358 Urethane Rubber
(Some Applications)
(Compression Mold)
359 Urethane Rubber
360 Nitrile Rubber Color coded: RED
361 Nitrile
363 FKM (Fluorocarbon).
Color coded: YELLOW
364 E.P.D.M. Rubber.
Color coded: BLUE
365 Neoprene Rubber.
Color coded: GREEN
366 Food Grade Nitrile
368 Food Grade EPDM
370 Butyl Rubber
Color coded: BROWN
371 Philthane (Tuftane)
374 Carboxylated Nitrile
375 Fluorinated Nitrile
378 High Density Polypropylene
379 Conductive Nitrile
405 Cellulose Fibre
408 Cork and Neoprene
425 Compressed Fibre
426 Blue Gard
440 Vegetable Fibre
465 Fibre
500 Delrin 500
501 Delrin 570
502 Conductive Acetal, ESD-800
503 Conductive Acetal, Glass-Filled
505 Acrylic Resin Plastic
506 Delrin 150
520 Injection Molded PVDF
Natural color
540 Nylon
541 Nylon
542 Nylon
544 Nylon Injection Molded
550 Polyethylene
551 Glass Filled Polypropylene
552 Unfilled Polypropylene
553 Unfilled Polypropylene
555 Polyvinyl Chloride
556 Black Vinyl
558 Conductive HDPE
570 Rulon II
580 Ryton
590 Valox
591 Nylatron G-S
592 Nylatron NSB
600 PTFE (virgin material)
Tetrafluorocarbon (TFE)
601 PTFE (Bronze and moly filled)
602 Filled PTFE
603 Blue Gylon
604 PTFE
606 PTFE
607 Envelon
608 Conductive PTFE
610 PTFE Encapsulated Silicon
611 PTFE Encapsulated FKM
632 Neoprene/Hytrel
633 FKM/PTFE
634 EPDM/PTFE
635 Neoprene/PTFE
637 PTFE, FKM/PTFE
638 PTFE, Hytrel/PTFE
639 Nitrile/TFE
643 Santoprene ® /EPDM
644 Santoprene ® /PTFE
656 Santoprene Diaphragm and
Check Balls/EPDM Seats
661 EPDM/Santoprene
666 FDA Nitrile Diaphragm,
PTFE Overlay, Balls, and Seals
668 PTFE, FDA Santoprene/PTFE
Delrin and Hytrel are registered
tradenames of E.I. DuPont.
Gylon is a registered tradename
of Garlock, Inc.
Nylatron is a registered tradename
of Polymer Corp.
Santoprene is a registered tradename
of Exxon Mobil Corp.
Rulon II is a registered tradename
of Dixion Industries Corp.
Ryton is a registered tradename
of Phillips Chemical Co.
Valox is a registered tradename
of General Electric Co.
