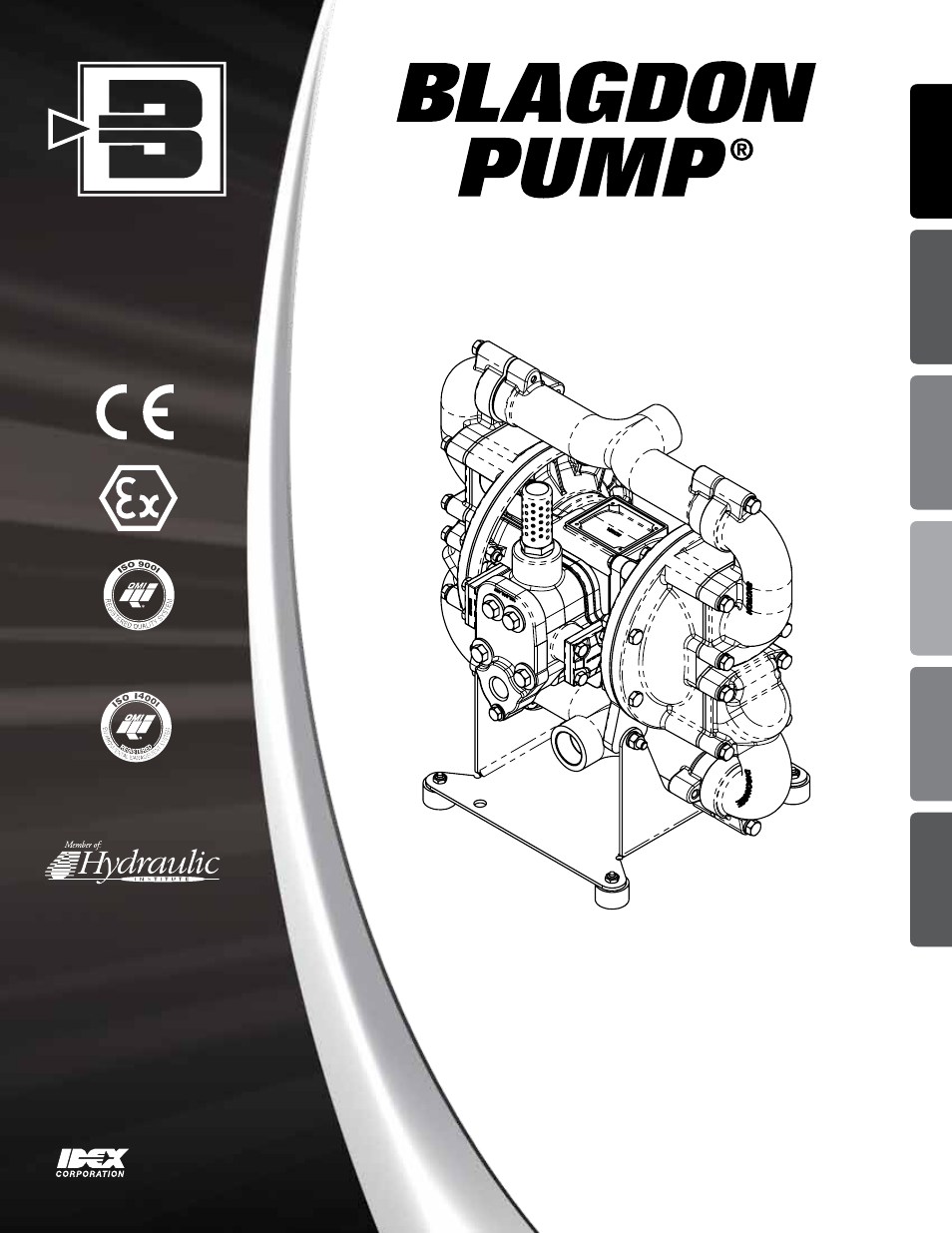

Blagdon Pump X25 Metallic Flap Valve - Manual

Quality System
ISO9001 Certified
Environmental
Management System
ISO14001 Certified
Certified Quality
IDEX Pump Technologies (Ireland) Ltd.
A Unit of IDEX Corporation | R79, Shannon, Co. Clare, IRELAND
TEL: +353 61 471933 | FAX: +353 61 475046 | www.blagdonpump.com
Model X25
Metallic Flap Valve Pump
Design Level 2
2.57
65
6.89
175
"D"
16.73
425
15.59
396
DISCHARGE PORT
1" FNPT (HDF1)
1" BSPT (HDF25)
AIR INLET
1/2" FNPT
14.03
356
2.38
60
"C"
.72
18
8.57
218
"A"
"B"
2.38
60
16.41
417
SUCTION PORT
1" FNPT (HDF1)
1" BSPT (HDF25)
(OPTIONAL 90
PORT ROTATION)
AIR EXHAUST
3/4" FNPT
8.56
217
9.00
229
4X .28 [7] MOUNTING HOLE
NOTE:
UNIT FURNISHED WITH SUB-BASE PLATE
AND RUBBER FEET AS STANDARD. FOR
STATIONARY BOLT DOWN USE, RUBBER
FEET CAN BE REMOVED.
HDF1 / HDF25
HEAVY DUTY FLAP VALVE PUMP
DIMENSIONAL TOLERANCE 1/8 [3]
[XX] = MILLIMETERS
PUMP
COFIGURATION
DIM "A" DIM "B" DIM "C" DIM "D"
ALUMINUM
CENTER SECTION
3.95 [100] 5.86 [149] 11.12 [282] 14.55 [370]
CAST IRON
CENTER SECTION
4.10 [104] 5.54 [141] 10.80 [274] 15.75 [400]
PULSE OUTPUT
CONFIGURATION
SUCTION & DISCHARGE CONNECTIONS
HDF1
1" NPT FEMALE THREADED
CONNECTIONS
HDF25
1" BSP TAPERED FEMALE
THREADED CONNECTIONS
SERVICE & OPERATING MANUAL
Original Instructions
