Blagdon Pump B75 Non-Metallic - Manual (Page 14)

s30nmdl2sm-rev0312 Model B75 Non-Metallic Design Level 2 Page 14
2/07 Model B75 Non-Metallic Design Level 2 Page 11

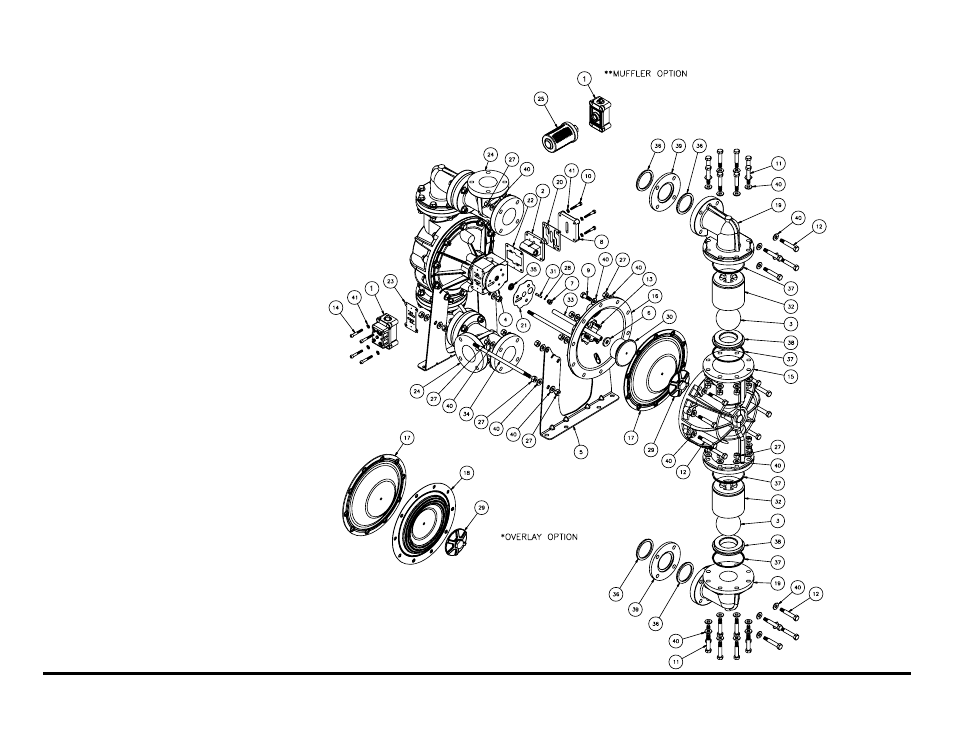

Composite Repair Parts Drawing
AVAILABLE SERVICE AND CONVERSION KITS
476-176-000 AIR END KIT
Seals, O-rings, Gaskets,
Retaining Rings, Air Valve Sleeve &
Spool Set and Pilot Valve Assembly
476-177-000* AIR END KIT (for Stroke Indicator Option)
Seals, O-rings, Gaskets, Retaining
Rings, Air Valve Sleeve & Spool Set
and Pitot Valve Assembly.
476-140-354 WETTED END KIT
Santoprene Diaphragms,
Santoprene Balls and TFE Seals.
476-140-654 WETTED END KIT
Santoprene Diaphragms, PTFE Overlay
Diaphragms, TFE Balls
and TFE Seals.
476-143-354 WETTED END KIT (for Polypropylene)
Santoprene Diaphragms, PTFE Overlay
Diaphragms, PTFE Pumping Diaphragms,
PTFE Balls and PTFE Seals.
476-143-655 WETTED END KIT (for PVDF)
Santoprene Diaphragms, PTFE Overlay
Diaphragms, PTFE Pumping Diaphragms,
PTFE Balls and PTFE Seals.
HARDWARE KITS
475-173-308
PTFE Coated Stainless Steel
Capscrews, Hex Nuts, Washers and
Support Rod
475-174-308 (For use with Options)
PULSE OUTPUT KITS
(For use with 530-010-000 and 530-032-000 Mufflers,
or piped exhaust)
475-198-001
DC Kit
475-198-002 DC Intrinsically Safe Kit
475-198-003 110/120VAC or 220/240VAC Kit
475-198-004 110/120VAC Intrinsically Safe Kit
475-198-005 220/240VAC Intrinsically Safe Kit
(For use with encapsulated 530-028-550 Muffler)
475-198-006
DC Kit
475-198-007 DC Intrinsically Safe Kit
475-198-008 110/120VAC or 220/240VAC Kit
475-198-009 110/120VAC Intrinsically Safe Kit
475-198-010 220/240VAC Intrinsically Safe Kit
ELECTRONIC LEAK DETECTOR KITS
032-037-000
100VAC 50Hz
or 110-120VAC 50-60Hz
or 220-240VAC 50-60Hz
032-045-000 12-32VDC
