BTR TANK TYPE HEATERS
SERVICE HANDBOOK
A.O. Smith Water Products
Service Handbook
Irving, Texas ©2000
Training Department
14

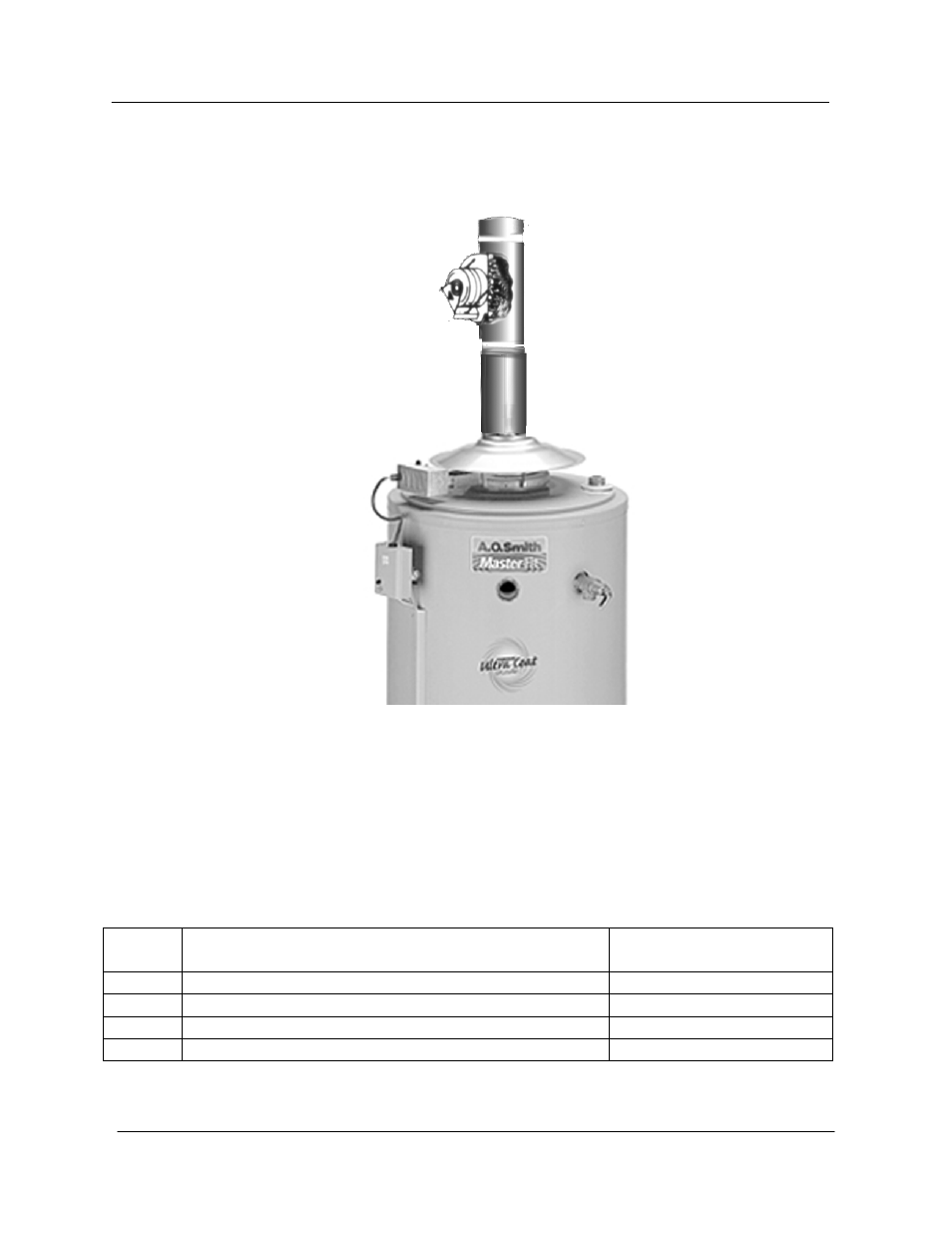

DRAFT INDUCER
Draft inducers can be used with BTR water heaters to mechanically aid a lazy chimney in
vertical vent applications. They are not designed to allow “through-the-wall” vent
installations. (See Power Venter)
SINGLE UNIT INSTALLATION
When mechanically venting, the following items are required:
Qty
Description
Part No.
1
Draft Inducer (up to 300,000Btuh)
90909
1
Draft Inducer (up to 305,000 thru 500,000 Btuh)
90910
1
Draft Prover Switch
95220
1
Relay Switch
96695
