INSTALLATION

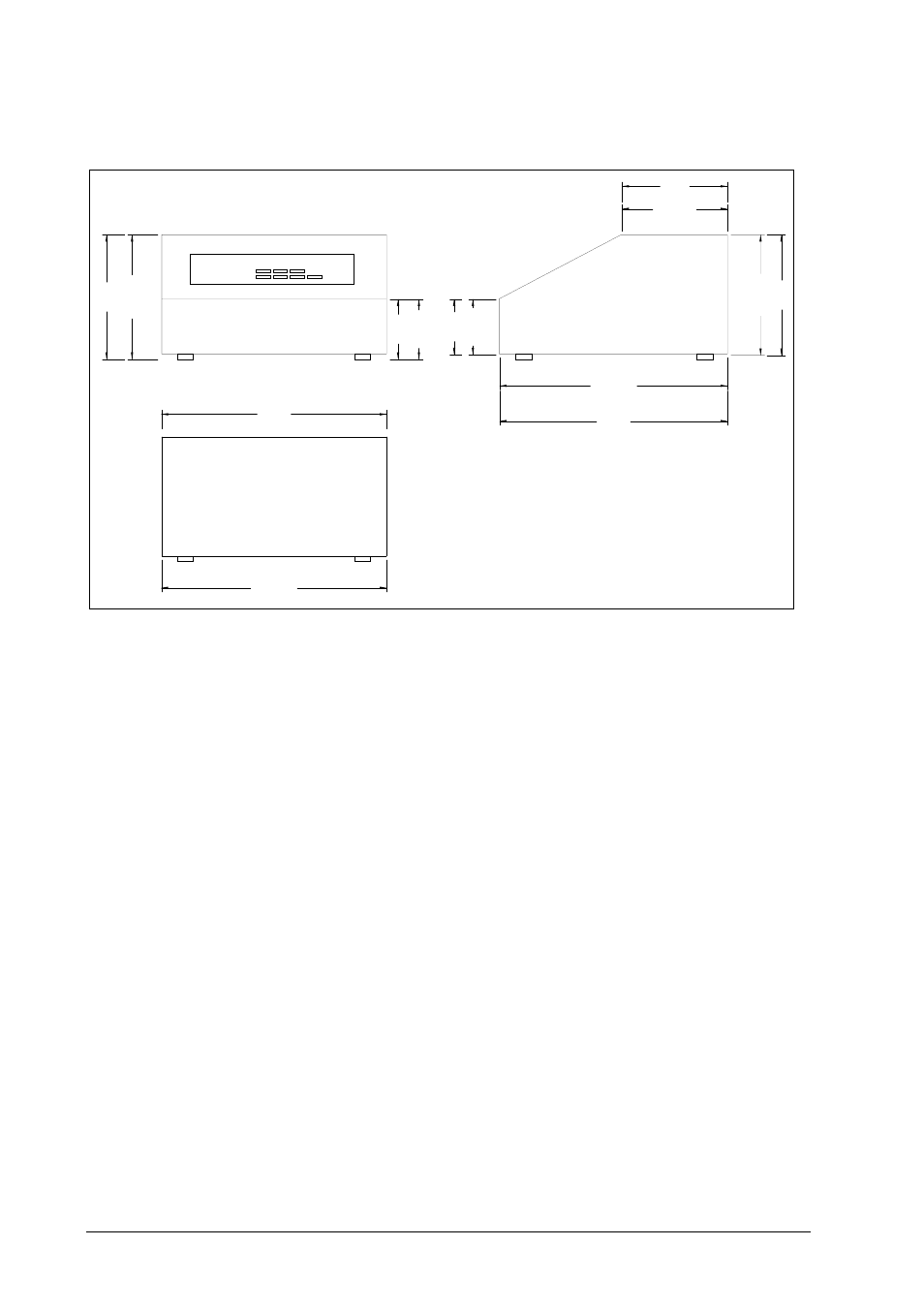

3.1 ANALYZER DIMENSIONS
FRONT VIEW SIDE VIEW
140mm
65mm 83mm
125mm
268mm
158mm
4.9"
10.5"
6.2"
3.2"
5.
2.5"
1637 DIMENSIONS.
265mm
10.4"
REAR VIEW
Case Dimensions
3.2
EARTH, SHIELD AND POWER CONNECTIONS
All external wiring for the 4–20 mA outputs, alarm relays and printer/computer port should be shielded. All earth and
shield connections should be connected to the earth terminal number 47, and the cabinet earth stud.
The mains earth should be connected to a sound electrical earth.
Do not connect shields at the field end. Simply clip off and insulate. An extra terminal strip may be required to connect
all shields together. This should be supplied by the installer.
IMPORTANT
Before connection of mains power check that the mains voltage selector switch is in the correct position. This switch is
inside the front of the cabinet, below the keyboard. Remove the two top, forward screws and swing the front lid
forward carefully, being careful not to stress the ribbon cables.
