3 Installation Model 3190
3-4
Teledyne Analytical Instruments

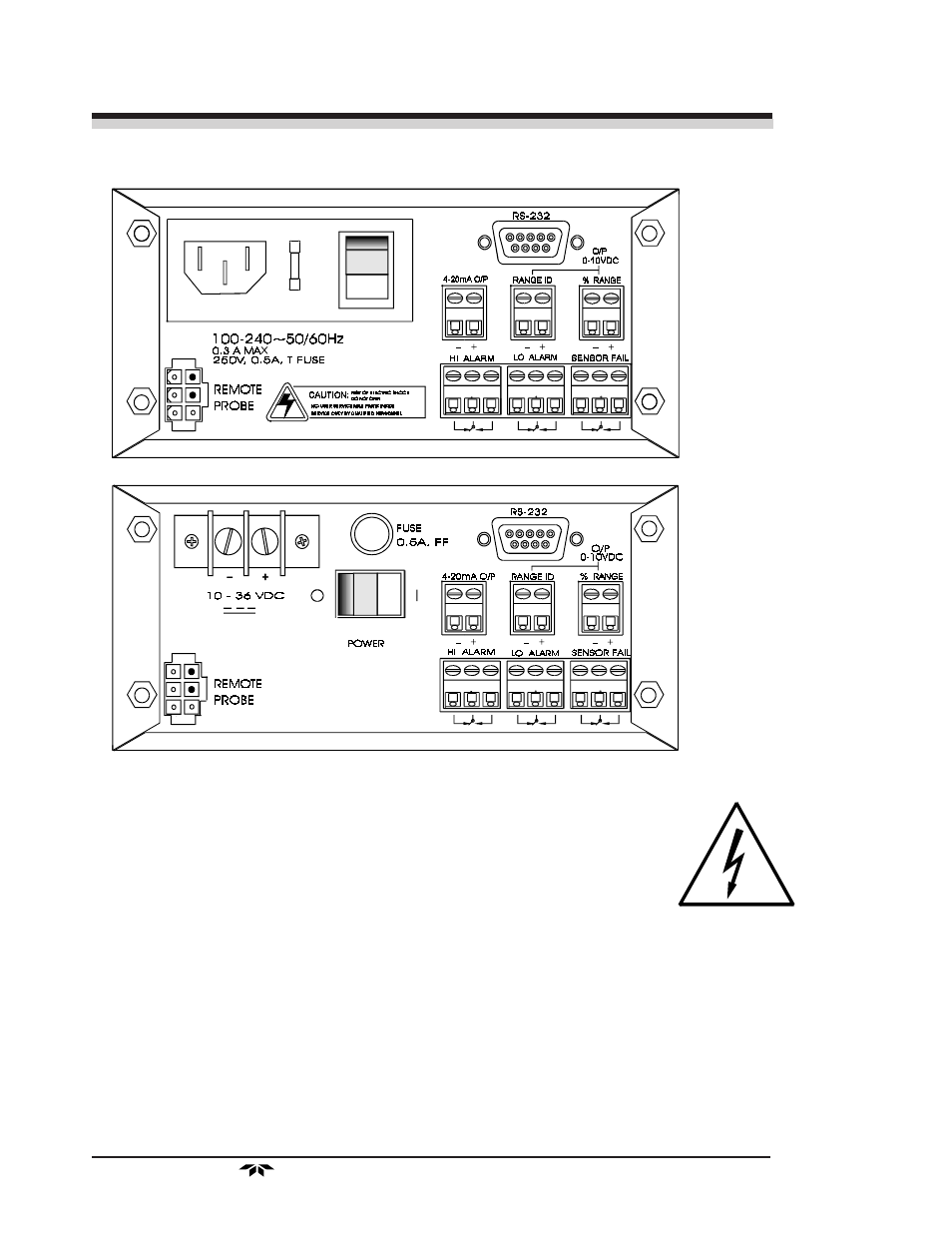

Figure 3-1 Rear Panel Electrical Connectors for AC and DC Units
Primary Input Power (AC version): The power cord receptacle, fuse
block and Power switch are located in the same assembly. A 6-foot, standard
AC power cord is supplied with the Control Unit. Insert the female plug end
of the power cord into the power cord receptacle.
The universal power supply allows direct connection to any 100-240 V ac,
50/60 Hz power source. The fuse block, to the right of the power cord
receptacle, accepts a 5
× 20 mm, 0.5 A, time-lag (T) fuse. (See Fuse Re-
placement in chapter 5, Maintenance.)
The Power switch is located on the right-hand end of the power source
input receptacle assembly.
Primary Input Power (DC version): The 10–36 V dc power is
connected via the + and
− terminals in the upper left corner of the panel. The
