Removing the Thermal Module

1.

See “Removing the Fan” on page 87.

2.

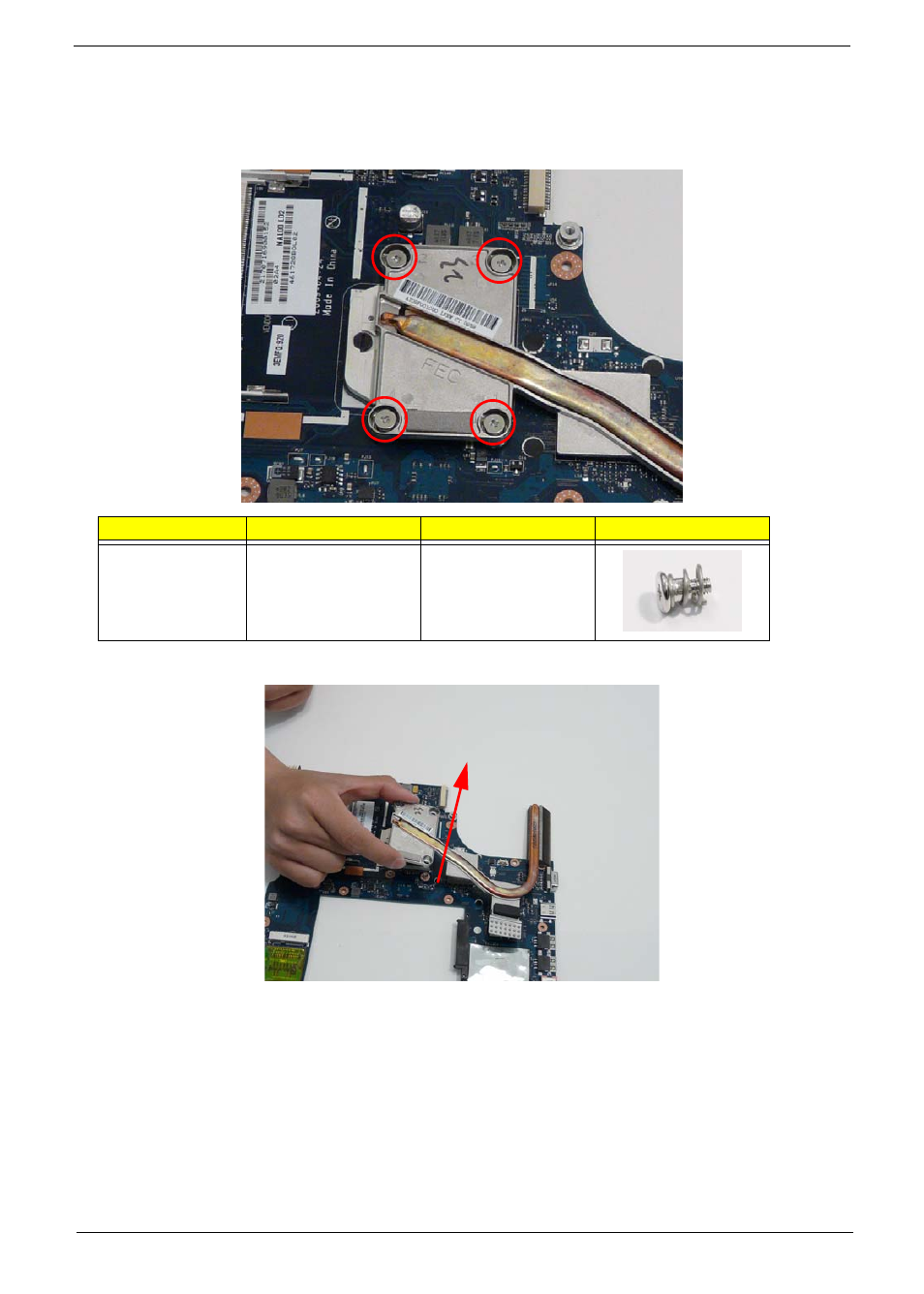

Remove the four screws securing the Thermal Module to the Mainboard in the following order: 1, 2, 3, 4.

3.

Grasp the Thermal Module by the CPU heat sink and lift clear of the Mainboard as shown.

Step

Size

Quantity

Screw Type

Thermal Module

M2.5*6

4

1

2

3

4
