Removing the dc-in cable – Acer 5538 User Manual
Page 91
81
Chapter 3
Removing the DC-In Cable
1.
See “Removing the I/O Board” on page 78.
2.

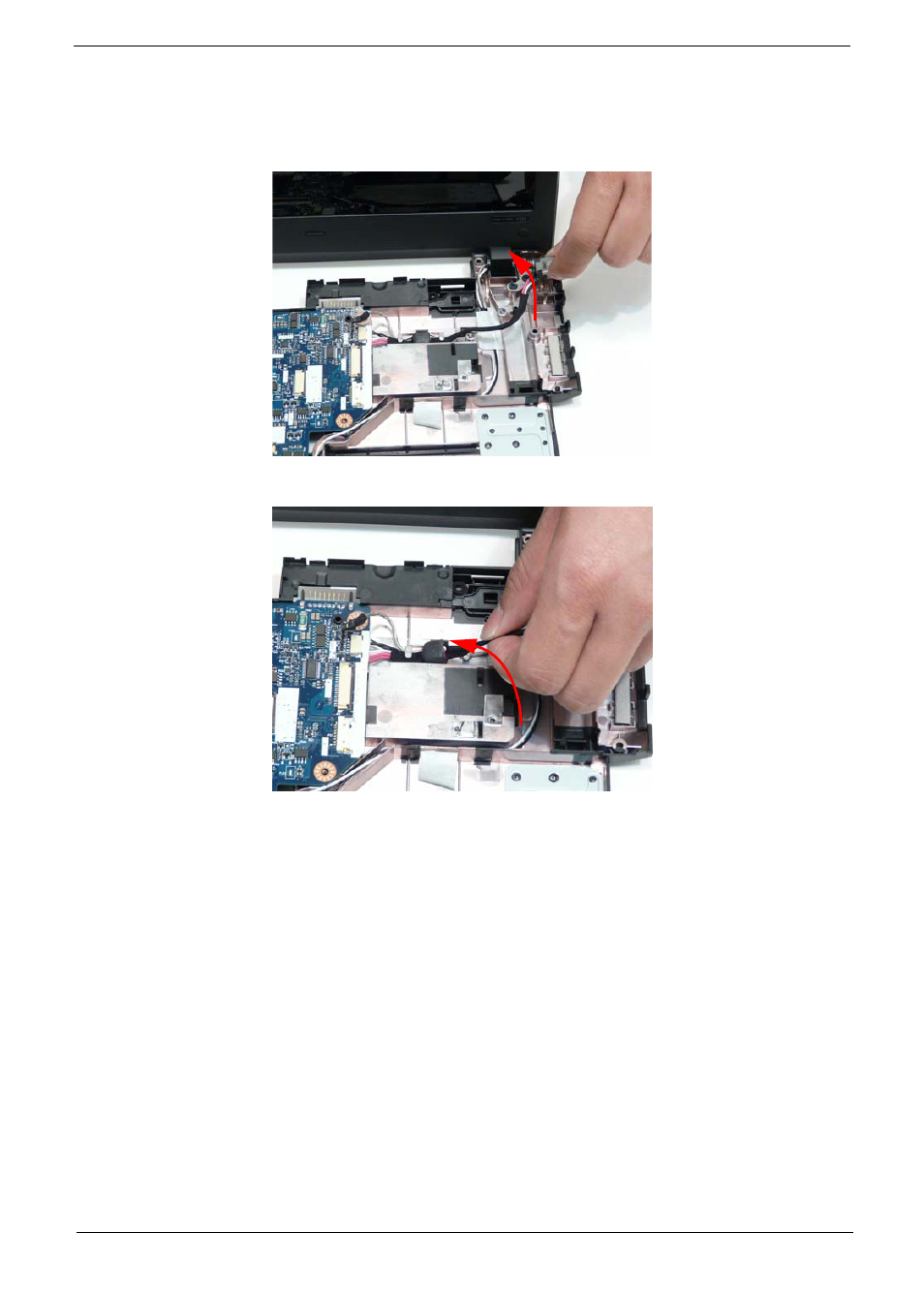

Remove the DC-In Socket from the well on the bottom cover.
3.
Remove the DC cable from the securing clips as shown.
NOTE: If replacing the DC cable, the mainboard must be lifted to access the connector. See “Removing the
