Chapter 3
2.

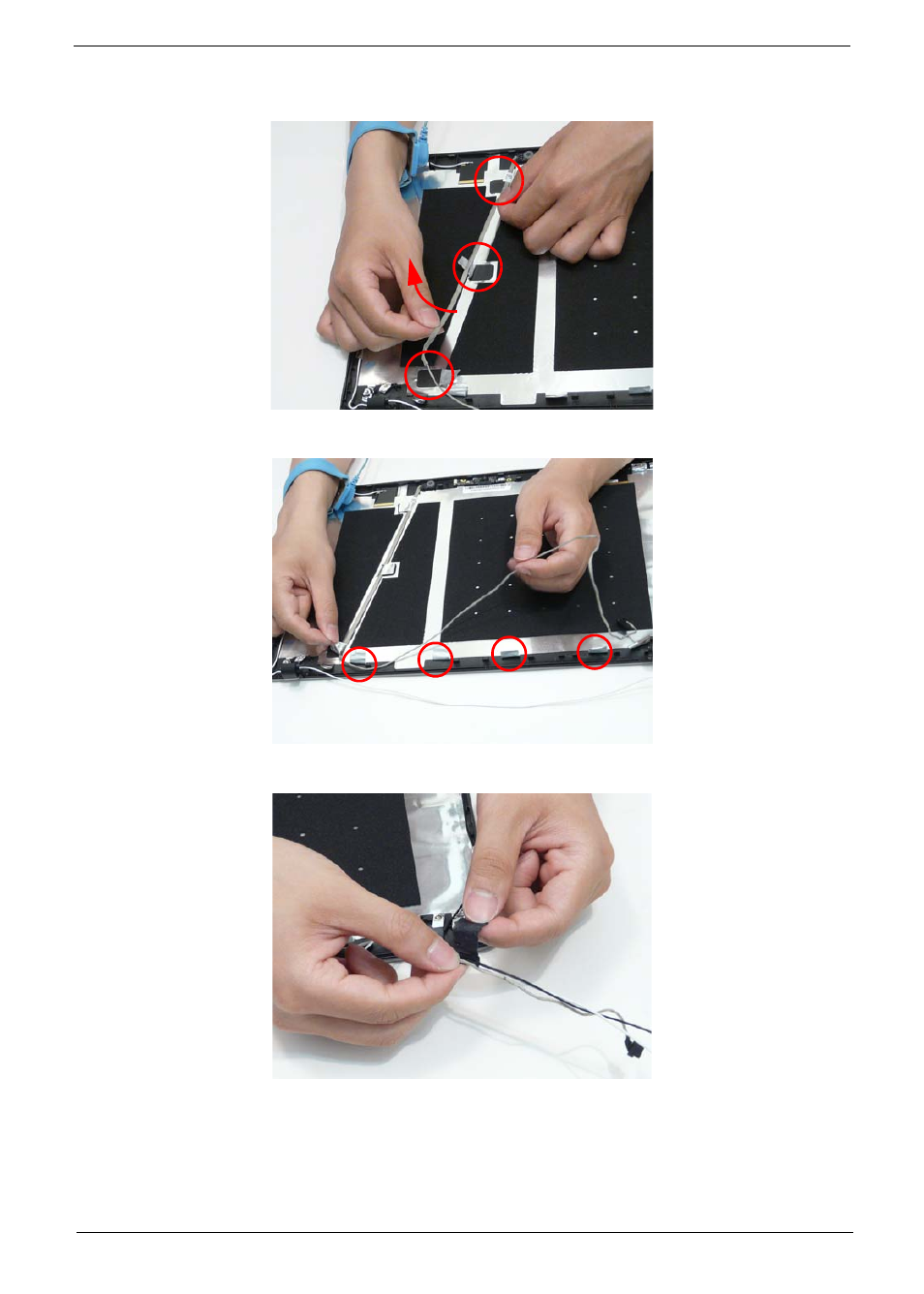

Press the cable onto the LCD cover as shown to secure it in place. Adhere the shielding tabs where they
cover the Microphone cable.
3.
Secure the Microphone cable under the shielding tabs along the bottom edge of the LCD Cover.
4.
Apply tape to secure the Microphone cable to the antenna cables.
